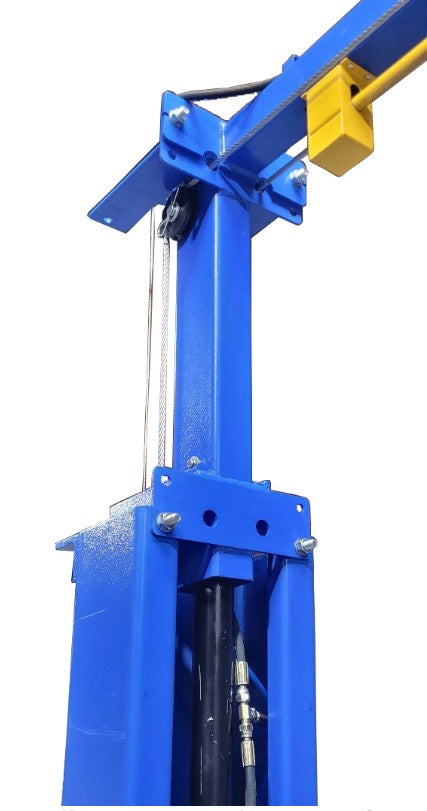

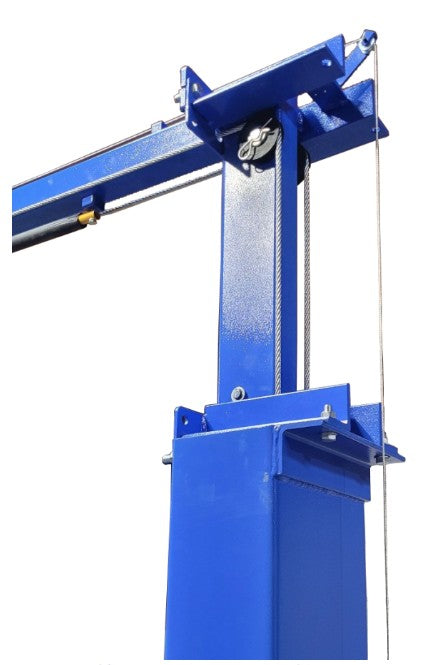

Tuxedo TP11DX-24HTEXTKIT Two Foot Height Extension Kit

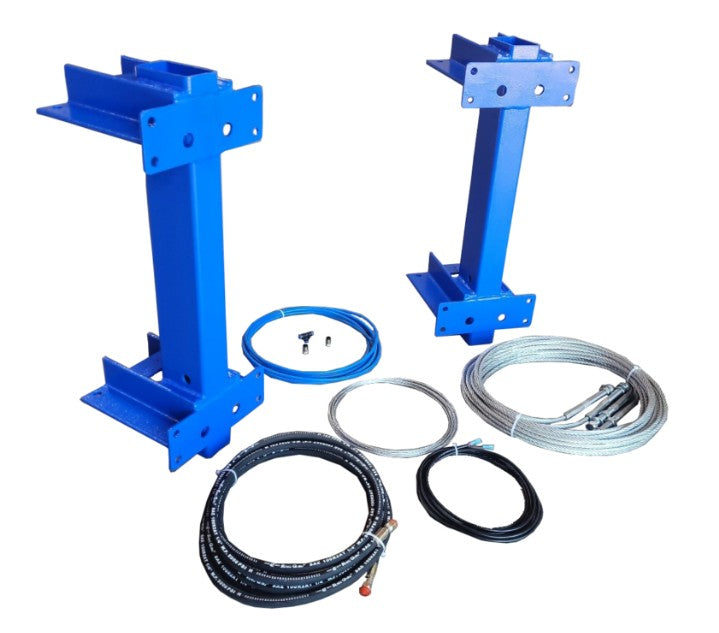

Designed exclusively for the TP11KC-DX lift, the TP11KC-DX ‘Two Foot’ Height Extension Kit adds 24" to the lift columns, increasing the overhead clearance height to 160" providing additional clearance for taller vehicles for expanded service requirements. The TP11DX-24HTEXTKIT includes 24" column extensions, extended-length hydraulic hose, steel cables, latch wire, return line tubing, limit switch cable, and air fittings. Overhead Beam assembly, mounting hardware and pulleys are reused from the TP11KC-DX lift.

Features:

• Designed exclusively for the TP11KC-DX lift model
• Extends clearance height to service taller vehicles
• Adds 24" to lift columns & overhead beam assembly Increases overhead clearance height from 136" to 160"
• Raises overall lift height from 144" to 168"
• Retrofittable for older installed tp11kc-dx lifts Includes all hardware needed including hoses & cables
• Durable powder coat finish

Specifications:

• Ext. Min Ceiling Height | 169" (+24")

• Ext. Overall Lift Height | 168" (+24")

• Ext. Lift Clearance Height | 160" (+24")

• Ship Weight | 183 lbs

• Ship Dims | 13"l x 33"w x 19"h
