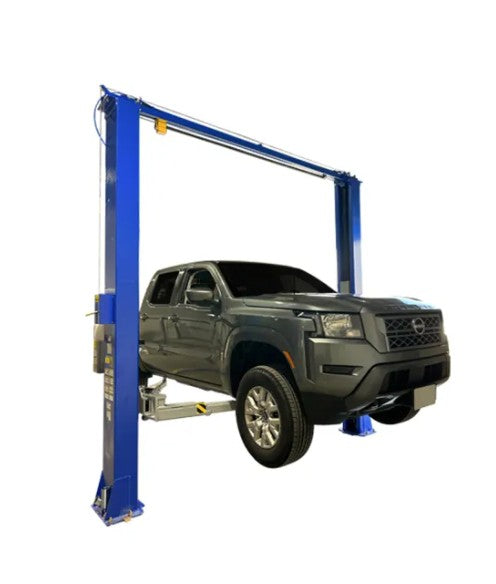

Tuxedo TP 11 KC-DX 2 Post Direct Drive Clear Floor Bi-Symmetric Lift
Engineered and built to offer great features at an economical price, the TP11KC-DX features and designs will make this the most used lift in your garage. With versatile user-friendly Bi-Symmetric configurable arms, 3 Stage Front Arms, Symmetric Columns, Single Point Lock Release, Low Profile Arms, Rubber Door Guards and Spin Up Pads with 2" and 4" Stackable Truck Adapters offers everything you'd expect and more!!
Specifications:
Capacity: 11,000 lbs
Height Overall: 144"
Width Overall w/ Power Unit: 145 - 1/2"
Max. Lift Height: 71"
Min. Pad Height: 4"
Width Between Columns: 116"
Drive Thru Clearance: 104"
Lifting Speed: 50S
Power: 220CV-20Amp-1PH
Ship Weight: 1705 lbs
Features:
- 11,000 lbs lifting capacity
- Direct Drive
- 3 Stage Front Arms
- Asymmetric / Symmetric Arm Configuration
- Symmetric Columns
- Single Point Lock Release
- Low Profile Arms
- Rubber Door Guards
- Spin Up Pads with Stackable Truck Adapters included 2" and 4"
