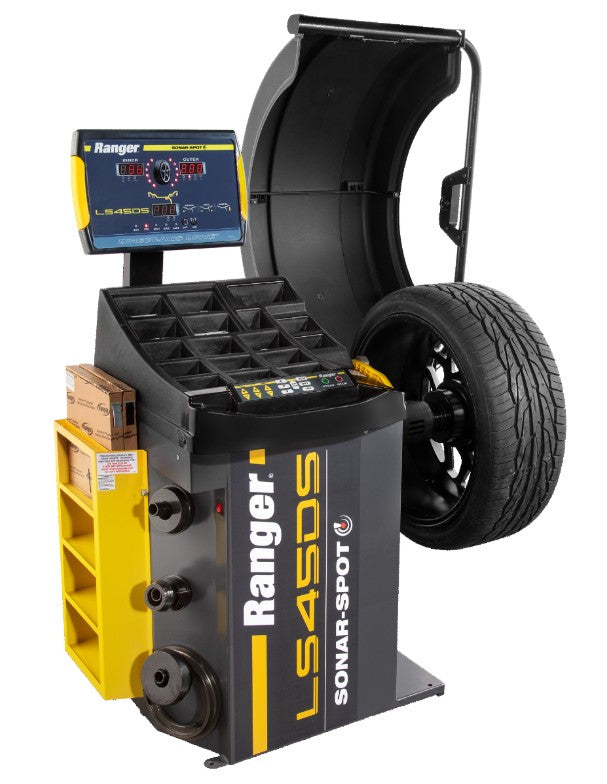

Ranger LS45DS Sonar Wheel Balancer

This product requires a forklift provided by the customer at the shipping destination to offload.

Sonar 3D Laser-Spot Wheel Balancer / Includes Flange Press Plate / 208-240V

The Ranger LS45DS Sonar Wheel Balancer is the latest innovation in wheel balancing technology, designed to revolutionize the way automotive shops approach balancing jobs. From its advanced 3D Auto Data Entry for wheel parameter settings to its Laser-Spot technology for precise wheel weight placement, the LS45DS brings a level of speed, accuracy, and user-friendliness that makes it indispensable for high-volume and specialty shops alike. Handling wheels 12" to 24" in diameter, this isn’t just another wheel balancer—it's a complete system engineered to maximize productivity, minimize mistakes, and enhance customer satisfaction.

Features:

• Dynamic, static, aluminum, HID (hidden) balancing

• Multi-user save function holds presets to increase productivity

• 3D Auto Data Entry for wheel parameter settings

• Laser-Spot technology for precise wheel weight placement

• Side-position brake holds wheels at precisely 12 o’clock or 6 o’clock for proper weight placement

• Open-side hood design allows for a broader coverage of tire shapes and sizes

• Ergonomic control board and easy to read LED display

• Automatic rolling wheel parameter setting feature saves time, minimizes errors

• Low-RPM balancing speed

• Rapid 7-second cycle time

• Automatic braking

• Gram/ounce selection and millimeter/inch selection

• Automatic round-off with top-dead-center weight position indicator

• Tiered weight placement indicators help identify out-of-sight position weight placements (such as split-weight or hidden “behind-the-spoke” techniques)

• Manual or automatic start when hood is lowered

• Self-calibration function

• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools

• Side shelf with built-in weight dispenser accommodates Ranger Quick-Peel adhesive tape weight convenient bulk rolls

• Precision-machined, hardened-steel 40 mm shaft

• Quick-release hub nut for dramatically reduced set-up times

• Side cone storage pegs keep accessories readily available

Specifications:

• Motor | 220 VAC, 3A, 50/60 Hz, 1 Ph, 0.55kW

• Drive system | Belt Drive

• Working temperature | 27°F – 82°F (-5°C – 50°C)

• Operating temperature | 41°F – 122°F (5°C – 50°C)

• Balancing modes | 1 dynamic / 1 static / 3 aluminum alloy / 1 hidden

• Maximum tire diameter | 43" (1092 mm)

• Maximum wheel weight | 145 lbs. (65 kg)

• Max. wheel diameter | 12" – 24" (305 mm – 610 mm)

• Wheel width capacity | 4" – 20" (102 mm – 508 mm)

• Balancing increments | 0.01 oz (0.25 grams) or 0.25 oz

• Accuracy | ± .035 oz (1 gram)

• Resolution | .25 oz (5 grams)

• Balancing speed | 180 RPM

• Top weight locator (12 o’clock) | Standard

• Bottom weight locator (6 o’clock) | Standard

• Height, Guard Up | 66" (1,676 mm)

• Height, Guard Down | 53" (1,346 mm)

• Width | 54" (1,371 mm)

• Depth, Cover Up | 39" (990 mm)

• Depth, Cover Down | 40" (1,016 mm)

• Power Cord Length | 63" (1,600 mm)

• Inside & outside measuring | Standard

• Millimeter / inches selection | Standard

• Ounce / gram selection | Standard

• Wheel offset distance setting | Manual

• Self-calibration function | Standard

• Auto start | Standard

• Wheel spin braking | Automatic / Electronic

• Wheel holding manual brake pedal | Standard

• Centering cones included | 3 Standard / 1 Truck

• Wheel calipers | Standard

• Rear cone mount spring | Standard

• No-mar rear cone mount pressure cup | Standard

• Quick-release & mount hub nut | Standard

• Shipping Weight | 418 lbs. (190 kg)

• Shipping Dimensions | 44" x 30" x 46" (1,117 mm x 762 mm x 1,168 mm)
