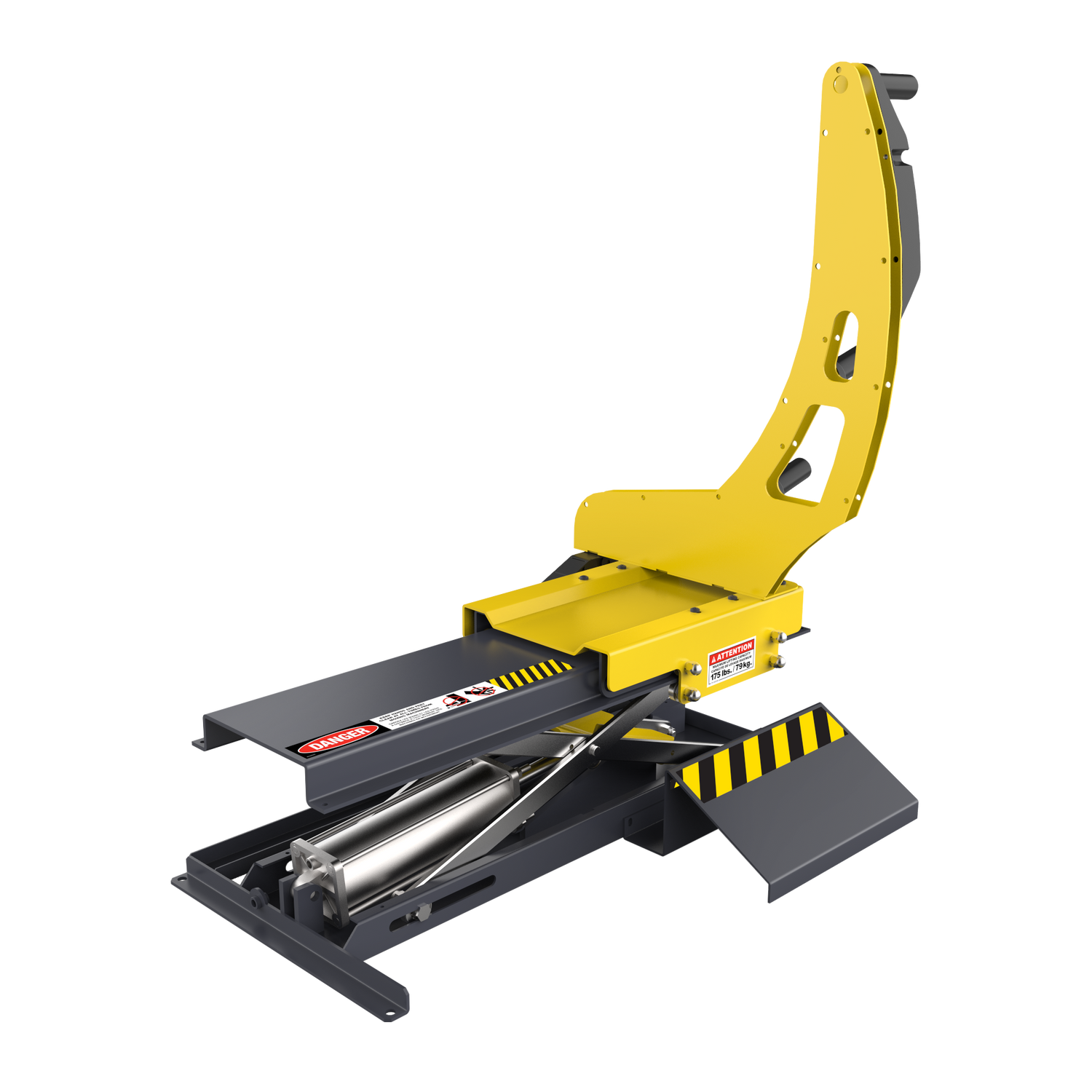

Ranger RWL175 Pneumatic Wheel Lift, 175 Lb Capacity

The Ranger RWL175 Pneumatic Wheel Lift is a compact, air-operated wheel lift built to raise and support heavy tire and wheel assemblies up to 175 lbs. so technicians can mount them on a wheel balancer without straining their back, shoulders, or patience. Modern wheels are bigger, wider, and heavier than ever, and manually wrestling them onto a balancer shaft is a recipe for fatigue, damaged rims, and avoidable injuries. The RWL175 turns that daily problem into a smooth, controlled process.

Works with models DST30PX, DST2420X AND LS45DS

Features:

• 175 lb. capacity to handle heavy wheel and tire assemblies

• Pneumatic-assisted lifting uses shop air to raise and lower with minimal effort

• One-technician operation for safer, faster wheel mounting without extra help

• Universal compatibility works with all wheel balancer brands and models

• Precision alignment platform helps line up the wheel with the balancer spindle

• Platform slide for accurate positioning onto the balancer shaft

• Ideal for lug-centric mounting supports heavy wheels during lug adapter installation

• Cone hangers included keep cones and locking nuts organized and within reach

• Heavy-duty steel construction for long-term shop durability

• Compact, low-profile design fits neatly in front of most wheel balancers

• Reduces fatigue and injury risk by eliminating manual heavy lifting

• Boosts productivity with faster wheel loading and quicker balancing

Specifications:

• Max Weight | 175 lbs. (79 kg)

• Lowered Height (Tire Platform) | 5.5" (139 mm)

• Max Lifting Height | 15.75" (400 mm)

• Max Horizontal Travel | 22.75" (577 mm)

• Lifting Time | 4+ Seconds

• Air Pressure | 94 - 116 psi (6.5 - 8 Bar)

• Air Flow | 27.47 cfm (778 lpm)

• Noise Volume | ≤ 75 dB

• Product Dimensions | 32" x 22.5" x 38.5" (800mm x 570mm x 980mm)

• Shipping Weight | 117 lbs. (53 kg)
