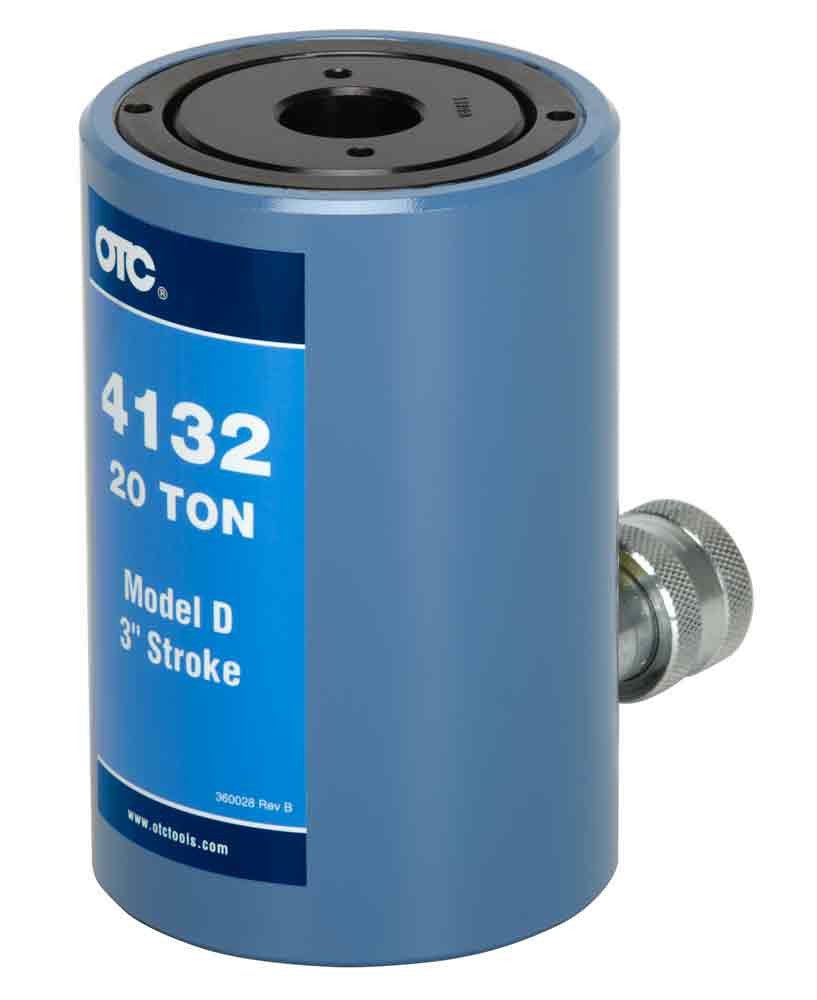

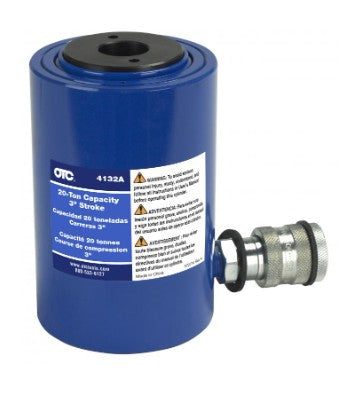

OTC 4132A 20 Ton Spring Return Hollow Center Hydraulic Ram

Similar to Power Team RH203

The OTC 4132A 20 Ton Ram is ideal for push/pull applications found in off-highway, construction, mining and other industries where heavy equipment is maintained.

Features:

• Center hole permits extending screws, cables, etc., straight through the ram for versatility of application.
• Rams withstand full "dead-end" loads.
• Chrome-plated piston rods resist wear, and superior packings and seals provide high cycle life without leakage.
• Piston head inserts are interchangeable for versatility.
• Tapped base mounting holes provide easy installation in fixed applications.

Specifications:

• Cylinder Capacity (Tons) | 20
• Stroke (in.) | 3
• Retracted Height (in.) | 6 1/8
• Extended Height (in.) | 8 1/8
• Outside Diameter (in.) | 3 7/8
• Piston Rod Diameter (in.) | 2 1/8
• Center Hole Diameter (in.) | 1 5/64
• Inches Between Base Holes | 3 1/4
• Insert Thread Size (in.) | 1 9/16 - 16
• Collar Thread (in.) | None
• Thread Length (in.) | None
• Oil Capacity (cu. in.) | 9.45
• Internal Press at Capacity (PSI) | 8,466
• Tons at 10,000 PSI | 23.6
• Base to Inlet Port (in.) | 1
• Mounting Holes (in.) | 3/8 - 16
• Base Cylinder Eff. Area (sq. in.) | 4.72
• Dimensions | 6.63 × 4 × 6
• Weight | 19 lb

Other Available Options, Sold Separately:

• OTC 4131 | 10 Ton Hydraulic Ram
• OTC 4139 | 30 Ton Hydraulic Ram
• OTC 4140 | 60 Ton Hydraulic Ram
