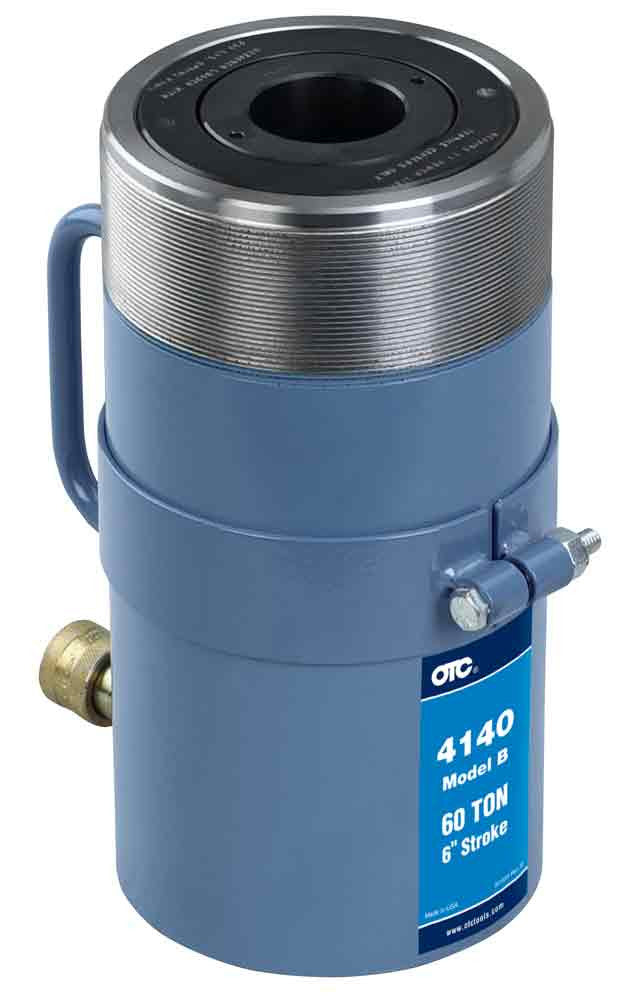

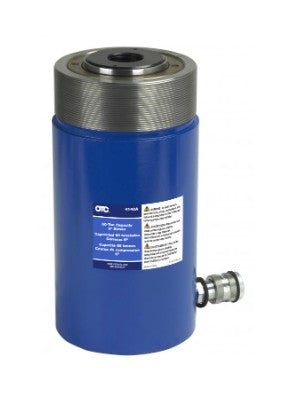

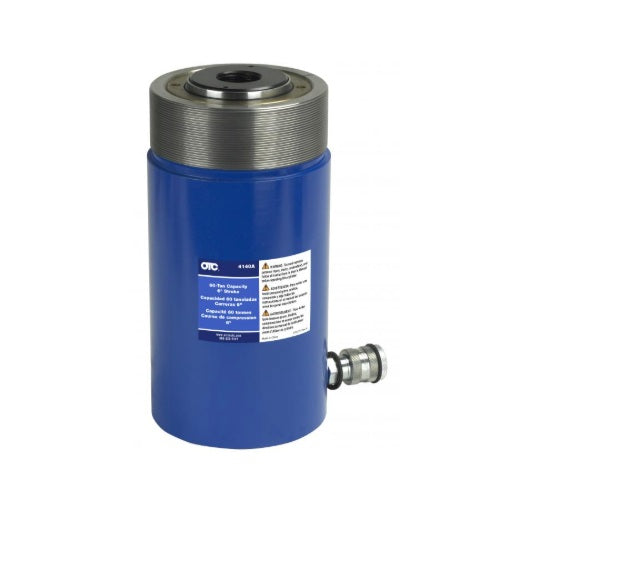

OTC 4140A 60 Ton Spring-Return Hollow Center Hydraulic Ram

REPLACES OTC 4140.

Similar to Power Team RH606 and BVA HC6006T

The OTC 4140A 60 Ton Ram is ideal for push/pull applications found in off-highway, construction, mining and other industries where heavy equipment is maintained.

Features:

• Center hole permits extending screws, cables, etc., straight through the ram for versatility of application.
• Rams withstand full "dead-end" loads.
• Chrome-plated piston rods resist wear, and superior packing and seals provide high cycle life without leakage.
• Piston head inserts are interchangeable for versatility.
• Tapped base mounting holes provide easy installation in fixed applications.

Specifications:

• Cylinder Capacity (Tons) | 60
• Stroke (in.) | 6
• Retracted Height (in.) | 12 1/4
• Extended Height (in.) | 18 1/4
• Outside Diameter (in.) | 6 1/4
• Piston Rod Diameter (in.) | 3 19/32
• Center Hole Diameter (in.) | 2 1/8
• Inches Between Base Holes | 5 1/8
• Insert Thread Size (in.) | 3 - 12
• Collar Thread (in.) | 6 1/4 - 12
• Thread Length (in.) | 2 1/2
• Oil Capacity (cu. in.) | 73.86
• Internal Press at Capacity (PSI) | 9,750
• Tons at 10,000 PSI | 61.6
• Base to Inlet Port (in.) | 1
• Mounting Holes (in.) | 1/2 - 13
• Base Cylinder Eff. Area (sq. in.) | 12.31
• Dimensions | 9.13 × 6.5 × 12.77

• Weight | 86.56 lb
