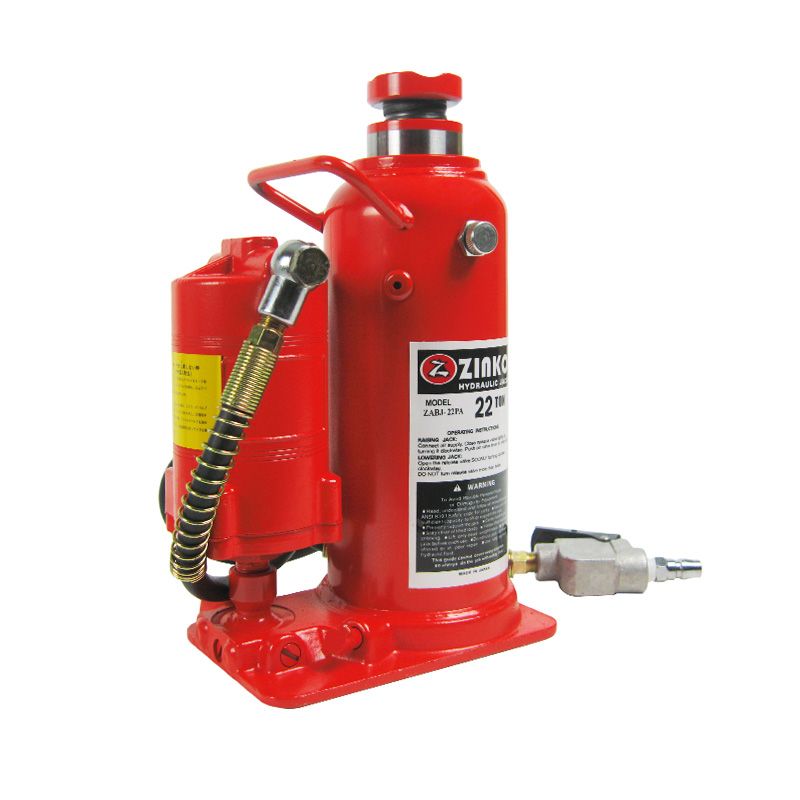

ZINKO ZABJ-22PA 22 Ton Air Hydraulic Bottle Jack

Air Hydraulic Bottle Jack. 22 ton, Air Pressure Range 40-140 psi. Turn ordinary manual bottle jack power into air-hydraulic power. When connected to your shops air lines, these versatile jacks can safely deliver lifting power with the ease of a button to lift heavy beams, machines, platforms, and other objects.

Features:

• Welded steel construction throughout - reduces metal fatigue allowing for a longer life.
• Forged steel base increases resistance to high pressure and also increases durability.
• Oil bypass system prevents the lifting ram from over extending.
• Safety valve device protects hydraulic system from overload damage.

Specifications:

• Lift Time by Air Supply - No Load | 50

• Lift Time by Air Supply - Load | 195

• Air Pressure Range (psi) | 80 - 140

• Minimum Height | 10.5"

• Ram Lift | 6"

• Screw Extension | 3'

• Maximum Heights | 19.5"

• Weight | 36 lbs
