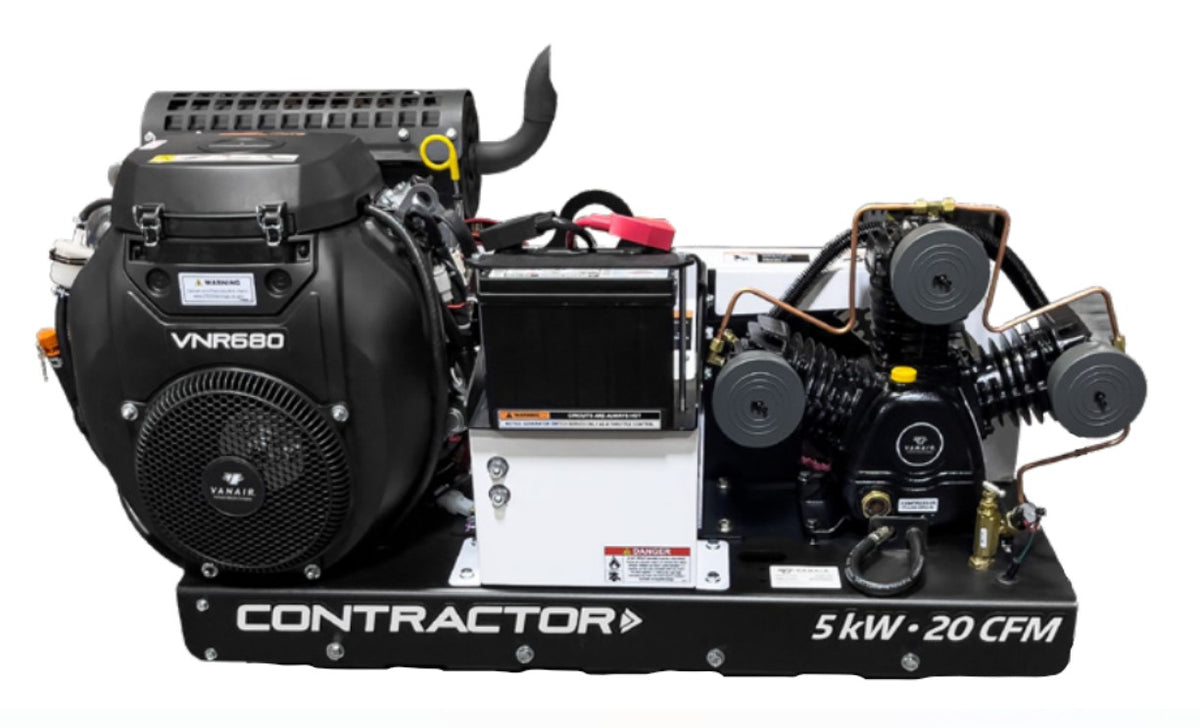

Vanair Contractor 052582 20 CFM Electric Start Air Compressor

Previous model 050713

Rugged, dependable, and easily transportable, the Vanair Contractor provides you with 20 CFM of air power and 5kW of peak AC generator power for all your tough job site needs. Available with a control panel on the unit with two outlets or a remote mountable control panel for effortless and convenient accessibility.

Features:

• Auto throttle control on air compressor

• Reliable and easy starting engines

• Heavy-duty belt-drive system for anti-vibration & long service intervals

• Totally self-contained, but can be integrated with the chassis for maximum versatility

• Integrated lift hook & battery tray

• Designed for easy maintenance & fuel efficiency

Specifications:

• Engine | 16 HP

• Compressor Type | Reciprocating

• Generator Wattage | 4.2 kW Continuous 120V/240V

• Max Pressure PSI | 150 PSI

• CFM Rating | 20 CFM

• Drive System | Heavy Duty Belt

• Fuel Capacity | 1.9 Gal.

• Unit Dimensions | 51"L x 18"W x 22"H
• Dry Weight (Lbs.) | 304-550 Depending on Platform

Engine:

• Vanair VNR460VEI, 16 HP

• Electric start

• Electronic governor for quick throttle response & precise stability

• Electronic fuel injection technology standard on Vanair VNR460VEI, 16 HP engine

Compressor:

• Reciprocating compressor

• 20 CFM at up to 150 PSI max (factory set @ 125 PSI)

• Cast iron air pump with 3 cylinder head design for better cooling

• Single stage, splash lubricated, with built-in head unloaders

• Stainless steel braided discharge line

• Compressor Capacity 20 CFM at up to 150 PSI max. Factory set to 125 PSI.

Generator:

• 4.2kW continuous @ 60Hz

• Independent AC power for safe multi-functioning

• Brushless design

• Smooth wave for minimal distortion

• 120V & 240V outlets provided

• Copper windings

• Bi-directional rotation

• Pure sine wave <6% distortion

• Single Phase

Fuel Capacity:

• 1.9 gallon

Battery:

• 12V sealed lead acid – per DOT specification 49 CFR 173.159

Engine:

• Vanair VNR460VEI

• Single Cylinder

• Electric Start gasoline engine

• Air cooled

• 16HP

• Electronic fuel injected

• Automatic electronic throttle control

Control Panel:

• Panel to include 120V and 240V receptacles, voltmeter, thermal breakers and generator ON/OFF switch.

Drive System:

• Heavy-duty belt-drive system with self-cooling, self-cleaning link belts. Belt is made of a custom-designed, high-tech polyurethane/polyester composite with an operating temperature range of -40ºF to +240ºF.

Metal and Tanks:

• 1/4" plate steel main frame, integrated lift hook and full-service access.

Warranty:

• The air compressor/generator unit shall be warranted for three (3) years when following the prescribed maintenance schedule. This warranty does not cover damage caused by accident, misuse, or negligence. If the unit is disassembled, the warranty is void.

Standard Service Kits and Oil (Sold Separately):

• KIT1536 | Engine Service Kit, Vanair, PM Kit, VNR460, Initial 20 Hour, 100 Hour or annual
• KIT1156 | Compressor Service Kit (3 Air Filters and 1 Quart of Vanguard Reciprocating Oil)
• 271856-1GAL | Vanguard Reciprocating Compressor Oil (One Gallon)
• 271856-1QT | Vanguard Reciprocating Compressor Oil (One Quart)

Options and Accessories (Sold Separately):

• MA269944 | Battery Cable Quick Disconnect (for use with MA269945)
• MA269945-08 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 8')
• MA269945-12 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 12')
• MA269945-16 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 16')
• MA269945-20 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 20')
• MA269945-24 | Battery Cable Extension, Two Gauge Positive and Negative (For Connection to Chassis Battery - 24')
• 264493 | Filter Lubricator (FLR) 1/2"
• OA92937 | Remote Condensation Drain
• 269602 | Hose Reel - for 1/2" Hose 50' (With High Temperature Hose and Ball Stop)
• 263355 | Hose Reel - for 3/8" Hose 50' (With High Temperature Hose and Ball Stop)
• KIT1202 | Vibration Isolator Kit, 1/2"
• MA272577 | OSHA Valve up to 47 CFM 3/8" (Excess Flow Safety Valve)

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
• Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
