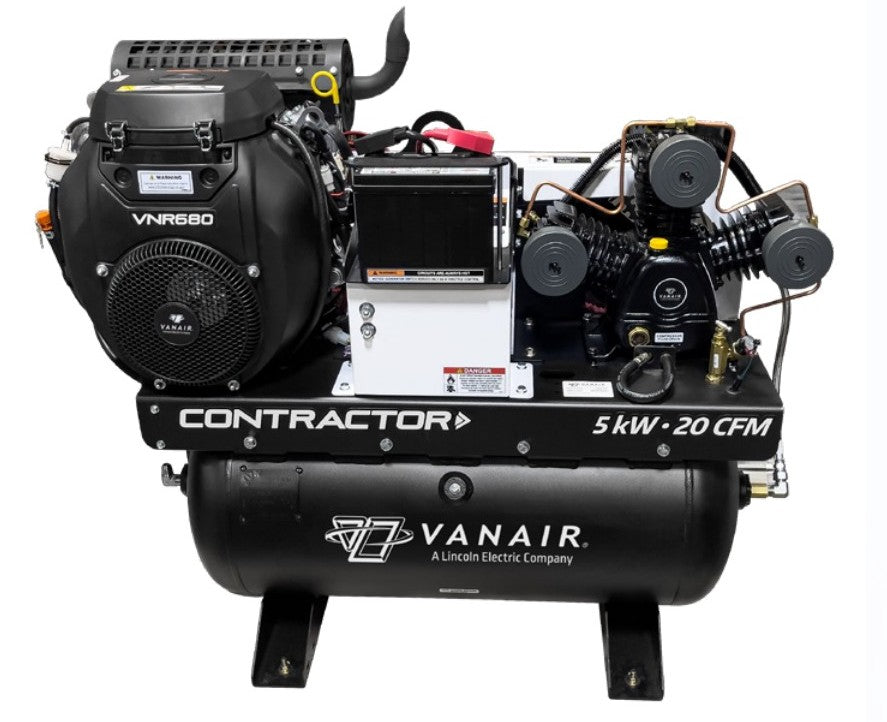

Vanair Contractor 050687 20 CFM, 5kW, 30 Gallon Air Tank, Electric Start, 20 HP Vanair

Rugged, dependable, and easily transportable, the Vanair Contractor provides you with 20 CFM of air power and 5kW of peak AC generator power for all your tough job site needs. Available with a control panel on the unit with two outlets or a remote mountable control panel for effortless and convenient accessibility.

Features:

• Auto throttle control on air compressor

• Reliable and easy starting engines

• Heavy-duty belt-drive system for anti-vibration & long service intervals

• Totally self-contained, but can be integrated with the chassis for maximum versatility

• Integrated lift hook & battery tray

• Designed for easy maintenance & fuel efficiency

• 30 gal air tank

Engine:

• Vanair VNR680, 20 HP

• Electric start

• Electronic governor for quick throttle response & precise stability

Compressor:

• Reciprocating compressor

• 20 CFM, 150 PSI max (factory set @ 125 PSI)

• Cast iron air pump with 3 cylinder head design for better cooling

• Single stage, splash lubricated, with built-in head unloaders

• Stainless steel braided discharge line

• Compressor Capacity 20 CFM at up to 150 PSI max. Factory set to 125 PSI.

Generator:

• 4.2kW continuous @ 60Hz

• Independent AC power for safe multi-functioning

• Brushless design

• Smooth wave for minimal distortion

• 120V & 240V outlets provided

• Copper windings

• Bi-directional rotation

• Pure sine wave <6% distortion

• Single Phase

Fuel Capacity:

• 11.5 gallon

Battery:

• 12V sealed lead acid – per DOT specification 49 CFR 173.159

Remote Control Panel:

• Provides ultimate user convenience & safety

• All functions accessible at panel

• Harness options available

Engine:

• Vanair VNR680

• Single Cylinder

• Electric Start gasoline engine

• Air cooled

• 20 HP

• Electronic fuel injected

• Automatic electronic throttle control

Air Tank:

• 30 gallon capacity

• ASME/CRN certification on appropriately sized tanks

• Includes pressure gauge, ball valve, pressure relief valve and condensation drain

Specifications:

• Engine | 20 HP

• Compressor Type | Reciprocating

• Generator Wattage | 4.2 kW Continuous 120V/240V

• Max Pressure PSI | 150 PSI

• CFM Rating | 20 CFM

• Drive System | Heavy Duty Belt

• Fuel Capacity | 11.5 Gal

• Unit Dimensions | 48"L x 22"W x 42"H

• Dry Weight (Lbs.) | 304-550 Depending on Platform

Standard Service Kits and Oil (Sold Separately):

• KIT1504 | Engine Service Kit for Vanair VNR680 20 HP (2 Quarts Oil, Air Filter and PreFilter)

• KIT1156 | Compressor Service Kit (3 Air Filters and 1 Quart of Vanguard Reciprocating Oil)

• 271856-1GAL | Vanguard Reciprocating Compressor Oil (One Gallon)

• 271856-1QT | Vanguard Reciprocating Compressor Oil (One Quart)
