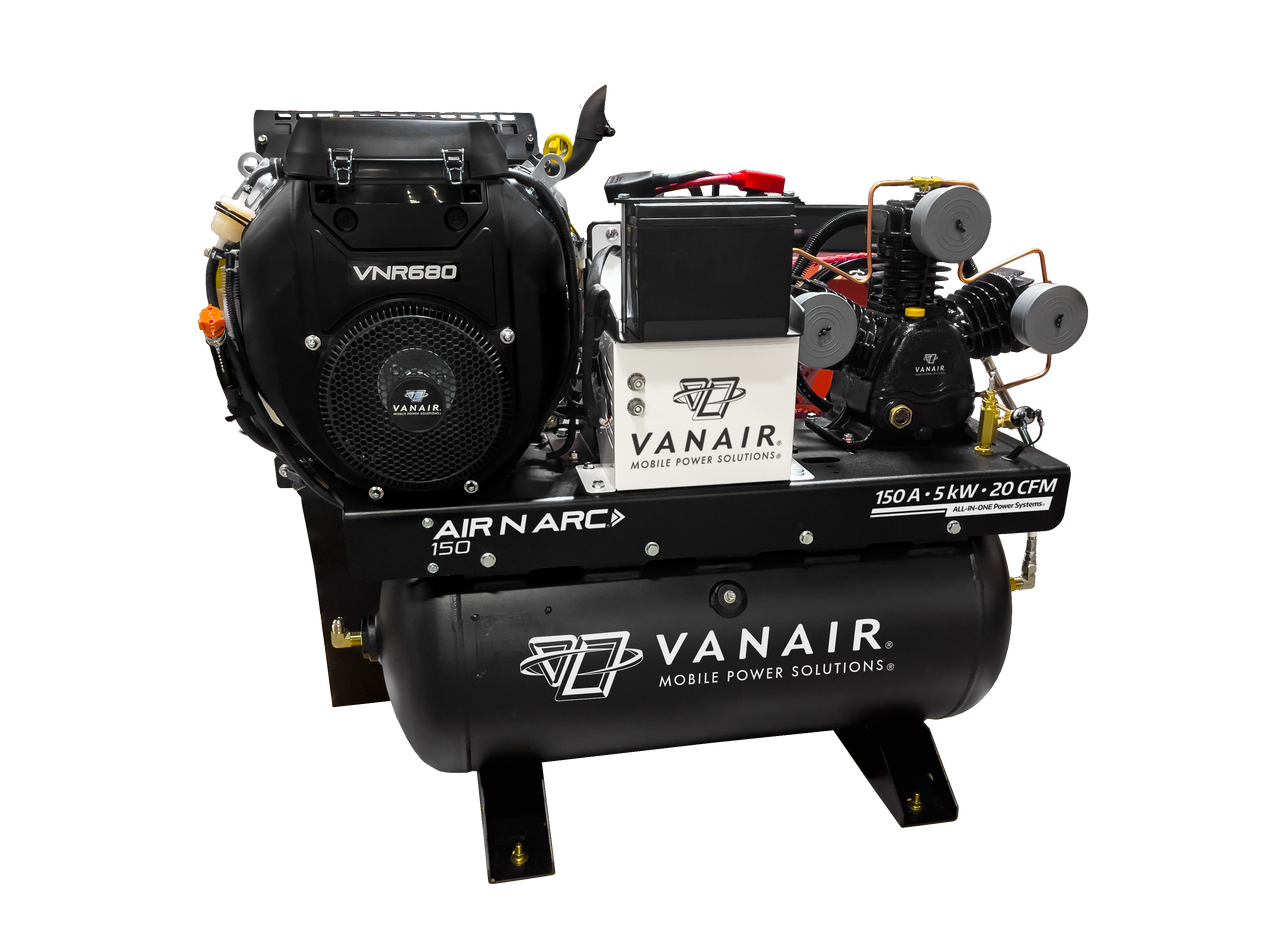

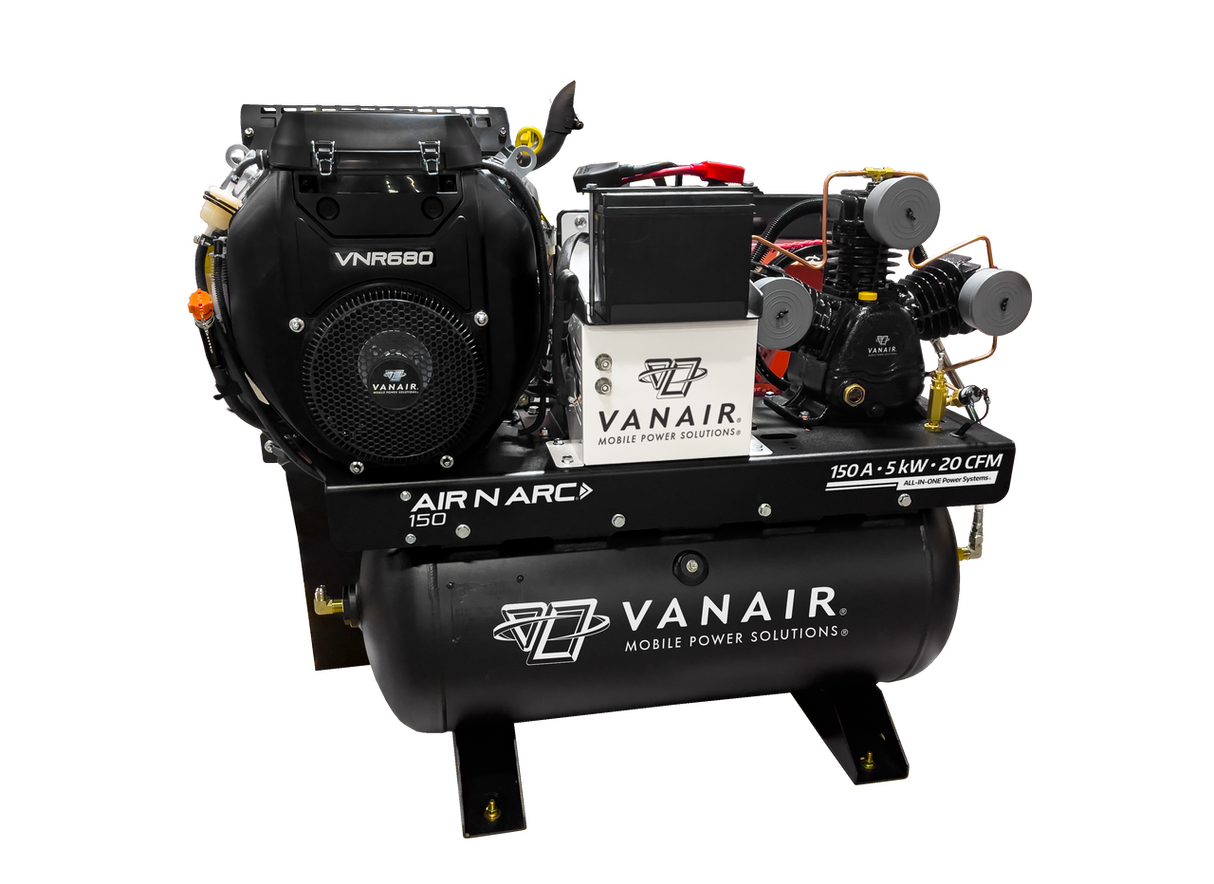

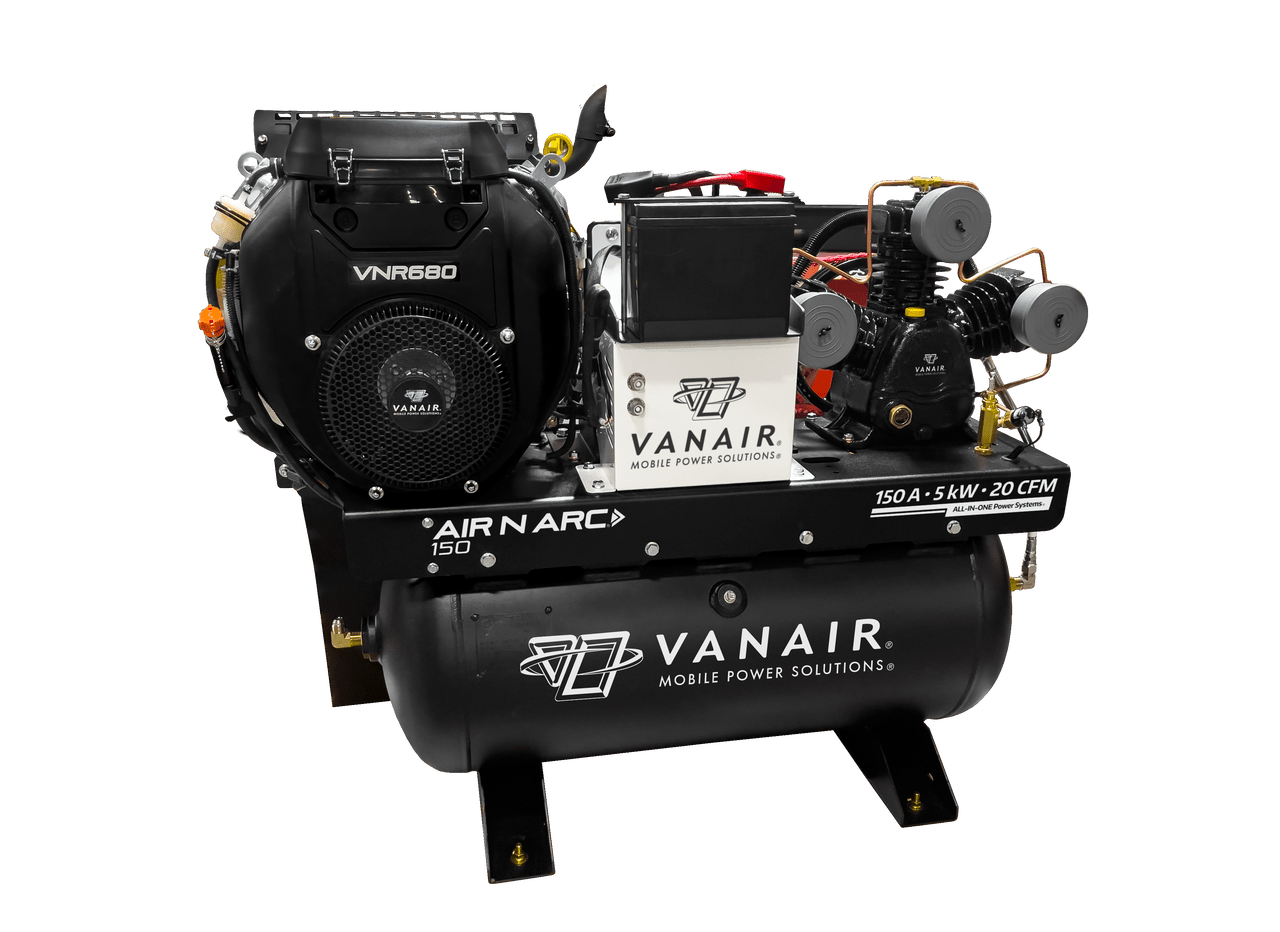

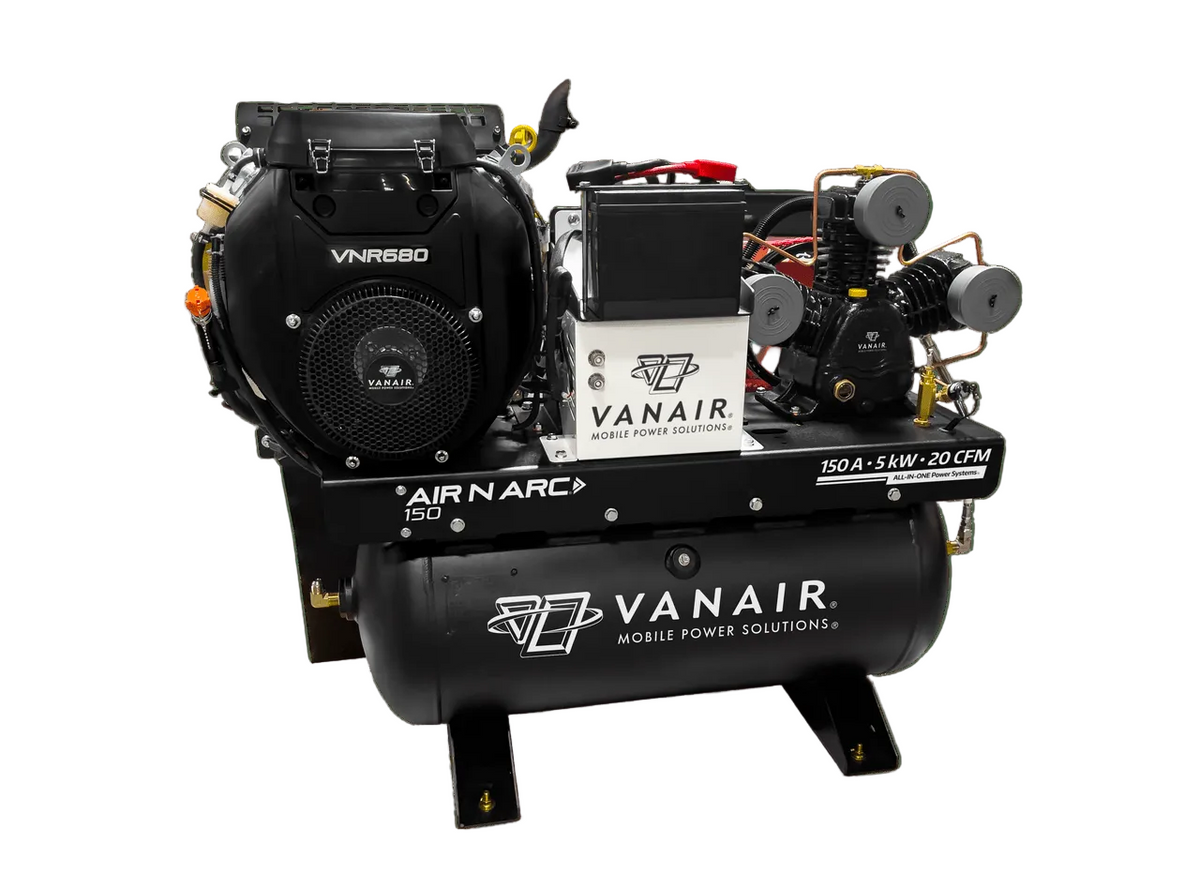

Vanair 050680 Air N Arc 150 ALL-IN-ONE Power System

The Air N Arc 150 provides you with up to five forms of power in one compact and economic unit, allowing you to save space and weight on your vehicle. Providing up to 20 CFM and 150 PSI, along with up to 150A of welding power, the Air N Arc 150 is available in multiple configurations to meet your mounting needs.

Features:

• Fuel System can be Integrated with the Chassis
• Powder Coated Sheet Metal for Protection
• 100% Duty High Frequency Welder Offering Excellent Weld Characteristics
• Galvanized Steel Metal

Specifications:

• Engine | Vanair VNR680, 20 HP

• Compressor Type | Reciprocating

• CFM Rating | 20 CFM

• Max Pressure | 150 PSI

• Generator Wattage | 5 kW Peak, 4.2 kW Continuous, AC Power, 60 Hz, Single Phase, 120V and 240V Outlets

• Drive System | Belt Driven

• Fuel Capacity | 11.5 gal

• Dimensions | 47.8"L x 22.8"W 41.8"H

• Dry Weight (lbs) | 290-487 depending on platform

Engine:

• Vanair VNR680, 20 HP

• Electric start

• Electronic governor for quick throttle response & precise stability

Air Compressor:

• Reciprocating compressor

• 20 CFM, 150 PSI max (factory set @ 125 PSI)

• Cast iron air pump with three cylinder head design for better cooling

Generator:

• 4.2kW continuous @ 60Hz

• True two-generator system for safe multi-functioning of welder & electric tools

• Brushless AC design

• Smooth wave for minimal distortion

• 120V & 240V outlets provided

Welder:

• CC: 40-150A, CV: 15-30V

• 100% variable completely controllable

• Independent welding generator

• Safe multi-function

• Auto throttle control

Fuel Capacity:

• 11.5 gallon on models with 30 gallon air storage, or tied to chassis

Air Storage Capacity:

• 30 gal

Battery Boost/Charge (Standard):

• 150A, 12/24V boost

• 50A, 12V charge

Options/Accessories (Sold Separately):

• KIT1504 Engine Service Kit, Vanair VNR680 20 HP (2 Quarts Oil, Air Filter and Pre-Filter)
• Remote Panel Harness – 10’, 14’, 18’

• Remote Mount Control Panel
• Battery Booster Cables - 20' (2GA with Quick Connect Ends) MA36223

• Fuel Tank – Slim Line 11 Gallon (Vanair VNR680 20 HP Only)

• Weld Cable Set 25' 1.0 # 03020-25
• Weld Cable Set 50' 1/0 # 033020-50
• Weld Cable Reel, Spring Forward with 50' Leads, 400A # 033137
• Cold Weather Kit 12V DC (Compressor Oil and Engine Oil Pan Heater*) # 032793
• Cold Weather Kit 120V AC (Compressor Oil and Engine Oil Pan Heater*) # 032927
• Compressor Service Kit (3 Air Filters and Vanguard Oil # KIT1156
• PM KIT1536, Engine, Initial 20 Hour, 100 Hour or Annual
• Vanguard Reciprocating Compressor Oil - 1 Qt # 271856-1QT
• Vanguard Reciprocating Compressor Oil - 1 Gal # 271856-1GAL
• Cold Weather Kit 12V DC (Compressor Oil and Engine Oil Pan Heater*) # 032793
• Remote Air Tank Options

• Remote Condensation Drain

• Welding Helmet with Auto Darkening Lens

• Dry Cell Battery

• GFCI Outlet for Protection of 120/240V (Remote Panel Machines Only)

• Filter/Lubricator/Regulator (FLR)

• Hose Reels and Fittings

• OSHA Safety Valve (Velocity Fuse)

• Service/Control Line Moisture Separators

• Tool Oiler/Lubricator

• Hose Reels

*Installed at time of machine build. Note: 12V kit utilizes chassis battery.

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
• *Dimensions listed are not a complete representation of total space necessary. Please consult Vanair for overall space and air requirements.
• Product improvement is a continuing goal. Design and specifications are subject to change without notice or obligations.
• Do not weld with the electrode holder connected to the negative port and the work piece connected to the vehicle. Bodily harm and equipment damage may occur.
