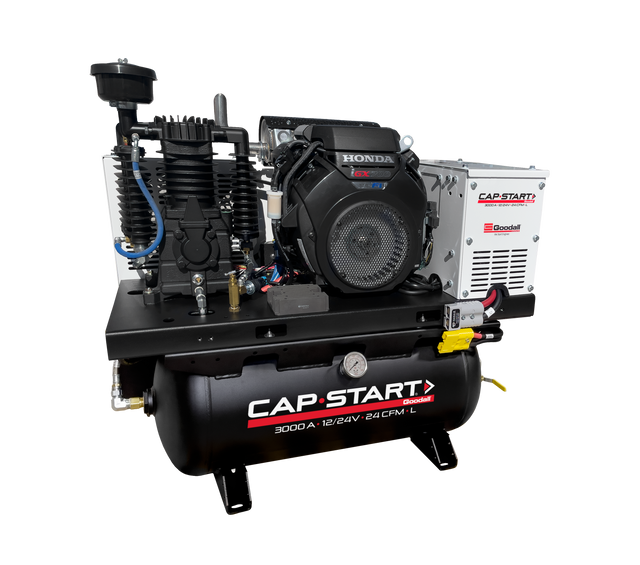

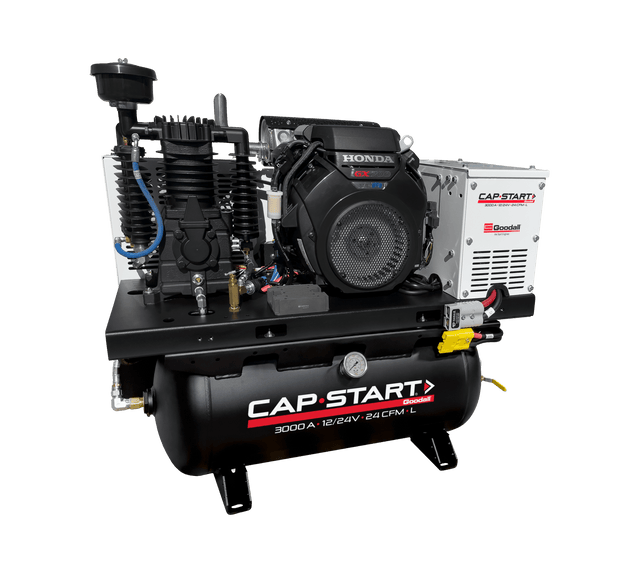

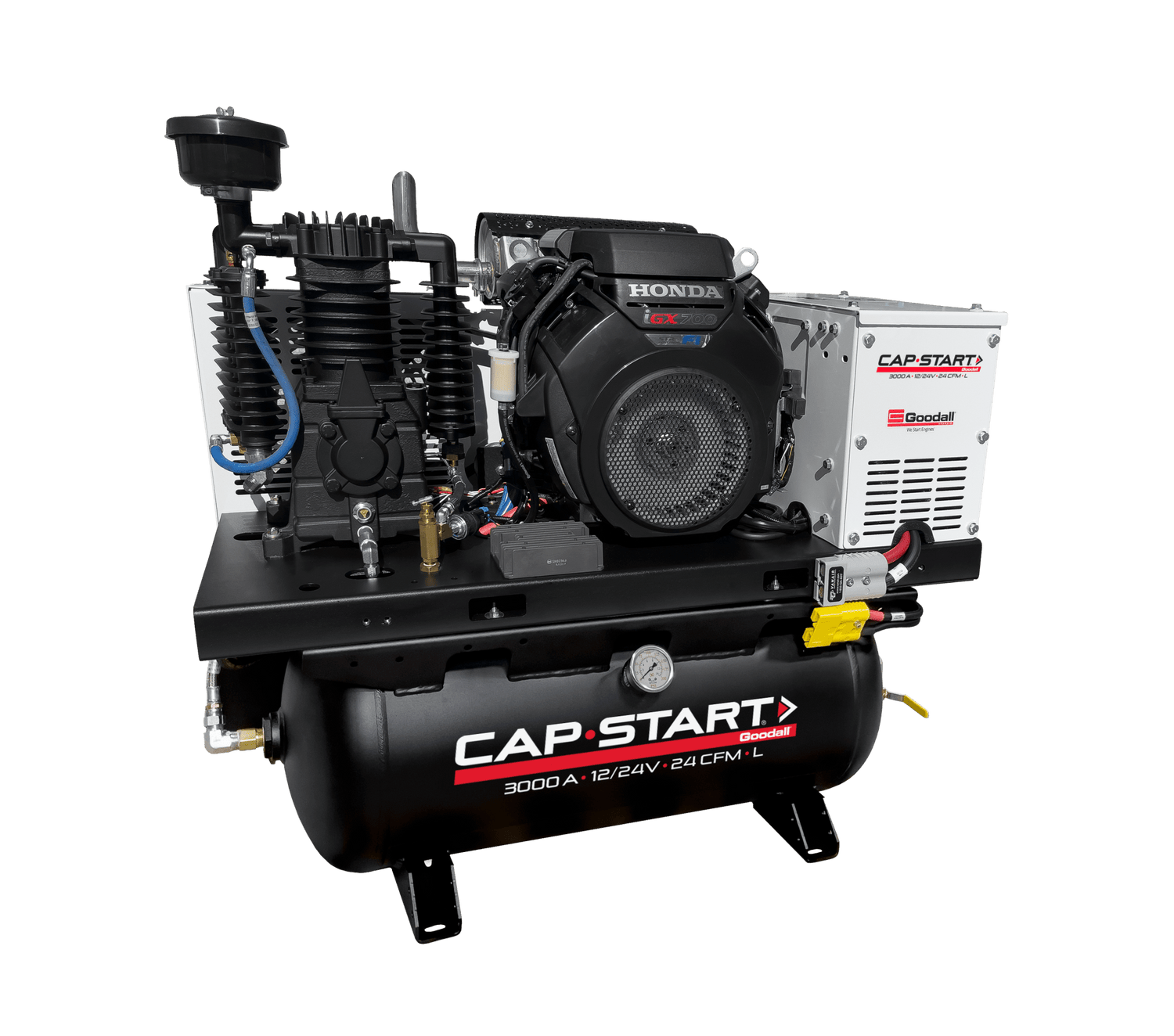

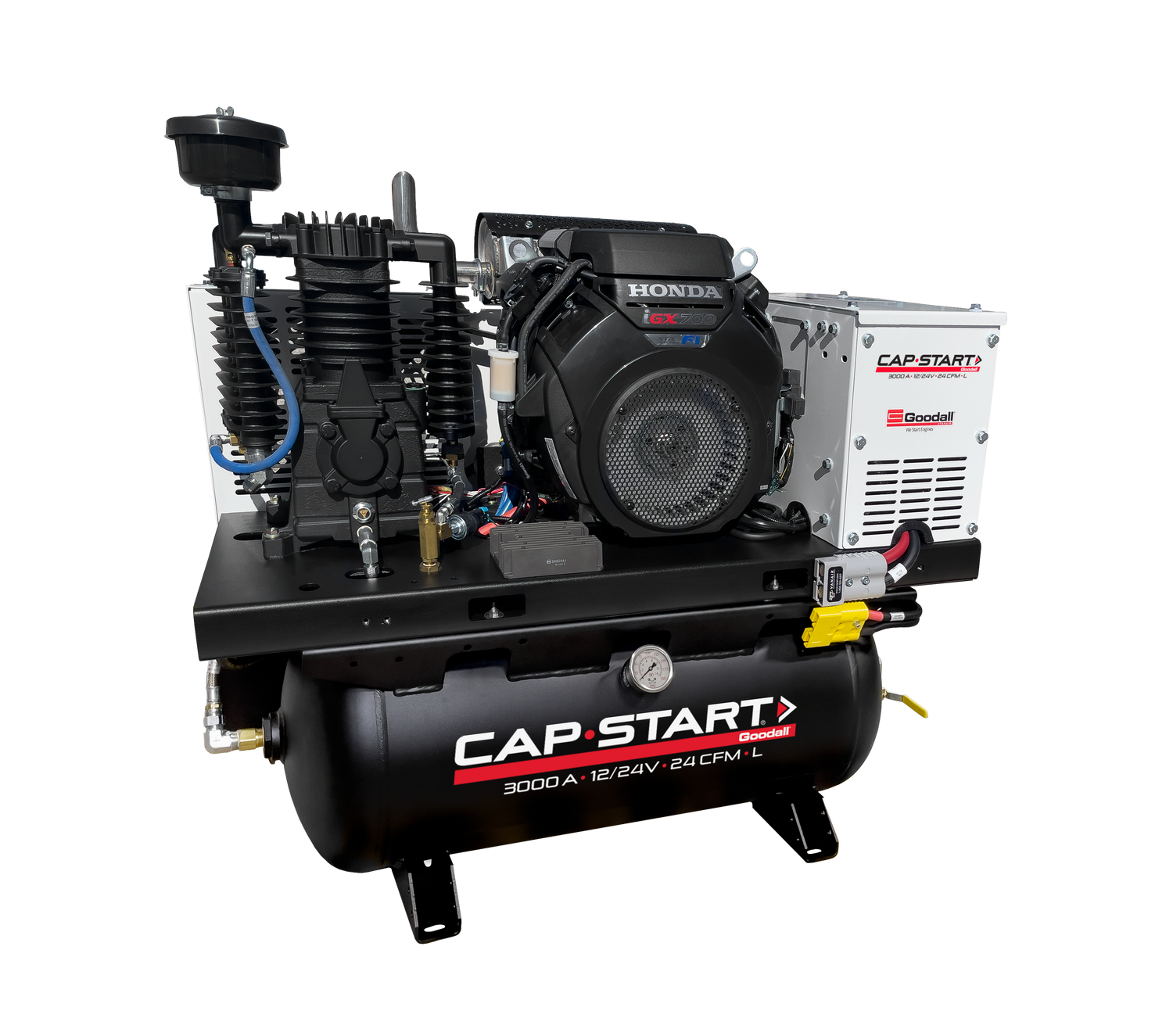

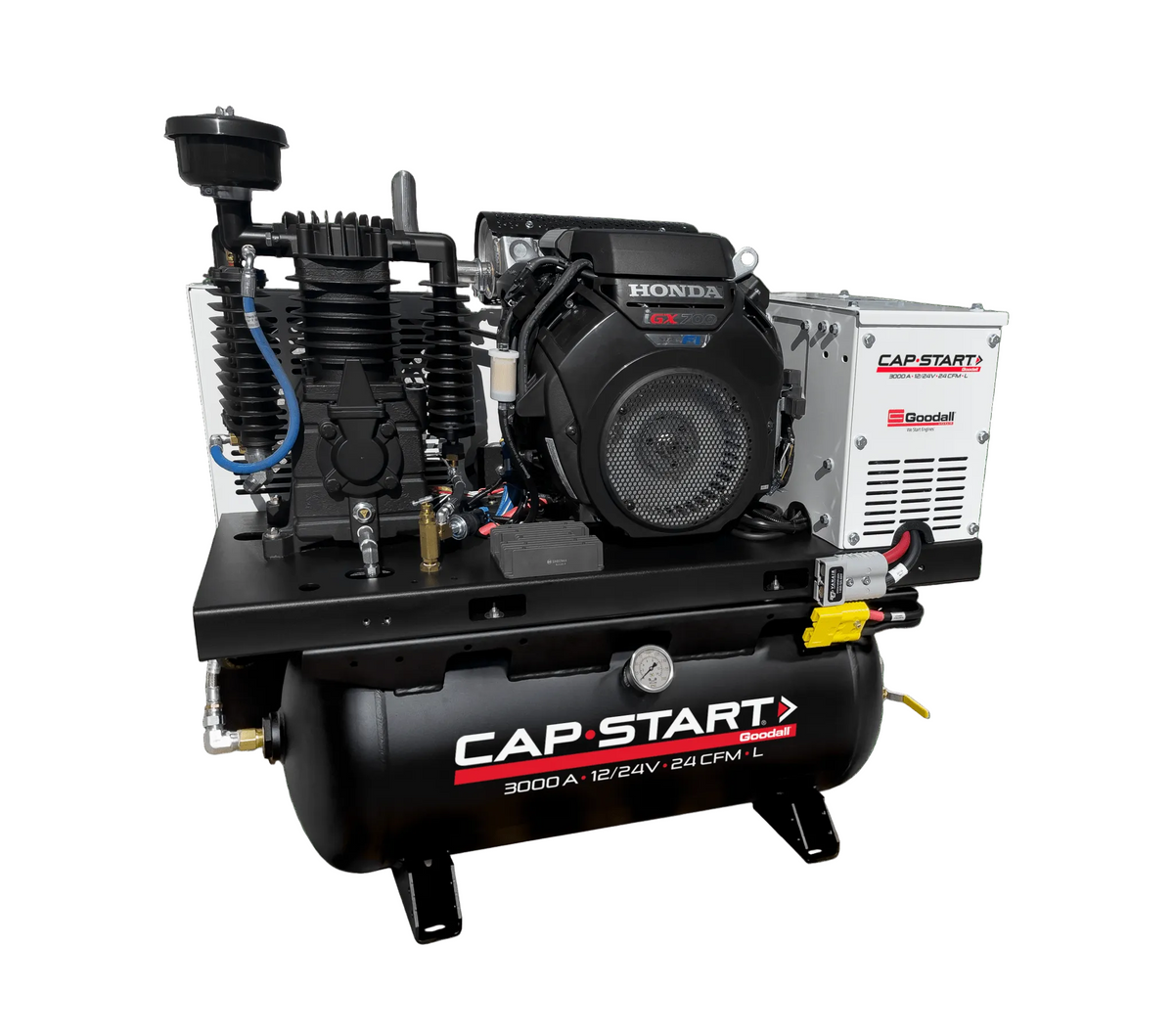

Vanair 052236 CapStart 3000 + Air Light - w/30-gallon Tank Mount

CapStart 3000 + Air Light, 12/24V, 24 CFM with 30-Gallon Air Tank, 11-Gallon Fuel Tank, Cold Weather, Honda

Don't need the tank? See the Vanair 052234

The new lightweight, 30-gallon, CapStart 3000 + Air Light allows you to rapidly start multiple vehicles in succession and provide the air power you need! Utilizing revolutionary new Vanair  Fast Start and Super Capacitor (VSC) technology, Vanair’s CapStart 3000 + Air Light provides you with instantaneous starting power for all your heavy duty machinery, company fleets, and off road vehicles, keeping you up and running. No more waiting for your batteries to charge — getting you back to work in mere seconds. The CapStart 3000 + Air Light is the fastest vehicle starting system on the market.

Features:

• 3000+ AMPS of Instantaneous Starting Power

• 12/24V Charging and Starting Capabilities

• 24 CFM and Up to 175 PSIG of Air Power for All Your Pneumatic Tool Needs

• 240A Self-Regulating Alternator for Fast Recharging

• Innovative Vanair Super Capacitor (VSC)

Performance:

• Vanair Super Capacitor (VSC)

• 3000 + AMPS Starting Capability

• 12/24V Charge/Start

• 240A Infinitely Variable Alternator

• 2-Stage Reciprocating Air Compressor

• Up to 24 CFM and 175 PSIG

• Unloader Valves

• Electronic Fuel Injected Honda 22.1 HP IGX700 EFI ETB

• Automatic Electronic Throttle Control

• Heavy-Duty Belt Drive System

Starting Cables:

• 30 Feet of 3/0 Polar-Grade Starting Cable

• UL/AWG Specification Compliant

• Fine Stranded, Flexible Copper

• Cold Weather Flexibility

• Tangle Resistant

• Chemical, Abrasion and Water Resistant

• Extruded Polarity Stripe for Safety Identification

Control Panel:

• Color LED Digital Display

• Engine Start/Stop Function

• Hour Meter

• Voltage and Amperage Output Display

• Battery Charge/Start Mode Function

• Integrated Fault Codes and Warnings

• Fault Level (If Applicable)

Convenience:

• Fully Powder Coated Aluminum

• Enclosure

• Aluminum Enclosure Around Electrical or Critical Components

• 3/16″ Thick Steel Frame

• Optional Removable Lifting Eye

• Easy Service Access

Safety:

• Weather Resistant Electrical Enclosure

• Smart, Self-Regulating Charging System

• ProtectAll Safety Technology and Fault Codes

Specifications:

• 12/24V Starting | Up to 3240A of Starting Capability

• DC Alternator | 240A @ 12/24V

• Compressor Type | Reciprocating

• CFM Rating | 24 CFM

• Air Pressure | 175 PSIG Max

• Engine Type | 22.1 HP Honda IGX700 EFI ETB

• Drive System | Dual V-Belt

• Fuel Type | Gasoline

• Fuel Capacity | Optional Remote 11-Gal. Tank

• Dimensions with Fittings | 46.7"L x 23.4"W x 42.7"H

• Dry Weight | 479 lbs

Options/Accessories (Sold Separately):

• Remote Panel Connection Harness in Multiple Lengths

• Industrial 3/0 Polar-Grade Starting Cables (25, 30, 35 and 40 ft. Lengths)

• Bumper/Remote-Mount Start Receptacles

• Vibration Isolators

• Remote Air Tanks

• Remote Fuel Tank

• Remote Battery Box and Battery Kits

• Cable Kits for Connection to the Chassis Battery

• Maintenance Kit

• Cold Weather Kits

• California CARB Compliance Kits
