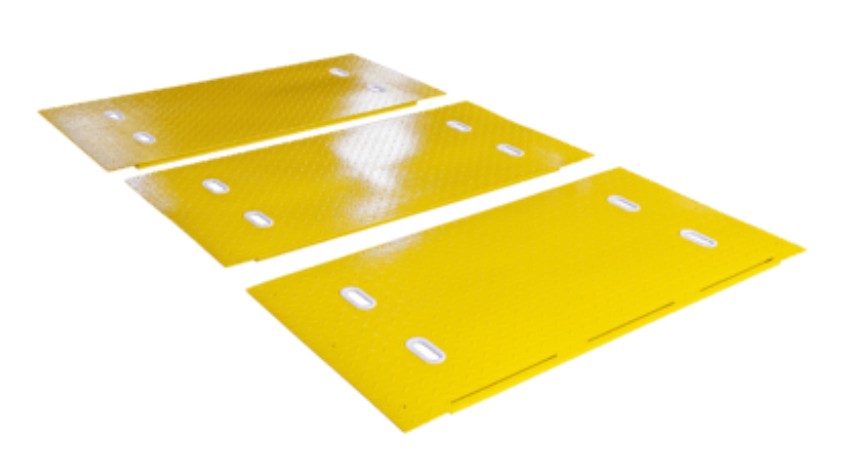

Tuxedo SC-2K-UTV-CTRPNLKIT Center Deck Plate Panel Kit

The iDEAL Center ‘Deck Plate’ Panel Kit (SC-2K-CTRPNLKIT) is a purpose-built optional accessory engineered exclusively for the iDEAL SC-2K-UTV-X Single Column UTV & Mower Storage/Service Lift. When installed, the kit creates a large 80″ x 84″ overall platform area by utilizing the lift’s multi-adjustable platforms in their widest position, maximizing usable space for general storage and equipment stowage. Its three heavy-duty, reinforced steel deck plate panels provide a stable, load-bearing surface ideal for smaller all-terrain vehicles, motorcycles, riding or push mowers, generators, bicycles, and other compact machinery. Users can apply one, two, or all three panels to match specific storage or service needs, while integrated hand-holes make placement, repositioning, and removal fast and convenient. Protective rubber strips on the underside of each panel enhance stability and safeguard for the lift platform surfaces. Finished in a durable powder-coat paint for long-lasting performance, the Center Panel Kit also works seamlessly with the SC-2K-UTV-X Side Ramps, enabling smooth loading of wheeled equipment before lifting, locking, and stowing items safely out of the way.

Features:

• Engineered exclusively for the iDeal SC-2K-UTV-X single column lift

• Expands lift functionality to support general storage, including light and heavy wheeled equipment

• Creates a solid 49" x 84" load bearing surface between lift platforms at the widest pinned positions

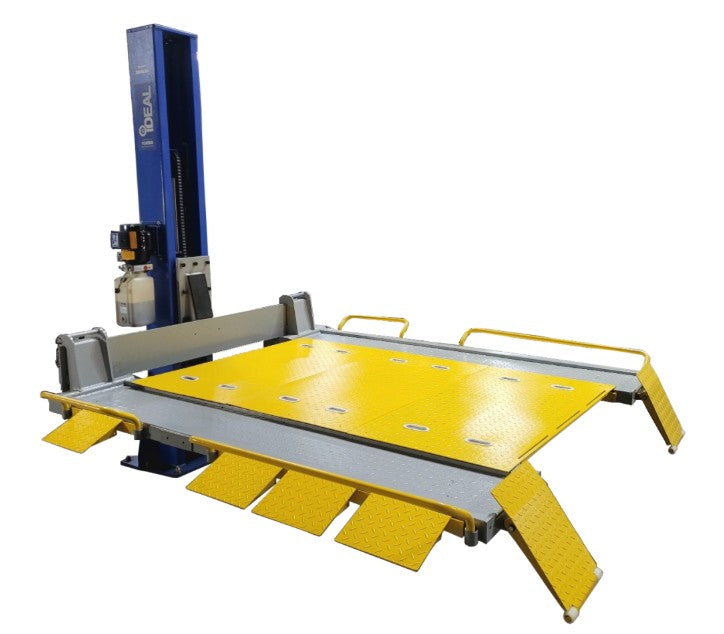

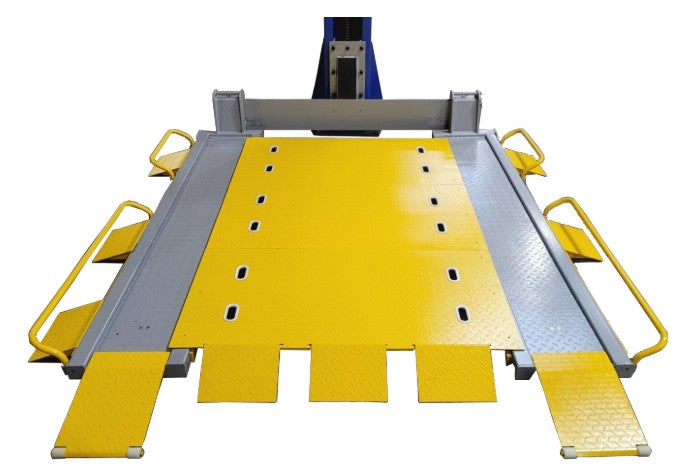

• Provides a full 80" x 84" elevated storage or service platform area when combined with lift platforms

• 'End panel' with slots allows integration with lift's side ramps to assist with loading / offloading heavier equipment

• Flexible configuration by using one, two, or all three panels to match specific service or storage needs

• Integrated 'hand-holes' allow quick panel placement, repositioning, and removal from lift platforms

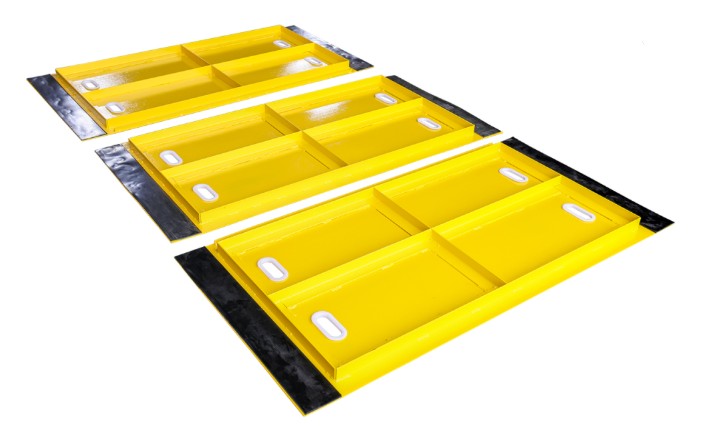

• Rubber strips on underside enhance stability and protect lift platform surfaces

• Heavy-duty reinforced steel 'deck plate' construction for long-term durability

• Durable powder-coat finish for extended service lift

• 2,000 lbs total capacity (667 lbs per panel)

Specifications:

• Max Panel Kit Capacity | 2000 lbs

• Max Capacity per Panel | 667 lbs

• Panel Size | 56.1"w x 28"l each

• Panel Weight | 75 lbs each

• Overall Panel Kit Area | 49.2"w x 84"l

• Overall Platform Area | 80"w x 84"l

• Ship Weight | 275 lbs

• Ship Dims | 57"l x 30"w x 10"h
