Titan 4 Post SBJ-MS Sliding Bridge Jack Master Series, Hydraulic

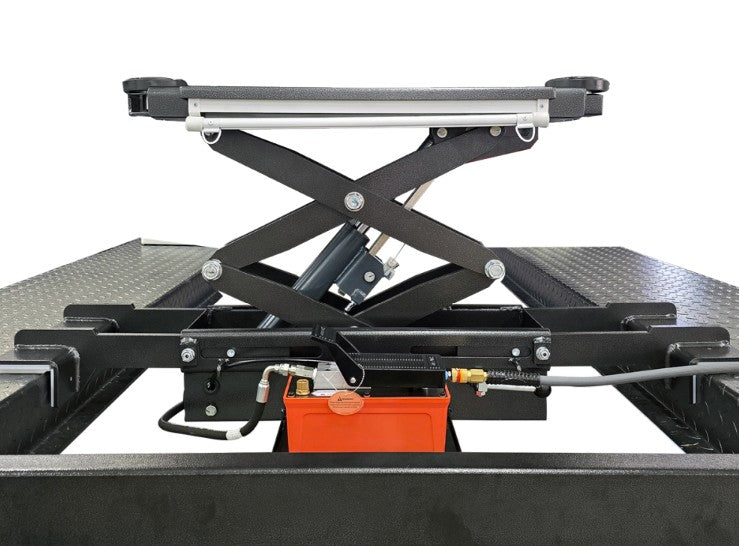

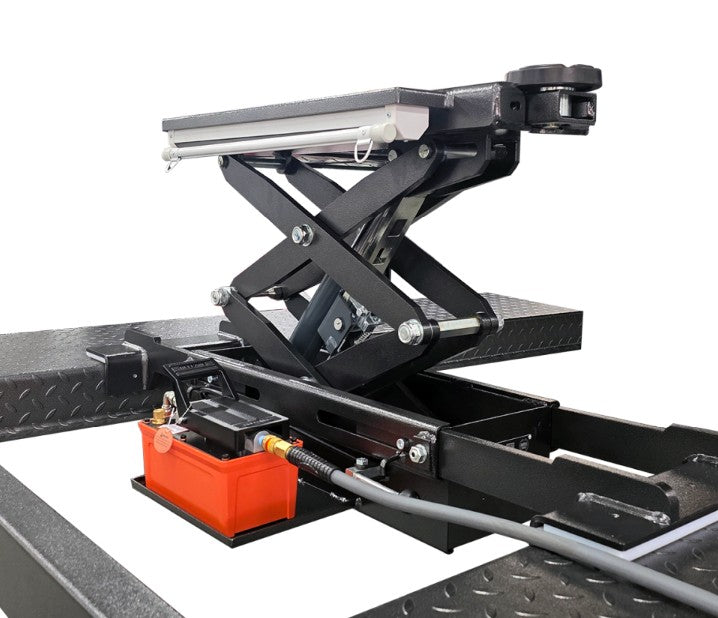

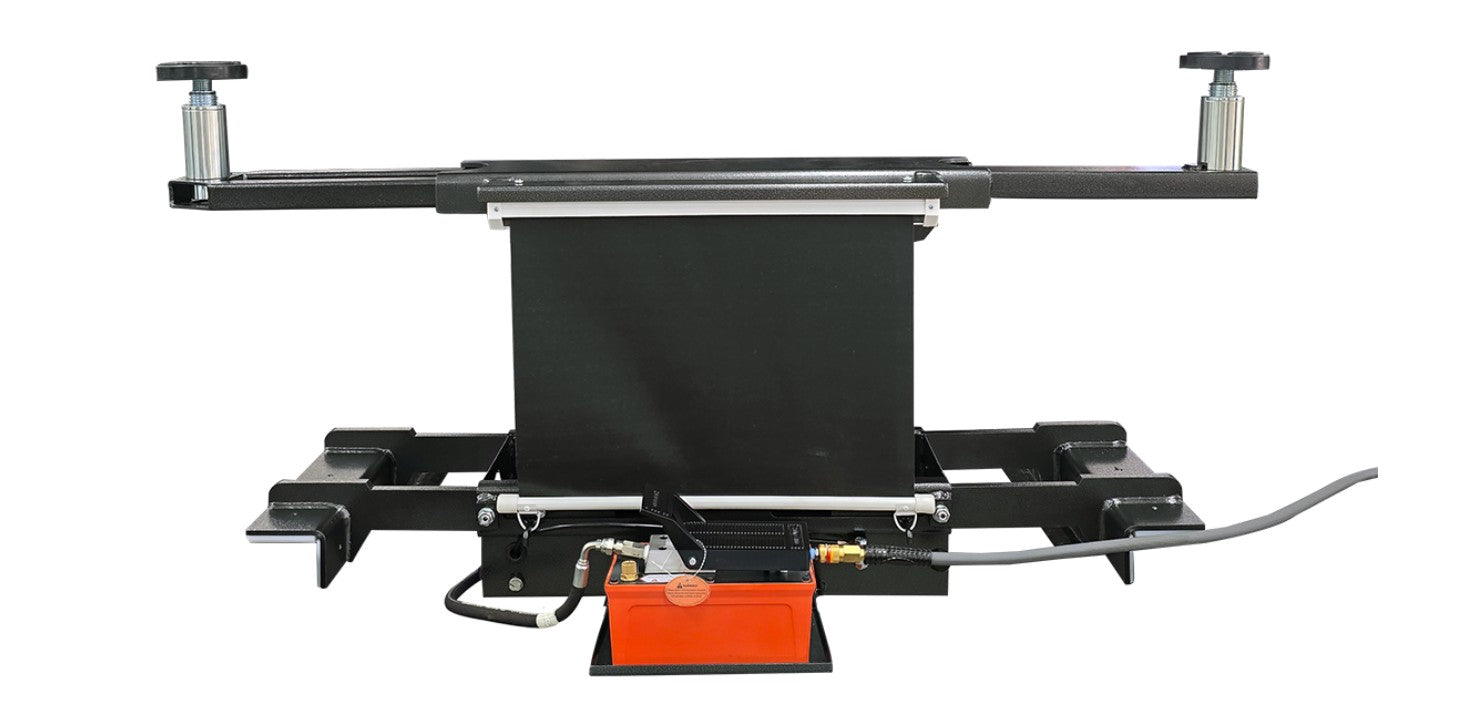

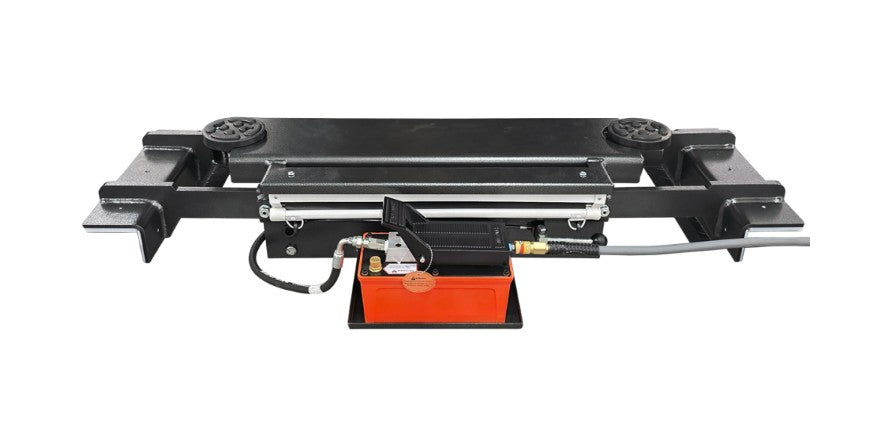

The Titan Sliding Bridge Jack Master Series has a lifting capacity of 4400 lbs. This is a sliding air operated pneumatic powered jack. It can be used on the Titan 7k, 7k-XLT, 8k, 8k-XLT and 9k 4 post lifts. This is designed to assist in lifting the front or back of a vehicle off the runways for wheel and suspension work. This is a scissor-style air over hydraulic jack that comes with four height adapters and two thread up adapters. It uses two telescoping arms that allow the jack to slide between the runways.

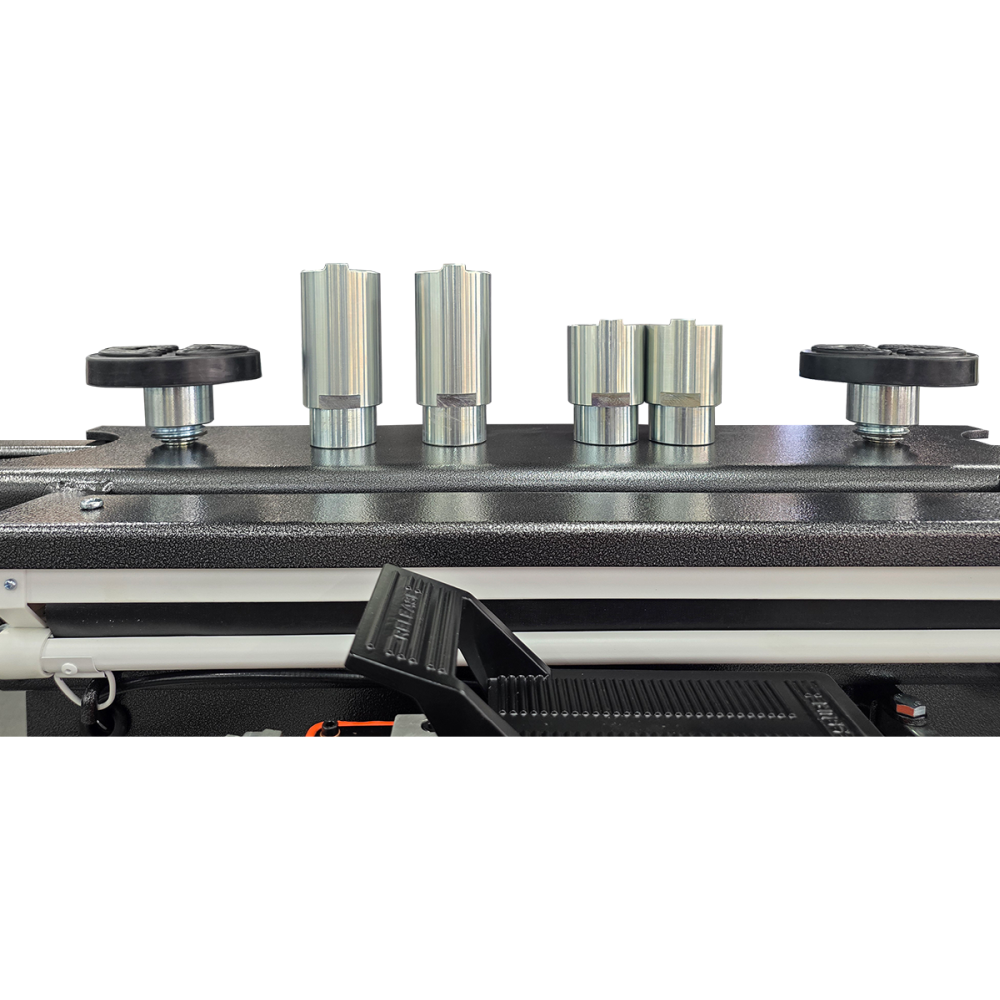

Height Adapters:

• Short | 2 3/8"

• Tall | 4"

• Thread up | 1 5/8"

• Stacked adapters / thread up max height | 8"

Dimensions:

• Minimum lowered height with thread up adapter | 4.5"

• Raised lock position #1 | 7"

• Raised lock position #2 | 12.5"

• Raised lock position #3 | 16.25"

• Raised lock position #4 | 19.75"

• Minimum pad width | 31.5" (center of pad)

• Maximum pad width | 58.5" (center of pad)

Specifications:

• Shipping Dims | 43"l x 25"w x 14"h

• Shipping Weight | 380 lb
