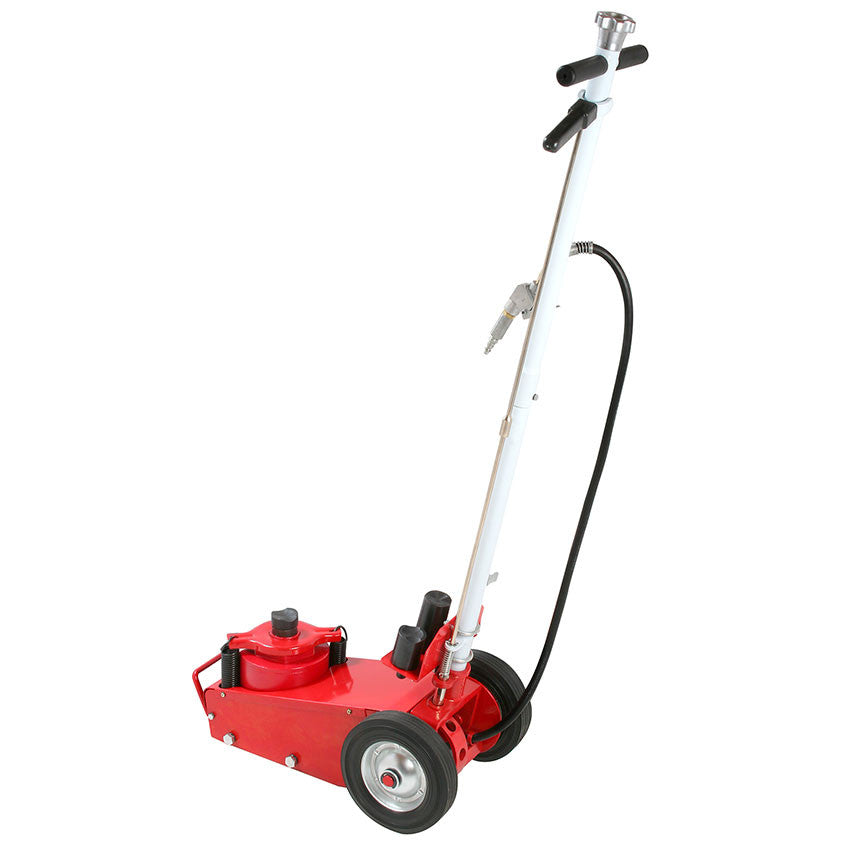

Sunex 6635 22/35 Ton Telescopic 2 Stage Air/Hydraulic Truck Jack

The Sunex 6635 2 Stage Jack is designed for heavy duty truck and trailer shop use, rail and bus work, and portable for roadside service calls.

Features:

• Narrow chassis design fits easily between tandem wheels
• Chassis base is contoured so wheels make contact with ground when jack is not under load and raises them off the ground when under load to prevent damage
• 8" Diameter pneumatic wheels make maneuverability easy
• Overload and bypass safety valves prevent the jack from being used beyond it's rated capacity and prevent ram over extension
• Self-retracting ram
• Lever on “T” handle locks it in any one of three different positions
• Release knob on top of handle operates independently of handle locking lever.
• Integrated filter protects air motor

Includes:

• Four adapters (1.875" and 2.625" diameter saddles, 2" and 4" extension adapters) with handle mounted saddle holder included

Specifications:

• Model Number: 6635
• Capacity (tons): 22/35 @ 100 PSI
• Low Height (in.):8.625
• Ram Travel (in.): 7.75
• Ext. Screw Adj. (in.): 3.375
• Max. Height w/ Adapter (in.): 19.75
• Chassis Length (in.): 24
• Overall Width (in.): 13.75
• Wheel Dia. (in.): 8
• Saddle Dia. (in.): 2
• Handle Length (in.): 49
• Shipping Weight (lbs.): 119
