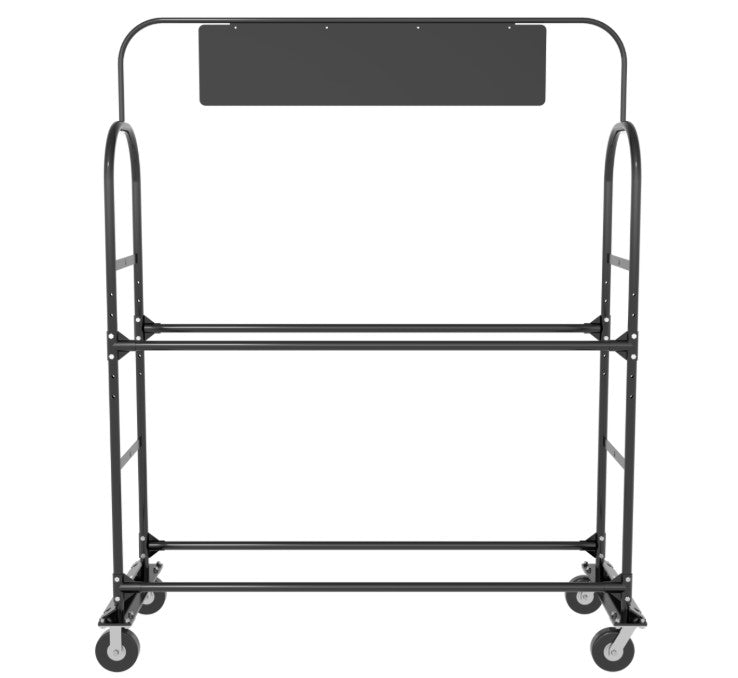

Ranger TSR-2S Tire Storage Rack

Mobile Tire Display Rack / 2 Tier / Heavy-Duty / Incl. Signage

Constructed of welded steel alloy tubing with a tough powder coat finish, this rack provides a rugged, safe, and convenient method to store and transport wheels and tires while maximizing your workspace. Designed to accommodate a wide variety of tire sizes, the upper tire storage tier may be adjusted to 5 height positions spaced 2.75 inches (70mm) apart. The storage rack includes a sign holder mounted at the top of the tire rack and includes three general sale and service signs.

Features:

• Simple, effective tire storage

• Safe, rugged design

• Easy-roll casters

• Handles up to 1,250-lbs.

• Keeps the shop organized

• Safely stores multiple tires of varying sizes

Specifications:

• Overall Length | 77" (1,959.6)

• Overall Width | 27.5" (698 mm)

• Overall Height | 88.5" (2,250 mm)

• Sign Frame Accessory Height | 14.25" (363 mm)

• Bottom Storage Tier Height | 11.25" (288 mm)

• Top Storage Tier Height | 39.25" (998 mm) Min. / 50.25" (1,278 mm) Max. / 5 Height Positions spaced 2.75" (70 mm) apart

• Inside Length | 68.5" (1,739 mm)

• Inside Width | 19" (482 mm

• Caster Diameter | 5" (127 mm)

• Max. Load Weight | 1,250 lbs. (566.99 kg)

• Material | Steel Q345B

• Net Weight | 145.5 lbs. (66 kg)
