Ranger TS58R TPMS Diagnostic & Programming Tool Kit

The Ranger TruSensor TS58R TPMS diagnostic and programming tool works on all import and domestic vehicles using wireless or OBD connectivity. With the portable TS58R, technicians can see in one glance all critical information including Sensor Battery Life, Tire Pressure, Broadcast Frequency, Sensor ID, and Tire Location. The universal interface can relearn all known 315 MHz and 433 MHz sensors including aftermarket and OE types. Program updates are available through a USB-equipped PC with internet access or by micro-SD card option. Control all operations fast using the colorful 4.3-inch touch screen, or soft-touch control buttons.

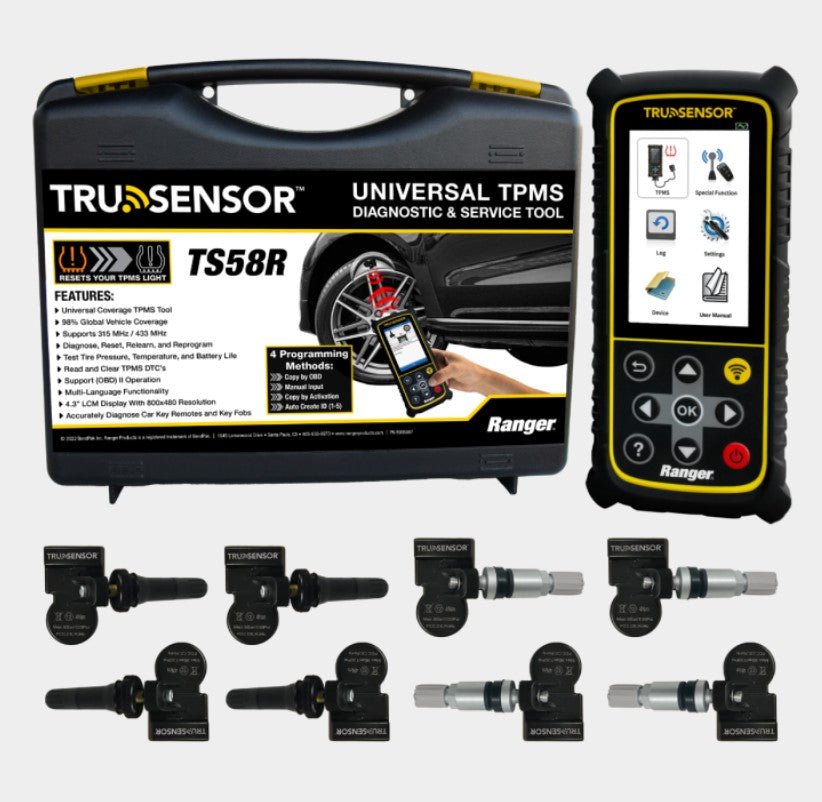

Kit Includes:

• Durable carrying case with protective foam inserts

• 4 metal stem sensors

• 4 snap-in rubber stem sensors

• USB interface cable

• OBD II cable for direct access to vehicle ECU

• Power cord
• User Guide

Features:

• Activate and relearn all known 315 MHz and 433 MHz sensors (OE or Aftermarket)

• Displays all sensor data in seconds, including sensor ID, tire pressure, tire temperature, and battery status

• Manual input ID, duplicate ID, automatic create ID, sensor position change, and modify ID, functions

• Activates, diagnoses and reads 100% of all OE and aftermarket TPMS sensors

• Extensive 98% vehicle coverage including Domestic, Asian, and European

• Includes built-in OBD port and quick connector for easy OBD communication

• User-friendly navigation features colorful 4.3-inch touch screen display and soft-touch buttons

• OBD connectivity for accessing vehicle ECU

• Use to program vehicle ECU to learn sensor IDs and positions

• Step-by-step on-screen procedure guide

• Reads and clears TPMS codes and resets warning indicator light

• Reads data including Sensor ID, Tire Pressure, Temperature, Battery Condition, OE
• Part Number, and Relearn information

• Vehicle model selection process is fast and efficient

• Includes database covering over 10,000 vehicles, domestic, and import

• Provides visual and audible responses during interface operations

• Built-in rechargeable Li-polymer battery

• Automatic power-off setting preserves battery life

• Program up to 5 sensors simultaneously

• Whole vehicle mode allows easy programming of 4-5 sensors at one time

• Use to diagnose key fobs and remote keyless entry signal strength

• Multi-language interface

• Easily updatable via PC with internet access or by micro-SD card option

• Extra storage card (8G/16G/32G) supported

• Five-year FREE software updates through internet USB-C port

Specifications:

• Display | 3" TFT color display (320 x 240 DPI)

• Battery | 3.7V 3000mAh lithium battery

• Input | 5VDC at 2A (10W)

• Operating Temperature | 32 to 122° F (0 to 50° C)

• Storage Temperature | -4 to 158° F (-20 to 70° C)

• Dimensions | 8.25" x 3.75" x 1.5'

• Weight  | 1.5 lbs (680 g)
