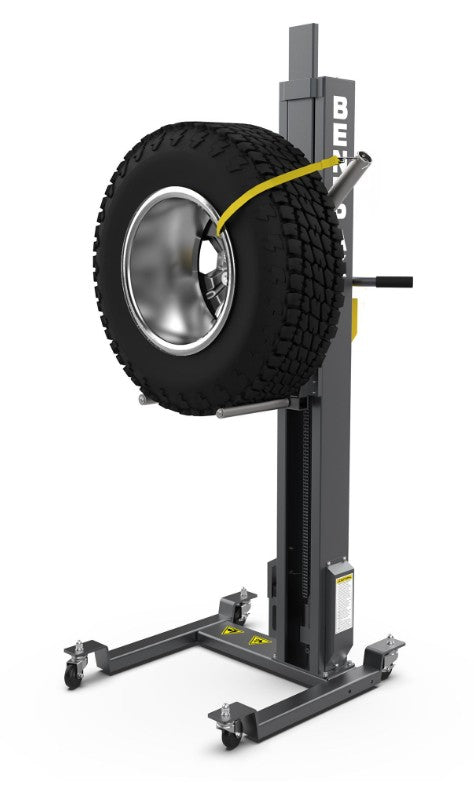

Ranger RWS-200WL Rechargeable Portable Wheel Lift

200-lb Capacity / Industrial Lithium-Ion Power / Rugged Steel Construction

The BendPak RWS-200WL battery-powered wheel lift is engineered to tackle the heavy lifting of tires and wheels, significantly reducing technician fatigue and workplace injuries. With a robust 200-lb lifting capacity, precision lithium-ion powered actuator, and rugged steel construction, it offers cordless freedom, quiet operation, and unmatched safety, ideal for tire shops, fleet facilities, and EV service bays.

Features:

• Reduces Risk of Lifting Injuries

• Helps Prevent Common Workers’ Comp Claims

• OSHA-Friendly Safety Practices

• 200-lb. (90.7 kg) Lifting Capacity

• Battery-Powered 24VDC Linear Actuator

• 44.8Ah Industrial Lithium-Ion Battery

• No Air Lines. No Power Cords. No Hazards.

• Fast Lift Speed 1.6 in/sec

• One-Touch Control Panel

• Integrated Safety Tie-Down Strap

• Powder-Coated All-Steel Construction

• Compact Base with Heavy-Duty Casters

• Oversized Roller Assembly

• Stable Nylon Slide Blocks

• Low-Profile Base Frame

• High-Productivity Precision Use

• Global Battery Charger

• Tool-Free Setup and Maintenance

• Battery Status Indicator

• 12V DC Output

Specifications:

• Max. Lift Capacity | 200 lbs. (90.7 kg)

• Lift Range (at rollers) | 2.5 in. – 45 in. (65 mm – 1140 mm)

• Max. Extended Height (tip) | 85.25 in. (2,165 mm)

• Base Footprint (L × W) | 30 in. × 27 in. (760 mm × 686 mm)

• Roller Spacing (center-to-center) | 12.5 in. (318.75 mm)

• Raise/Lower Speed | 1.6 in./sec (40 mm/sec)

• Battery Type | 24 VDC Lithium-Ion

• Battery Capacity | 44.8 Ah

• Battery Runtime | Up to 1000 charge cycles (at ≤ 5 A)

• Charger Input Voltage | 100–240 VAC, 50–60 Hz

• Charger Output | 29.4 VDC @ 0.95 A

• Operating Temperature Range | 32 °F – 113 °F (0 °C – 45 °C)

• Caster Size | 3 in. (Two swivel, two locking)

• Unit Weight (assembled) | 132 lbs. (60 kg)
