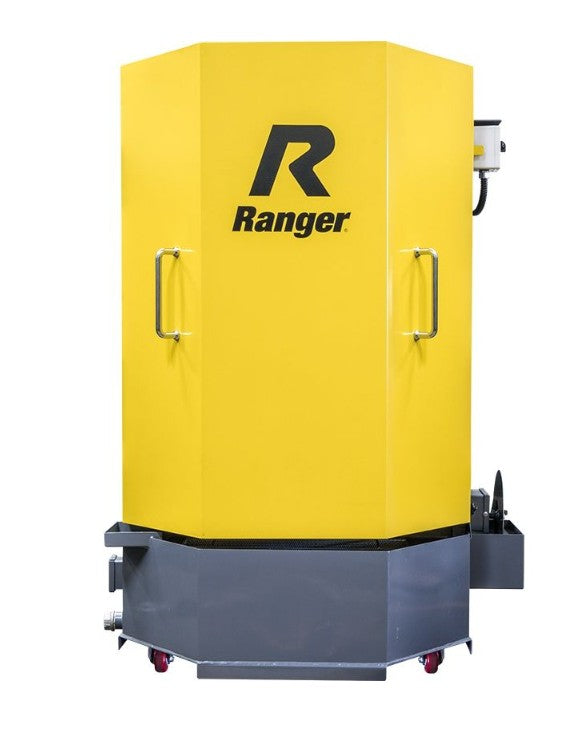

Ranger RS-500D-503 50 Gal Capacity Professional Spray Wash Cabinet With Skimmer- 3PH

This product requires a forklift provided by the customer at the shipping destination to offload.

Professional Spray Wash Cabinet With Skimmer / Deluxe / Dual-Heaters / Low-Water Shutoff

Clean it better with Ranger! This 50-gallon capacity spray wash cabinet rapidly degreases dirty parts, including larger truck/SUV engine components. Comes with a free bucket of detergent. By using an octagonal full-opening door, the RS-500D provides easier access to the turntable for loading and unloading parts. Simple operating controls, brass nozzles, a gasket-free door and a beefier, industrial-grade 70 gpm pump demonstrate Ranger's commitment to enhanced performance and productivity. We constructed the cabinet and door with heavy-duty 12-gauge steel and then coated it with an industrial two-step primer and powder coat finish. Automatic low-water shutoff includes audible and visual alarms. Fast-acting dual water heaters ensure faster, safer cleaning. Plus, revised circuitry and a new electronics board ensure better all-around performance, durability and improved operator convenience, making the RS-500D the definitive choice among professionals worldwide.

Features:

• Heavy-duty steel construction

• Safe aqueous operation: No harsh chemicals

• 50 gallon tank

• Dual water heaters for quick startup

• Heated cabinet w/ adjustable thermostat

• High-power spray jets clean parts fast

• Automatic low water shutoff

• Removable tank screen

• Stainless oil skimmer

• Removable parts tree

• Powder coat finish

• Stainless steel nozzles

• Full opening octagonal door

• Large drain pipe

• Heavy-duty casters

• Friction-drive turntable system

• Neoprene-sealed wash cabinet

• Contamination-proof interior welds

• Gasket-free door

• Small parts basket

• Stainless steel handles

• Free bucket of soap included

Specifications:

• Overall height | 66" (1,676 mm)

• Inside height | 43" (1,092 mm)

• Inside width | 32" (813 mm)

• Turntable diameter | 30" (762 mm)

• Tank capacity | 50 gallons

• Recommended floor space | 44" x 43" (1,118 mm x 1,092 mm)

• Load capacity | 500 lbs. (227 kg)

• Cycle timer | 1 - 60 min

• Brass nozzles | 18

• Steel construction | 12 Gauge / .109 thickness

• Pump output | 75 psi @ 70 gpm

• Motor | 3 HP / 415 VAC / 50 Hz / 32 Amps

• Electric heater | 6 kW

• Water temperature | 160° - 180° F (71° - 82° C)

• Shipping weight | 680 lbs (308 kg)

• Shipping dimensions | 46" x 46" x 68" (1,168 mm x 1,168 mm x 1,727 mm)
