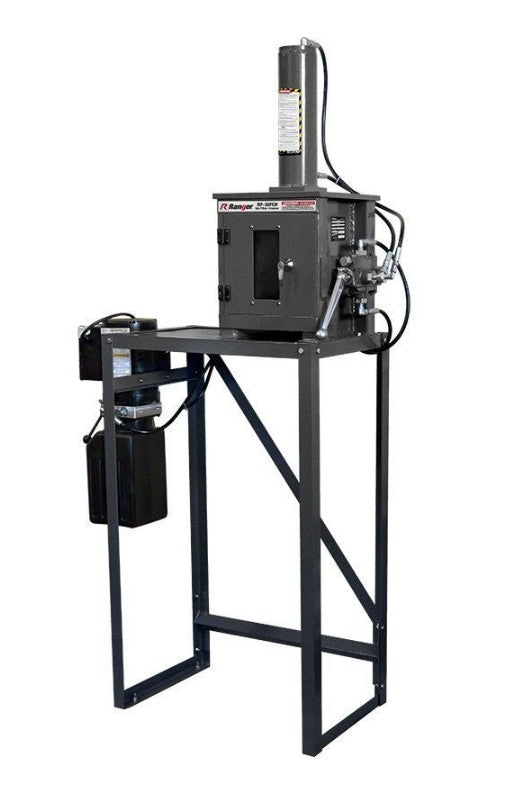

Ranger RP-30FCH Oil Filter Crusher with Stand

Electric/Hydraulic Oil Filter Crusher with Stand / 15-Ton Capacity / 208-240V / 1 Ph / 50/60 Hz

The RP-30FCH oil filter crusher applies 30,000 lbs. of crushing force against used oil filters that need to be completely drained of residual oil. Its manual stainless steel handle is ergonomically placed on the side of the crusher to safely manage its two-way stop-and-start operation.

Features:

• Maximum crushing pressure of 30,000 pounds

• Filters are reduced to 20% of their original size with 95% of residual oil removed

• Fulfills EPA and other mandated environmental standards

• Save on waste disposal costs and storage space

• Cycle time approximately 8 to 15 seconds depending on filter size

• No-mess design operates clean and efficiently to lessen spill hazards

• Ergonomic controls feature manual cycles

• Welded steel plate construction

• Electric-hydraulic power unit features 2-HP motor

• Spring-loaded shutoff switch stops operation when door is opened

• Transparent door for a convenient view of the crushing process

• Powered by a 2-HP electric-hydraulic pump with 2-gallon reservoir

• Rugged floor stand is designed to accommodate up to 55-gallon drums for efficient fluid handling

Specifications:

• Overall Height | 75" (1,905 mm)

• Overall Width | 42.5" (1,080 mm)

• Overall Depth | 17" (432 mm)

• Chamber Opening Height | 10.75" (273 mm)

• Chamber Opening Width | 8.5" (216 mm)

• Chamber Opening Depth | 10.5" (267 mm)

• Average Cycle Time | 8 – 15 sec

• Power Supply | 208-240V / 50/60 Hz / 1 Ph

• Shipping Weight | 296 lbs (134 kgs.)

• Shipping Dimensions | 33" x 38" x 21" (838 mm x 965 mm x 533 mm)
