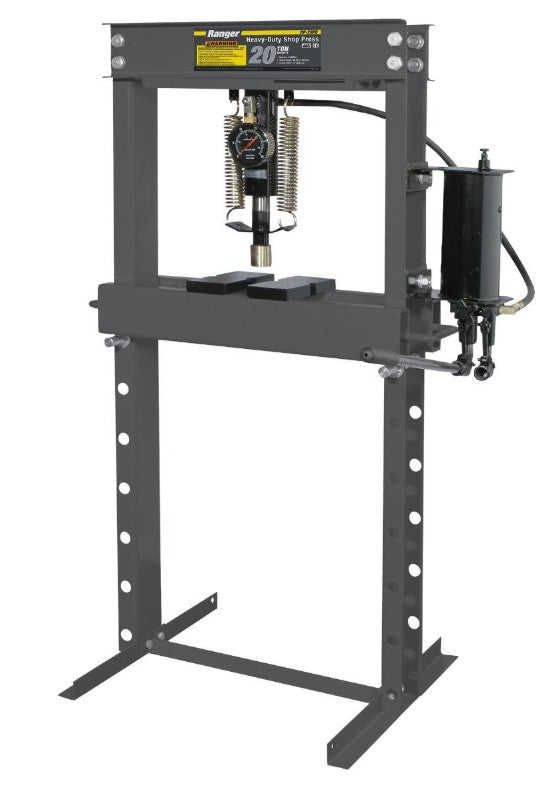

Ranger RP-20HD 20-Ton 2-Stage Shop Press

20-Ton Shop Press / Two-Stage Hydraulic Pump / Commercial-Grade

This robust 20-ton press was designed for heavy use in repair shops but works just as well in your garage. Ideal for the removal and installation of gears, bushings and bearings, the RP-20HD also excels at bending, straightening and flattening. The applications are truly endless. This heavy-duty hydraulic shop press features an independent two-stage hydraulic pump that provides incredible performance for the most rigorous pressing applications you can throw at it.

Features:

• Ideal for pressing bearings, U-joints, etc.

• Hydraulic cylinder moves laterally for better versatility

• Integrated 4" diameter 20-ton pressure gauge

• Independent two-speed hydraulic pump for maximum performance

• Adjustable table height

• Heavy steel construction

• Includes two heavy-duty press plates

Specifications:

• Capacity | 40,000 lbs. (18,144 kg)

• Overall Height | 60.25" (1,530 mm)

• Overall Width | 37" (940 mm)

• Inside Width Between Rails | 24" (610 mm)

• Adjustable Table Height | 7.5" - 36.25" (190 mm - 921 mm)

• Base Dimensions | 27.25" x 26" (692 mm x 660 mm)

• Cylinder Stroke | 5.5" (140 mm)

• Shipping Weight | 274 lbs. (124 kg)

• Shipping Dimensions | 61" x 13" x 15" (1,754 mm x 330 mm x 381 mm)
