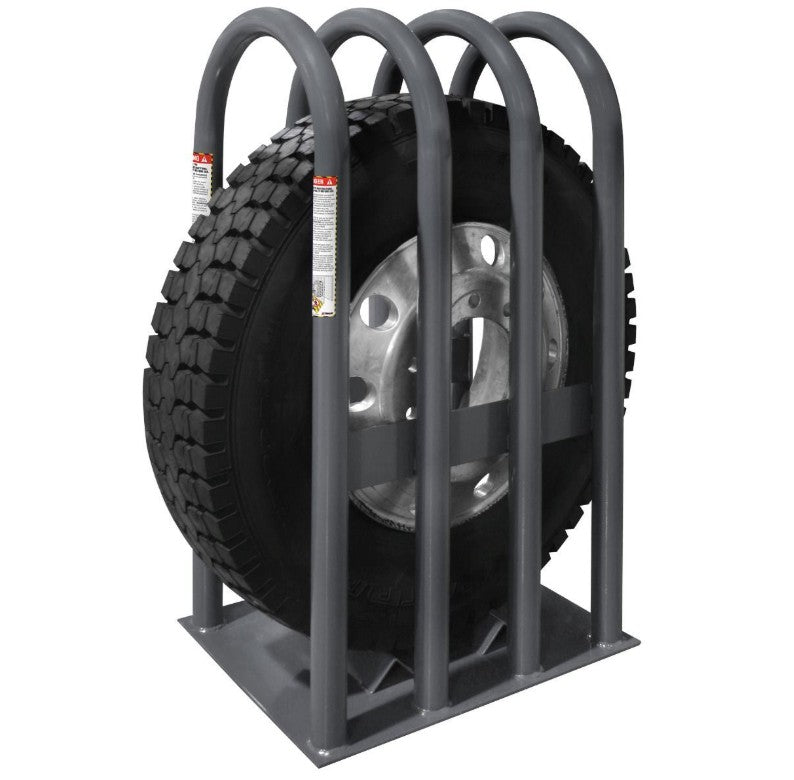

Ranger RIC-4716 4-Bar Tire Inflation Cage

This product requires a forklift provided by the customer at the shipping destination to offload.

The RIC-4716 inflation cage is a crucial, life-saving piece of equipment that must be used during the inflation of a tire. Tire explosions are deadly, and only a ruggedly constructed tire cage can prevent catastrophic damage in a worst-case scenario.

Features:

• Accommodates hub assemblies up to 9.5" wide

• Installs on all Ranger wheel balancers with a 36 mm shaft

• Designed to balance wheels with a center-hole diameter from 5/8" to 1.25"

• Kit comes with universal wheel clamp, shaft, centering cones, spacers and spin-on nut

• 2-3/8" diameter, high-yield, seamless steel tubing

• 4-Bar welded-steel construction

• Solid-steel welded-steel base

• Four tubular steel base frame supports keeps cage elevated off the floor to prevent rust and corrosion

• Full-width angle-iron wheel cradle

Specifications:

• Max Tire Width | 16" (406 mm)

• Max Tire Diameter | 47" (1,194 mm)

• Height | 49.5" (1,257 mm)

• Width | 21" (533 mm)

• Depth | 27" (686 mm)

• Shipping Dimensions | 30" x 24" x 60" (762 mm x 609 mm x 1,524 mm)

• Shipping Weight | 256 lbs (116 kg)
