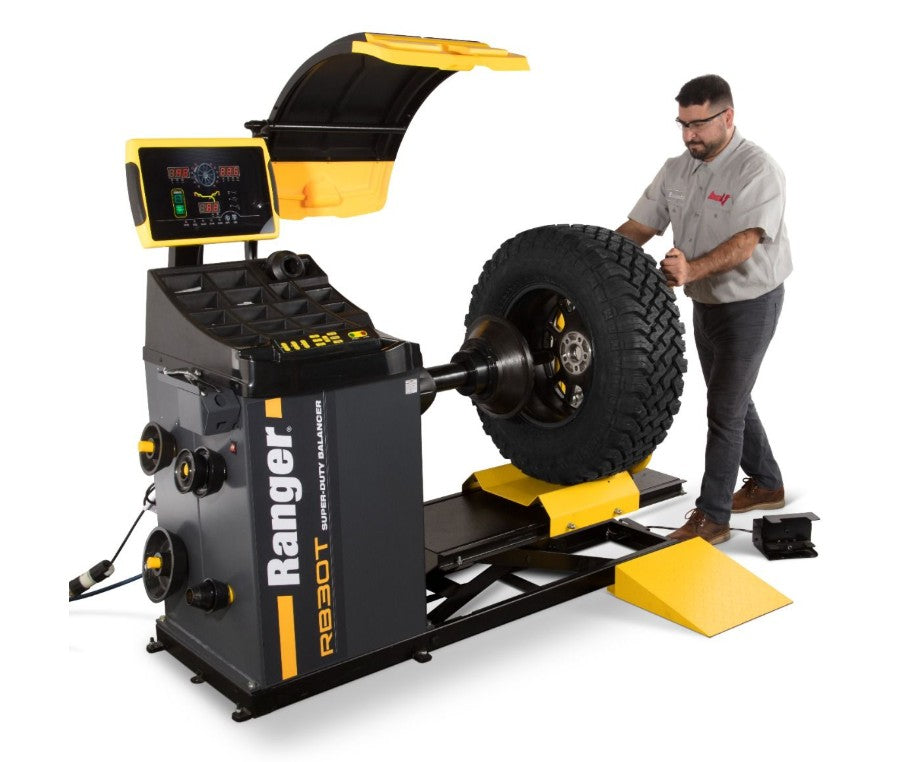

Ranger RB30T Heavy Duty Truck Wheel Balancer w/Deluxe Adapter Kit

This product requires a forklift provided by the customer at the shipping destination to offload.

The Ranger RB30T truck wheel balancer isn’t some half-baked passenger machine with bigger cones. It’s a dedicated, heavy-duty workhorse built from the ground up for commercial truck shops and fleet operations that live and die by uptime. From massive OTR tires to standard light-truck wheels, the RB30T brings purpose-built engineering, real-world precision, and relentless reliability to every spin. It’s fast, intuitive, and built to crush the demands of nonstop wheel balancing—day in, day out.

Features:

• Five distinct balancing modes: Dynamic, Static, ALU1, ALU2, and ALUS for total compatibility with steel and aluminum wheels

• Integrated pneumatic wheel lift handles up to 330 lbs for easy mounting and reduced strain on technicians

• High-precision 64-bit digital architecture and single-chip control system for ultra-fast data processing

• Rugged 40 mm precision-machined, hardened-steel shaft ensures long-term durability and repeatable clamping

• Self-centering quick-chuck system dramatically reduces setup time and improves centering accuracy

• Electro-pneumatic braking system locks wheels for pinpoint weight placement at top or bottom dead center

• Optional lower laser projects 6 o'clock placement for adhesive weights in ALU modes

• Top-dead-center LED weight placement indicators guide fast and accurate clip-on weight installation

• Supports wheels up to 49.25" in diameter, 20" wide, and up to 330 lbs in weight

• Dual-unit display allows user preference between gram/ounce and inch/millimeter readouts

• Rapid cycle times: 7–10 seconds for car wheels, approximately 20 seconds for truck wheels

• Built-in optimization mode improves balance on problematic wheels using tire rotation guidance

• Self-calibration and inner-arm calibration functions maintain long-term measurement accuracy

• Durable ribbed nylon-fiber reinforced serpentine belt resists wear and slippage under load

• Multi-directional quartz piezoelectric sensors detect longitudinal, transverse, and shear imbalances

• Top tray and side shelving offer generous onboard storage for weights, cones, and tools

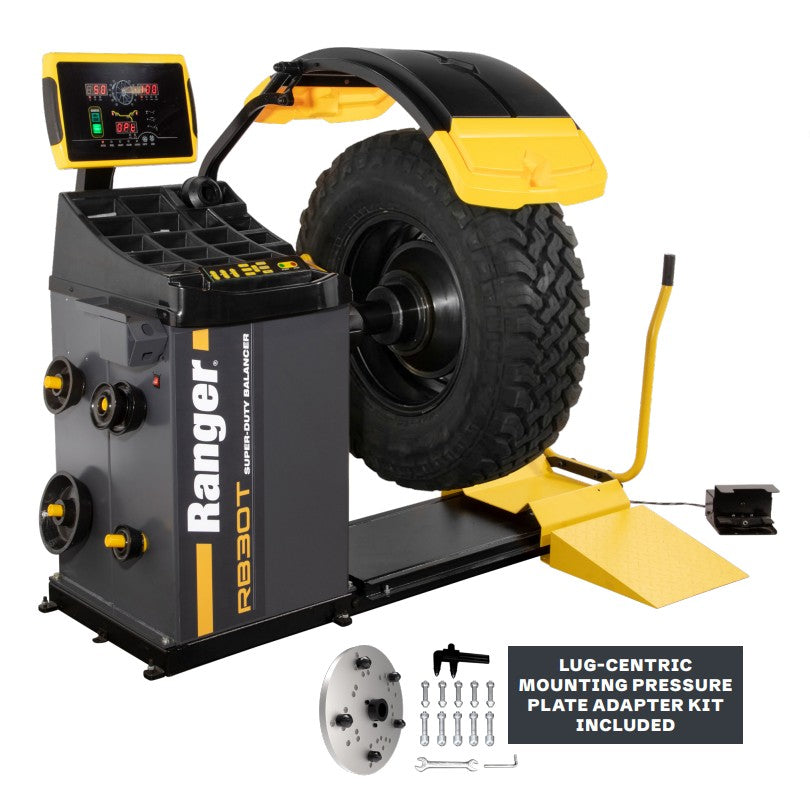

• Includes full heavy-duty cone and commercial adapter kit—everything you need is in the box

• Built-in air regulator and oiler system ensures reliable pneumatic lift operation

• Manual or automatic start options when hood is lowered—customizable for technician workflow

• Touchpad interface with intuitive LED guidance and clear operator prompts

• Error-code diagnostics streamline troubleshooting and service

• Engineered to operate in high-heat, high-humidity environments—up to 122°F and 85% humidity

Specifications:

• Power Supply | 208 – 240V, 50 / 60 Hz, 1 Ph, 1.5A

• Drive Motor | 3 Ph Motor with Solid-State Phase Converter

• Operating Temperature | 32°F – 122°F (0°C – 50°C)

• Drive System | Ribbed Nylon Fiber-Reinforced Drive Belt

• Cycle Time | 7 seconds (Car) / 20 seconds (Truck)

• Balancing Modes | 1 Dynamic / 1 Static / 3 Alloy (ALU1, ALU2, ALUS)

• Wheel Spin Braking | Electronic Pulse / Pneumatic Brake

• Wheel Hold Device | Pneumatic Brake

• Shaft Size | 40 mm

• Centering Cones Included  | Multi-Piece Commercial Adapter Kit

• Max. Tire Diameter | 49.25" (1,250 mm)

• Max. Tire Weight | 330 lbs. (150 kg)

• Wheel Diameter Range | 13" - 24" (330 mm – 610 mm)

• Wheel Width Capacity | 4" - 20" (102 mm – 508 mm)

• Balancing Increments | 0.035 oz (1 gram)

• Balancing Speed | 260 RPM (Car) / 135 RPM (Truck)

• Accuracy / Standard | ± 0.035 oz (1 gram)

• Accuracy / Truck | ± 0.4 oz (12.5 grams)

• Resolution | ± 0.09 oz (2.5 grams)

• FLA | 11A

• Air Source Required | 8-20 CFM, 100–145 PSI (7–10 bar)

• Height, Guard Up | 65" (1,651 mm)

• Height, Guard Down | 52" (1,321 mm)

• Overall Width | 70" (1,778 mm)

• Depth, Cover Up | 67″ (1,016 mm)

• Shaft Size | 1.5″ (40 mm)
• Shipping Weight | 990 lbs. (449 kg)

Standard Accessories:

• Cones ranging from 2" to 11.5"

• Spacer rings

• Jaw chuck cones

• Quick nut

• Reverse bowls and rubber ring

• Calibration weights, calipers and weight pliers

• Motor belt, springs, shafts and hardware

Optional Accessories:

• Adhesive steel wheel weight combo set (5150230)

• Black adhesive steel wheel weights (5150225)

• Silver adhesive steel wheel weights (5150220)

• Wheel weight dispenser, stand only (5328502)

• Wheel weight dispenser, stand kit including stand and weights (5150028)
