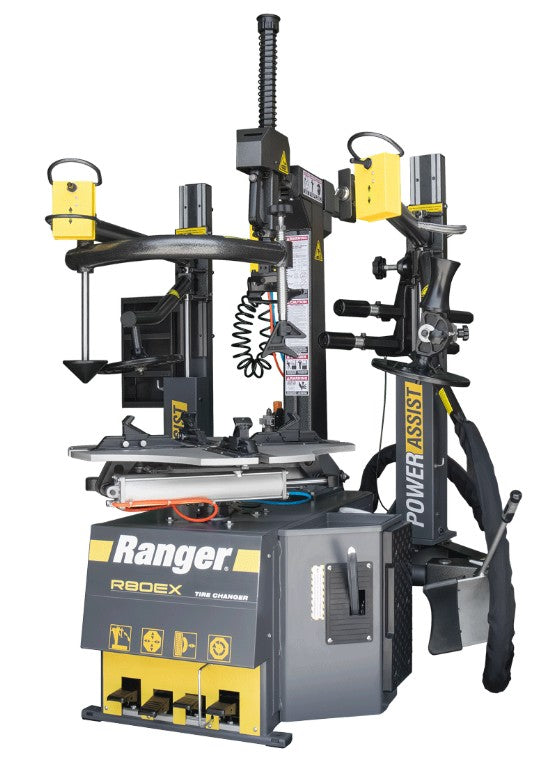

Ranger R80EX Tilt Back Tire Changer w/Dual-Tower Assist & 34" Clamping Capacity

Ranger's Updated and Incredibly Advanced Tire Changer Looking to save time? An R80EX tire changer is a must-have machine for busy shops that don't have a minute to waste. A multi-profile traveling drop-center tool, top bead assist rollers, dual lower bead lifting discs and a nylon non-marring wheel restraint device are important tire shop tools designed to dramatically reduce effort, increase safety and help minimize operator fatigue. A large 34” capacity turntable with adjustable hardened-steel RimGuard wheel clamps helps broaden the service range, so you can handle virtually any wheel that rolls in your shop. Explore this tire machine if your shop life demands a tool that will generously handle round-the-clock use and abuse. Adjustable RimGuard wheel clamps Ranger's trademark wheel clamps feature internal and external multi-teeth jaws. Advanced clamp positioning Variable clamp positioning makes wheel service simple, perfectly controlling the wheels when clamping them. Operators have the freedom to freely and precisely position clamps within the entire clamping range. There's no need for the clamps to cycle the full range. Easier bead lubrication A geometric tabletop provides for easier bead lubrication and allows operators to make visual inspections of the lower bead during mounting and inflation procedures. Power-controlled bead loosener A bilateral, power-controlled bead loosener features single-lever control on the shovel handle. This ergonomic design eliminates traditional foot-pedal controls that often force technicians into unbalanced working stances when loosening beads. Designed for maximum comfort, efficiency, safety and ease of use, this valuable feature helps deliver additional power, speed and control, especially when servicing large or wide assemblies.

Features:

• Dual Pneumatic Cylinders

• Wheel Clamping Method

• 4 Wheel Clamps - Internal / External

• Adjustable RimGuard Wheel Clamps

• Bead Loosener System

• Pneumatic Blade

• Bi-lateral Power-Controlled Bead Loosener

• Bead Loosener Control  Single-Lever Control on Shovel Handle

• Power Assist Towers

• Dual / Left & Right

• Upper Bead Assist Roller

• Standard / Dual Power-Drop

• Traveling Drop-Center Hold Down Device

• Wheel Centering Tool / Inflation Restraint Device

• "Turbo-Blast" Bead Seating System

• Tool Tray / Bin Storage

• Inflation Gauge With Integrated Air Dump Valve

Specifications:

• Speed | Standard

• Motor | 3 HP (220 VAC 50-60 HZ)

• Drive System Type | Electric / Air

• Air Requirement | 110-175 PSI (8-12 BAR)

• Wheel Clamping Method | 4 Clamps - Internal / External

• Table Clamping System | Dual Pneumatic Cylinders

• Bead Breaking System | Pneumatic Blade

• Tower Design | Tilt-Back

• Power Assist Towers | Dual / Left & Right

• Bead Seating System | Turbo Blast / Bead Seating

• Internal Rim Clamping Capacity | 13" - 34" (305 mm - 864 mm)

• External Rim Clamping Capacity | 10" - 30" (254 mm - 762 mm)

• Bead Breaker Tire Width Capacity (Demounting) | 1.5" - 18" (38 mm - 457 mm)

• Maximum Rim Width | 18" (457 mm)

• Maximum Tire Diameter | 47" (1,194 mm)

• Shipping Weight | 1,160 lbs. (526 kg)

• Shipping Dimensions | 46" x 53" x 74"' (1,168 mm x 1,346 mm x 1,879 mm)
