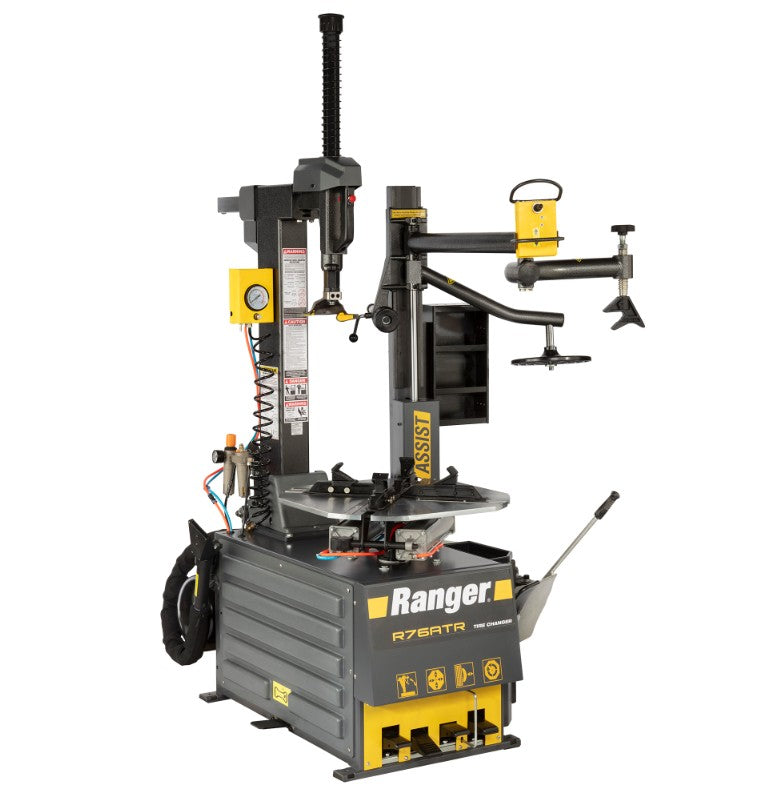

Ranger R76ATR-L Tilt Back Tire Changer

This product requires a forklift provided by the customer at the shipping destination to offload.

Ranger R76ATR-L Tire Changer Tilt-Back Right-Tower Single Assist 30" Capacity

Features:

• Dual Pneumatic Cylinders

• Adjustable Pneumatic Blade

• Tilt-Back Tower Design

• Vertical Shaft / Tool Head Positioning

• Inflation System

• Inflation Gauge & Integrated Air Dump Valve

• Inflation Pressure Regulator/Limiter

• Water Filter

• Oiler / Lubricator

• Air Regulator

• Bead Tool/Tire Iron

• Alloy-Steel Mount-Demount Head

• Nylon Mount-Demount Head

• Large Soap Bucket

• Soap Brush

• TurboBlast Bead Seating System

• Tool Tray / Bin Storage

Specifications:

• Motor | 2 HP (110 VAC 50-60 HZ)

• Drive System Type | Electric / Hydraulic

• Air Requirement | 110-175 PSI (8-12 BAR)

• Wheel Clamping Method | 4 Clamps - Internal / External

• Table Clamping System | Dual Pneumatic Cylinders

• Bead Breaking System | Adjustable Pneumatic Blade

• Tower Design | Tilt-Back

• Power Assist Tower(s) | Single / Right-Side

• Bead Lifting Roller(s) | Single / Right-Side

• Upper Bead Assist Roller | Single / Right-Side

• Vertical Shaft / Tool Head | Pneumatic / Locking

• Powerful Bead Seating System | TurboBlast

• Inside (Wheel) Clamping Range | 10" - 30" (254 mm - 762 mm)

• Outside (Wheel) Clamping Range | 8" - 26" (203 mm - 660 mm)

• Maximum Rim Width | 15" (381 mm)

• Maximum Tire Diameter | 43" (1,092 mm)

• Shipping Weight | 920 lbs. (417 kg)

• Shipping Dimensions | 50" x 50" x 68" (1,270 mm x 1,270 mm x 1,727 mm)

• Recommended Footprint | 60" x 50" x 78" (1,524 mm x 1,270 mm x 1,981 mm)
