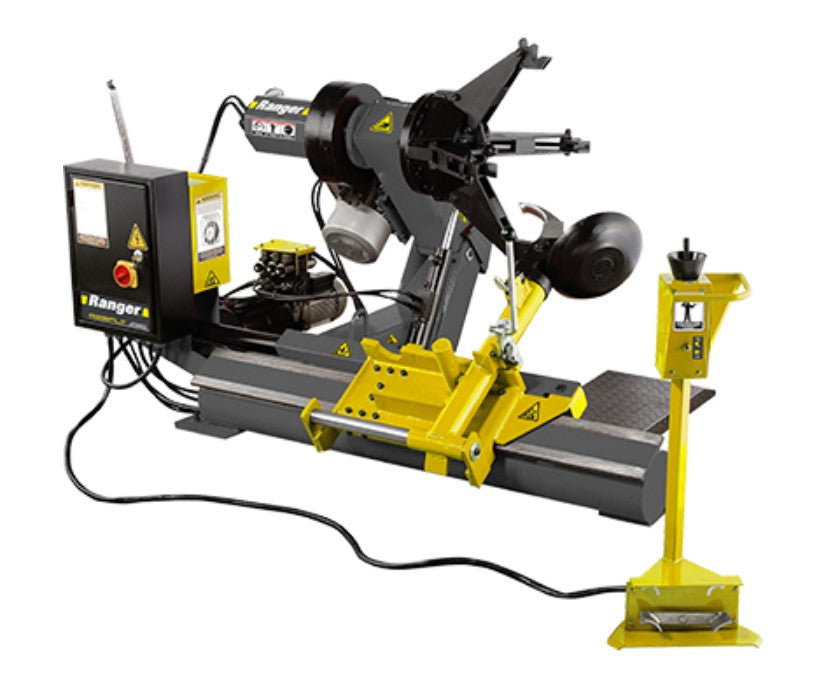

Ranger R26FLT Heavy Duty Tire Changer

This product requires a forklift provided by the customer at the shipping destination to offload.

Heavy-Duty Truck Tire Changer / Joystick Control

The Ranger R26FLT is a heavy-duty tire changer that handles truck, bus and commercial van tires with ease. Comes with joystick control.

Features:

• Super-duty electric motor and hydraulic drive for superior torque and wheel holding power

• Self-centering hydraulic clamping chuck

• Heavy, tapered roller bearings and a dual direction hydraulic motor provide smooth torque

• Quick positioning and locking mount / demount arm

• Hydraulic sled carriage for positioning, bead loosening, mounting and de-mounting procedures

• Single piece frame for superior rigidity

• Hydraulically operated spreader jaws ensure secure clamping of virtually all rims and off-road style wheels

• Massive chuck spindle handles the heaviest loads

• Sturdy spindle, chuck and mount-demount head hydraulically rotates, raises, and
• lowers with simple operator controls

• Very gentle on over-the-road tires and tubeless tires mounted on aluminum wheels

• Simple design is easy to use

• Tire lubrication comes standard

• Funnel comes standard

• Large bead tool comes standard

• Small bead tool comes standard

• Rotary valve O-rings comes standard

• Fuses comes standard

• Wheel clamp comes standard

• Lever grease gun comes standard

Specifications:

• Drive System Type | Electric / Hydraulic

• Standard Voltage | 3 HP (220 VAC 50-60 HZ)

• Wheel Clamping Method | 4 clamps

• Bead Breaking System | Armor-plated Disc

• Max Rim Diameter | 14" – 26" (356 mm – 660 mm)

• Max Tire / Wheel Diameter | 63" (1,600 mm)

• Max Tire / Wheel Width | 31" (787 mm)

• Shipping Weight | 1,425 lbs. (646 kg)

• Shipping Dimensions | 63" x 80" x 38" (1,600 mm x 2,032 mm x 965 mm)
