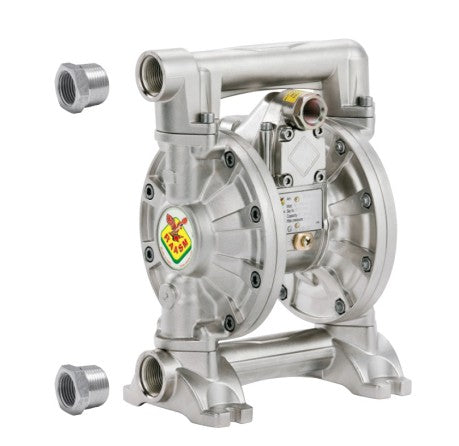

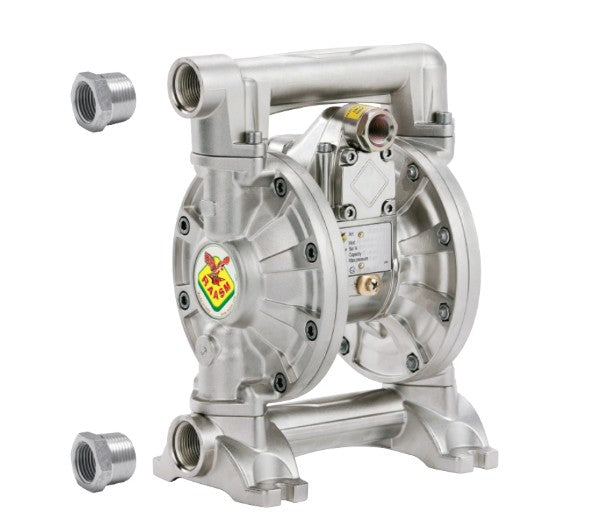

Raasm 3CA/16111NHH-55 Diaphragm Pump

Diaphragm pump in aluminum series AAB-34 with membranes in NBR, balls and seats in Hytrel. With 1/2" adaptors in aluminum.

1:1 for transferring, made of die-cast aluminum; they ensure lasting and reliable operation with the most common automotive and industry fluids.

FLUIDS | Waste oil, fresh oil, antifreeze, windshield fluid, water, diesel fuel

SECTORS AERONAUTIC | Agriculture, automotive, lube truck and industrial vehicle, cleaning, building

INDUSTRY AND ROAD CONSTRUCTION | Railway Transport, Chemical Industry, Manufacturing Industry, Mining, Shipping and Offshore.

CERTIFICATIONS ATEX (ZONE 1) | ATEX (ZONE 21)

Features:

• Flow Rate GPM | 18.5
• Ratio | 1.1
• Max Pressure PSI | 120
• Max Cicles For Minute CPM | 400
• Delivery For Cicles Gallon | 0.05
• Max Suction Lift Feet (') | Dry Column 15 - Wet Column 25
• Max Size Pumpable Solids Inches (") | 0.06
• Max Working Temperature °F | 212
• Noise Level dB | 75
• Max Air Consumption CFM | 28.3
• Air Working Pressure PSI | 29 ÷ 87
• Air Inlet Connection | NPT 3/8" (F)
• Air Outlet Connection (muffler) | NPT 1/2" (F)
• Fluid Inlet Connection | NPT 3/4" (F) and NPT 1/2" (F)
• Fluid Outlet Connection | NPT 3/4" (F) and NPT 1/2" (F)
• Balls For Inlet And Outlet | Ball Valve
• Membranes | NBR
• Balls | Hytrel
• Seats | Hytrel
• Packing No - FT3 | 1-0.7
• Gross Weight lb | 14
