Raasm | SKU:
RAA3616455
Raasm 36164-55 5:1 Oil Pump for 16 Gal Drums
$655.00
Unit price
/
Unavailable
Raasm 36164-55 5:1 Oil Pump for 16 Gal Drums is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

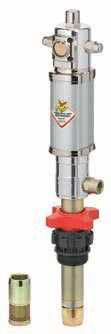

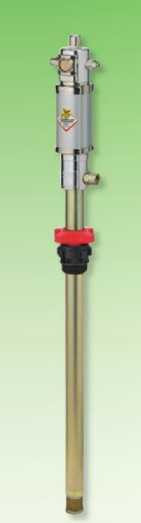

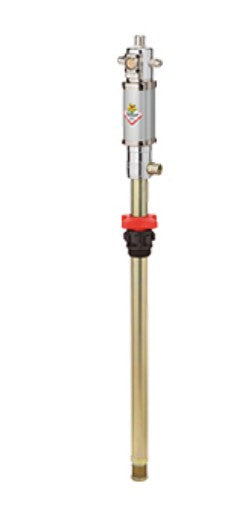

Raasm 36164-55 5:1 Oil Pump
Series 238 air-operated double-acting pumps for medium-distance oil distribution.
Ideal for distributing high-viscosity oil. The double action guarantees the delivery of a continuous and constant flow, ideal for all installations, excellent for long distance distribution. The wall-mounted version of these pumps, mounted on a wall or in a fixed position by means of the special accessories, enables numerous uses through the application of modular extensions.
Features:
- Part #: 36164-55
- Compatible fluids: medium/high-viscosity oil
- Type of seals: NBR
- Suction tube upper body: aluminum
- Suction tube: carbon steel
- Air inlet connection: 1/4" NPT (f)
- Fluid outlet connection: 1/2" NPT (f)
- Air working pressure: 90 - 120 psi
- Air max. pressure: 120 psi
- Noise level: 81 dB
- Deliverable oil temperature: 14 - 122 F
- Max. deliverable oil viscosity: 240 SAE
- Max. air consumption 120 psi: 30 cfm
- Suction tube external diameter: 1.65"
- Suitable for drums or tanks: with drum 16 gal
- Made In Italy
