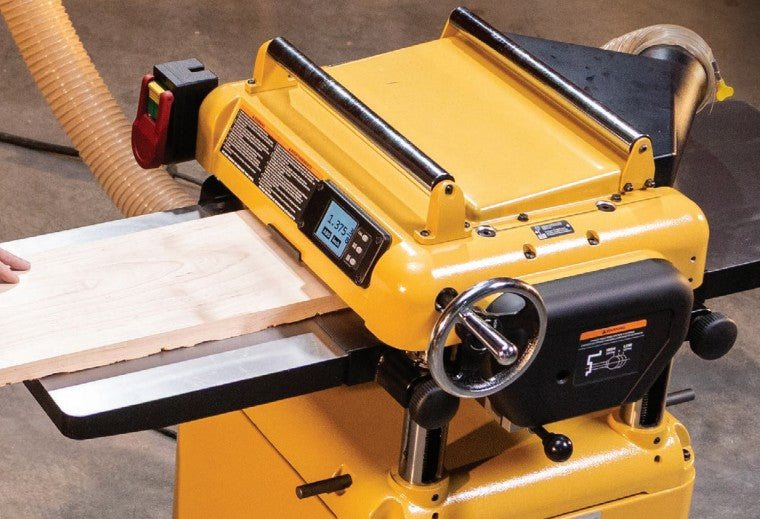

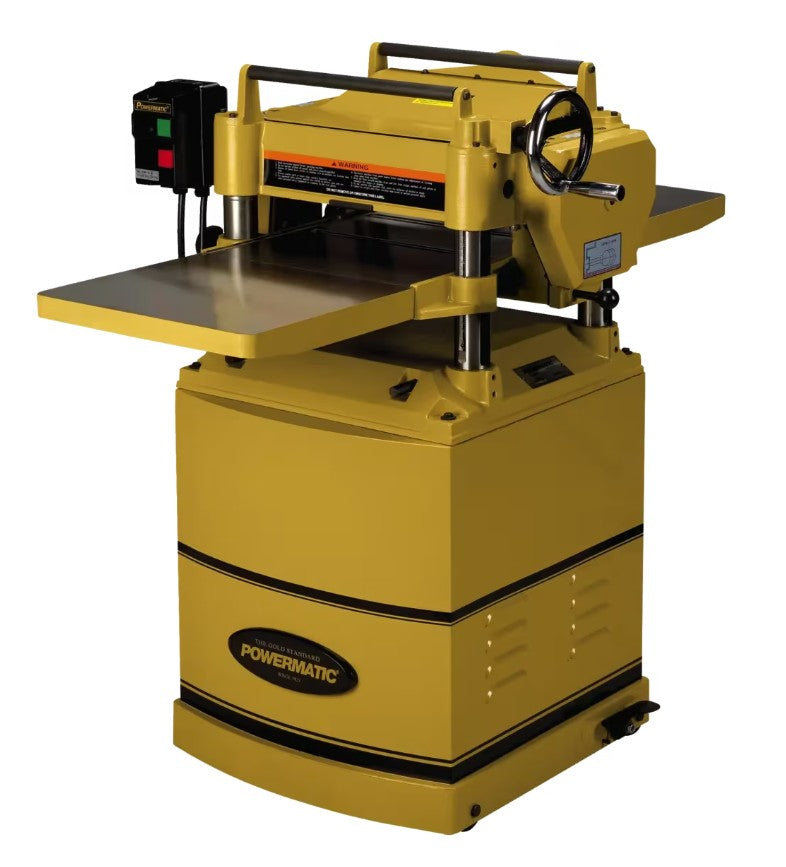

Powermatic PM1-477 15BHH 15" Helical Head Planer

Image may differ than actual item

The Powermatic 15BHH 15" Planer delivers precision, control, and efficiency in every pass. Engineered for smooth, consistent results, it provides exact thickness settings and the stability of heavy-duty cast iron construction. Built for professional shops and production environments, it also supports serious DIY users and educational programs. The 15BHH gives you the confidence to achieve accurate, repeatable results, project after project.

Precision
Built for woodworkers who expect every pass to come back exact. The digital readout, helical cutterhead, and  rigid cast iron tables work together to deliver a finer finish with repeatable accuracy.
Control
Designed to feel stable, secure, and purpose-built while in use. A larger emergency stop, improved caster locking and braking system, and dual lifting handles give you more command from setup through every pass.
Efficiency
Engineered to keep work moving without breaking rhythm. Faster cutterhead access and a bi-directional 4" dust port reduce interruption and support a cleaner, smoother workflow.
Confidence
Backed by Powermatic's Gold Glove Service and an industry-leading 5-year warranty, the 15BHH is built to earn trust long after it is in the shop.

Features:

• Digital Readout

• Improved Large E-Stop

• Improved Caster and Locking System

• 4" Bi-directional Dust Port

• Helical Cutterhead

Specifications:

• Model | 15BHH

• Stock | PM1-477

• Warranty | 5 Years

• Motor Power | 3 HP

• Phase | 1 PH

• Voltage | 230V

• Recommend Circuit Size | 30 amps

• Max. Cutting Width | 15"

• Max. Cutting Thickness | 6"

• Min. Cutting Thickness | 1/8"

• Full Width Cutting Depth | 3/32"

• Min. Planning Length | 8"

• Helical Cutterhead | 4 Rows, 48 Four-Sided Inserts

• Knives (Insert) Size | 0.59"l x 0.59"w x 0.10"h

• Cutterhead Speed | 5,200 RPM

• Cutterhead Diameter | 3"

• Minimum CFM Required | 900 CFM

• Feed Rate | 16/28 FPM

• Main Table Size | 20" x 15"

• Full Table Size | 48" x 15"

• Dust Chute Diameter | 4"

• Full Assembly Overall Dimension | 48"l x 31-1/2"w x 42-3/8"h

• Packaging Overall Dimension | 29-25/32"l x 27-9/16"w x 48-5/8"h

• Net Weight | 411 lbs.

• Shipping Weight | 486 lbs.
