Powermatic | SKU: POW1610082

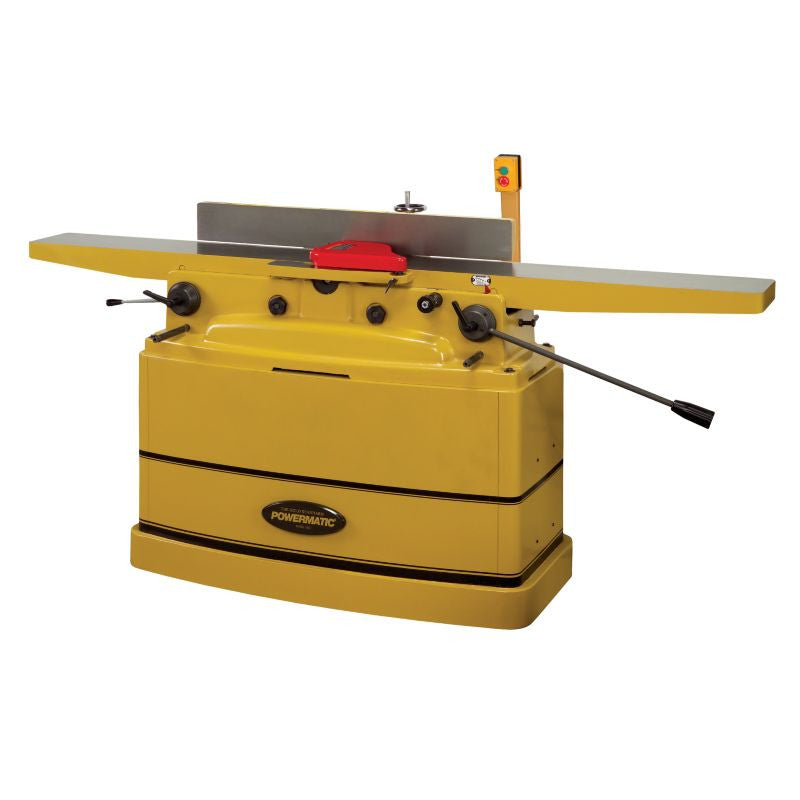

Powermatic 1610082 PJ-882HH 8" Parallelogram Jointer with Helical Cutterhead

$5,202.00

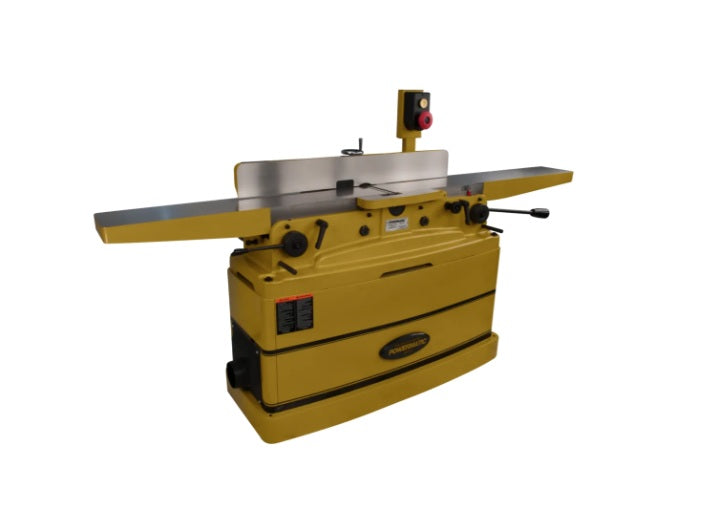

Powermatic PJ-882HH

The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four-sided knife inserts – these produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82” bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of heavy use. The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.

Features:

Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Extra long 82" table for expanded work support
Parallelogram design helps maintain table parallelism and eases table raising and lowering
Handwheel with worm gear system for precise fence tilting (Patented)
1/8" depth of cut limiter for fast table positioning
High-mount switch for operator convenience
No-mar fence insert protects table

Specifications:

Part Number	1610082
Cutting Capacity (W x D)	8 x 1/2 "
Cutterhead Speed	7000 RPM
Cutterhead Diameter	3 1/16 "
Number of Knives (Helical/Standard)	54 four-sided inserts
Standard Knife Size (L x W x T)	0.59 x 0.59 x 0.10 "
Table Height	31 5/16 "
Table Size (L x W)	82 x 8 "
Infeed Table Length	44 "
Outfeed Table Length	38 "
Fence Size (L x H)	44 3/4 x 38 3/16 "
Fence Tilts	45 °
Fence Positive Stops	-45 °, 45 ° and 90 °
Dust Port Outside Diameter	4 "
Dust Collection Minimum CFM Required	450 cu.ft/min
Motor Power	2 HP
Motor Phase	1 Ph
Motor Voltage	230 V
Motor Current	9 A
Model Number	PJ-882HH
Brand	Powermatic
Overall Dimensions	84 x 28 x 44
Height	44 inch
Width	28 inch
Length	84 inch
Net Weight	610 pound
