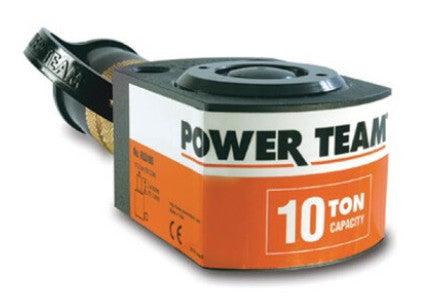

Power Team RLS200

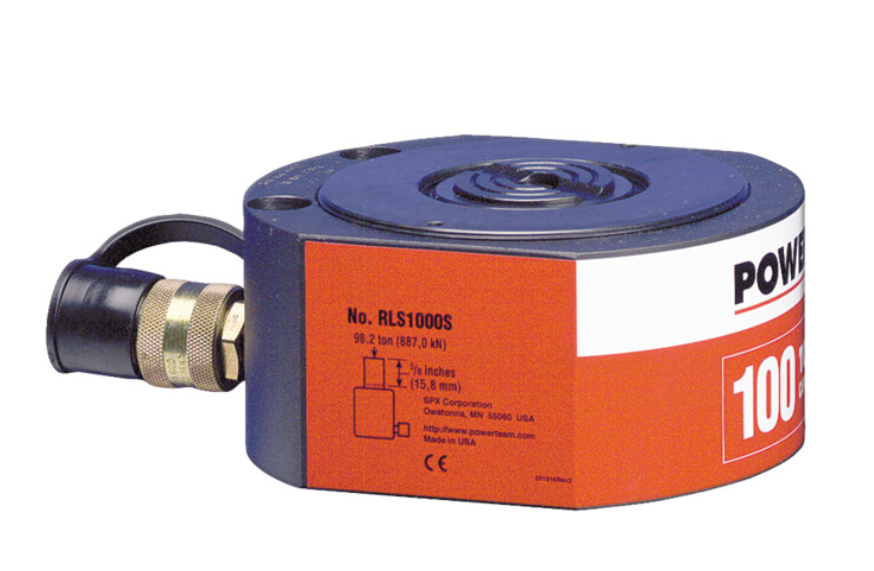

Item may differ than image shown.

Ideal for confined areas from 1 5/8" (266,7 mm) to 4" (542,9 mm) clearance. Cylinder body, piston and gland nut are each Power Team treated for corrosion and abrasion resistance. The RLS Series is designed with the standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) to minimize the effects of off center loading. A unique heavy-duty spring provides fast piston return. A 9796 3/8" NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8" coupler which is not angled). Oil ports are 3/8" NPTF. Couplers on all cylinders, except RLS50, are angled upward for extra clearance.

Features:

• Low height starting at 1.63” to 4”.
• Cylinder body, piston and gland nut are “Power-Tech” treated for corrosion and abrasion resistance.
• Standard domed piston rod (5-30 tons) or swivel cap (50-150 tons) minimize effects of off-center loading.
• Unique heavy-duty spring provides fast piston return on all cylinders, except RLS50.
• Coupler is angled upward for extra clearance.
• Complies with ANSI / ASME B30.1 safety standards.

Specifications:

Compares To:

*For comparison purposes only. Products are not identical.
Enerpac RSM-200
BVA HF2005
Simplex RFS20
