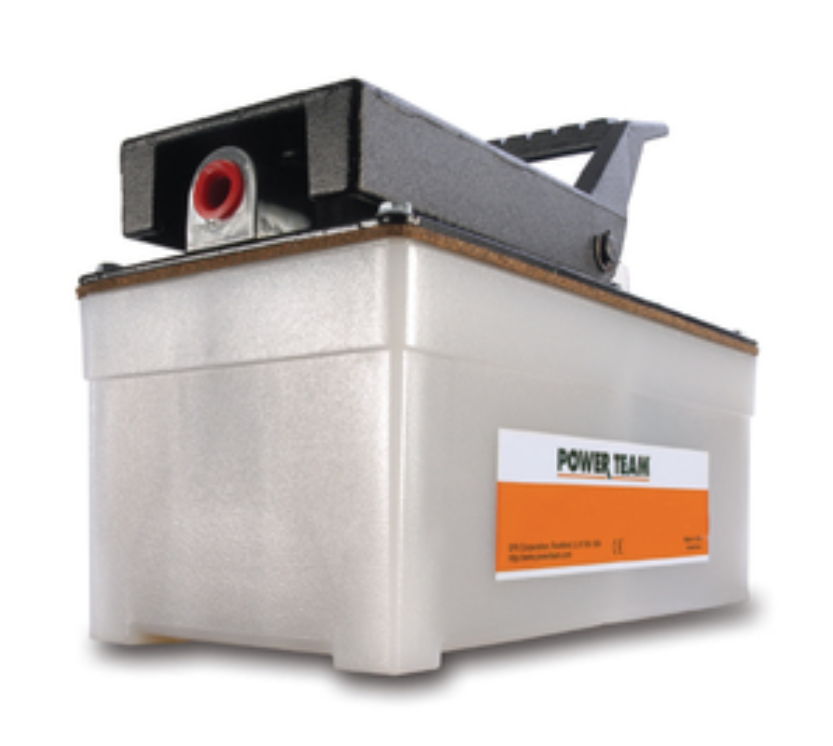

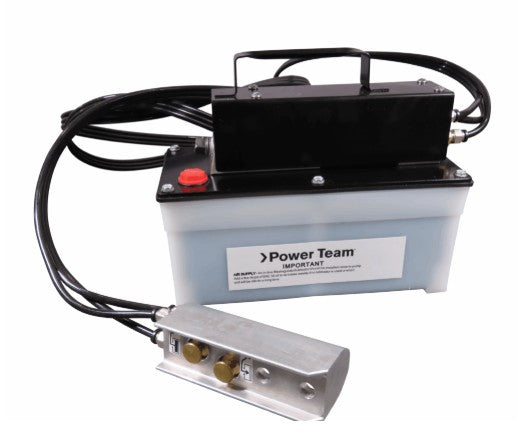

Power Team PA6R Single Acting Hydraulic Air Pump

Images are representative and for illustrative purposes only, actual product may differ from image shown. Ships from Illinois

Compact, lightweight and portable. Single-speed pumps designed to drive single-acting cylinders. Base model pump with high density polyethylene reservoir and 12 foot remote control.

Features:

• AIR/HYD 6 CU IN/MIN, CAP 105 CU IN
• The power unit of choice for major manufacturers of auto body, frame straighteners and other equipment.
• Operate at 40-100 psi shop air pressure at the pump.
• dBA 85 at 10,000 psi.
• Serviceable pump motor is not a “throw away,” providing economical repair.
• Permanently vented reservoir cap.
• Internal relief valve protects circuit components, air inlet filter protects motor.

Specifications:

• Air Supply Required | 40-120 psi (3-8 bar)
• Reservoir Capacity | 105 cu in (1,7 L)
• Reservoir Usable | 98 cu in (1,6 L)
• Oil Port | 3/8" NPTF
• Weight | 20.58 lbs (9,3 kg)
• Overall Dimensions | 7-3/4"h x 5"w 9-1/2"d
