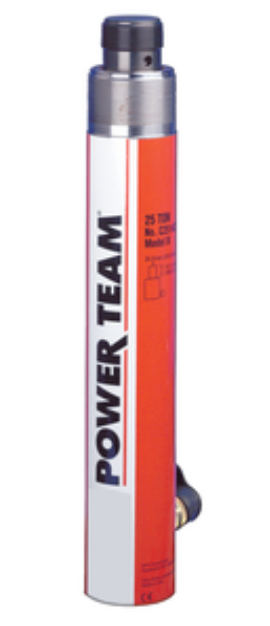

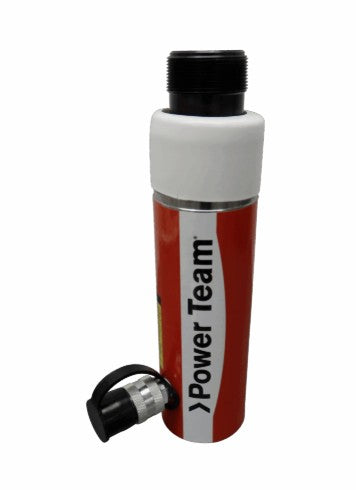

Power Team C256CBT 25 Ton 6.25" Stroke Single Acting Cylinder

Comparable to OTC4106A

Features:

• Threaded cylinder collars, piston rod ends, and internal base threads simplify mounting.
• A 9796 3/8” NPTF female half coupler is standard with each cylinder. Oil port threads are 3/8" NPTF.
• Removable threaded rod cap.
• Factory accessories are do not de-rate tonnage.
• Complies with ANSI / ASME B30.1 Safety Standards.

Specifications:

• Bore Diameter | 2.56"
• Cylinder Effective Area | 5.15 sq in
• Internal Pressure at Capacity (PSI) | 9699
• Oil Capacity | 32.2 cu in
• Stroke | 6.25"
• Tons at 10,000 PSI | 25.8 ton
• Weight | 24.6 lbs

A- Retracted Height | 13.38"
B- Extended Height | 19.63"
C- Outside Diameter | 3.38"
D- Collar Thread | 3.5"
E- Piston Collar Thread Length | 1.94"
F- Base to Port | 1.88"
H- Piston Rod Diameter | 2.25"
K- Rod Protrusion | 1.88"
P- Piston Rod Thread | 2-11.5"
Q- Internal Base Thread | 2-11.5 NPSM
