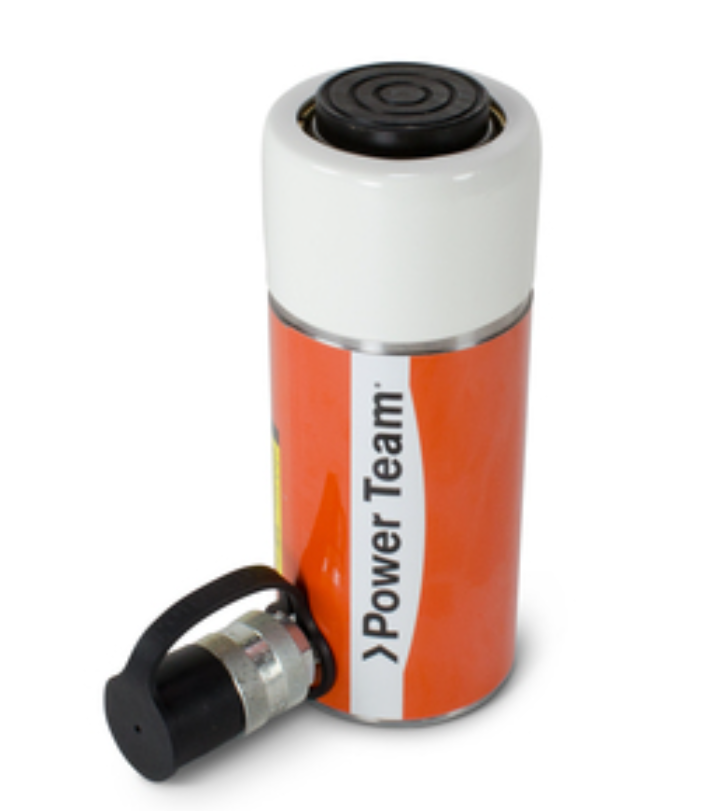

Power Team C254C 25 Ton 4" Stroke Single Acting Cylinder

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Features:

• Retracted Height | 8.5"
• Extended Height | 12.5"
• Outside Diameter | 3.38"
• Collar Thread | 35"
• Piston Collar Thread Length | 1.94"
• Base to Port | 1"
• Piston Rod Diameter | 2.25"
• Piston Rod Internal Thread and Depth | 11"
• Rod Protrusion | 0.38"
• Bore Diameter  | 2.56"
• Cylinder Capacity | 25 ton
• Cylinder Effective Area | 5.15 sq in
• Internal Pressure at Capacity (PSI) | 9699
• Oil Capacity | 20.6 cu in
• Stroke | 4"
• Tons at 10,000 PSI | 25.8 ton
• Weight | 17.6 lbs

Compares To:

*For comparison purposes only. Products are not identical.
Enerpac RC-254
BVA H2504
Simplex R254
