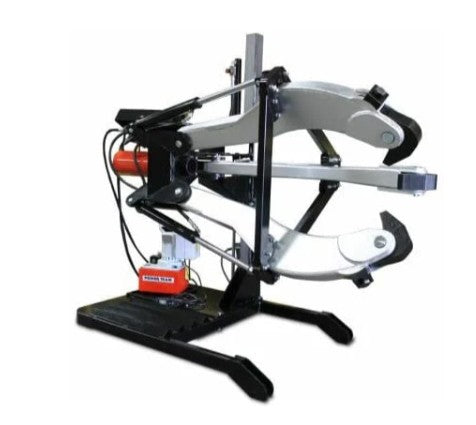

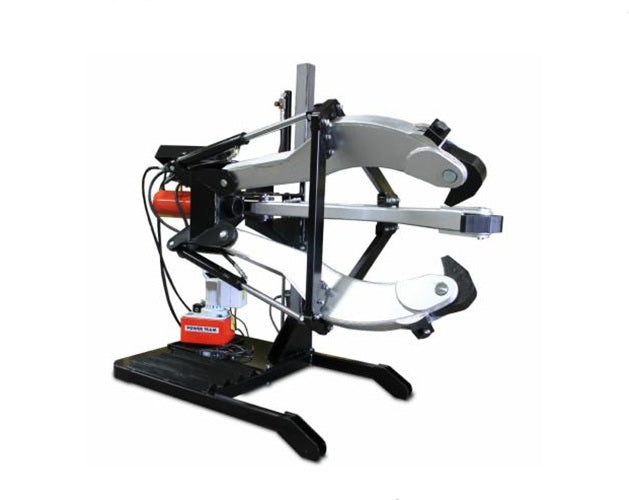

Posi Lock PTPH-100T Portable 100-Ton Hydraulic Puller

Posi Lock’s 100-Ton hydraulic puller systems provide maximum pulling force in applications requiring high-force removal of large gears, pulleys, wheels, sleeves and other press fit parts. 100 Ton pullers are available in 3-jaw, 2-jaw, vertical 2-jaw or 2/3-jaw combination systems. For applications requiring high-force removal of press-fit parts, there is no safer, more efficient solution than Posi Lock.

Features:

• 10,000 PSI electric two-stage pump

• Remote jog switch with 10-foot cord (3.05 m)

• 100-ton cylinder, 10,000 PSI with spring return (10.25 inch stroke)

• Hydraulic-actuated lift cart extends puller from ground to a height of 5 feet (1.52 m)

• Jaws are hydraulically controlled with cylinders

• Multiple pushing adaptors
    (1) 3.5-in. diameter x 9-in. (89 x 229 mm)
    (1) 3.5-in. diameter x 19-in. (89 x 483 mm)
    (1) 3.5-in. diameter x 29-in. (89 x 737 mm)
    (1) Coupler

• Removable transport cart

• Puller can be used in horizontal and/or suspended vertical positions

• Adjustable jaw tips

• Adjustable jaw guides

Specifications:

• Jaws | 3

• Capacity | 100 ton (980 kN)

• Spread | 7.5 to 70" (191 to 1778 mm)

• Overall Length | 77" (1956 mm)

• Reach | 50" (1270 mm)

• Jaw Length | 53" (1346 mm)

• Jaw Tip Width | 1.25" (32 mm)

• Tip Clearance | 3.5" (89 mm)

• Tip Depth | 3.5" (89 mm)

• Weight | 1950 lbs (885 kg)

Options:

• Specialized jaw tips

• Double acting cylinder
