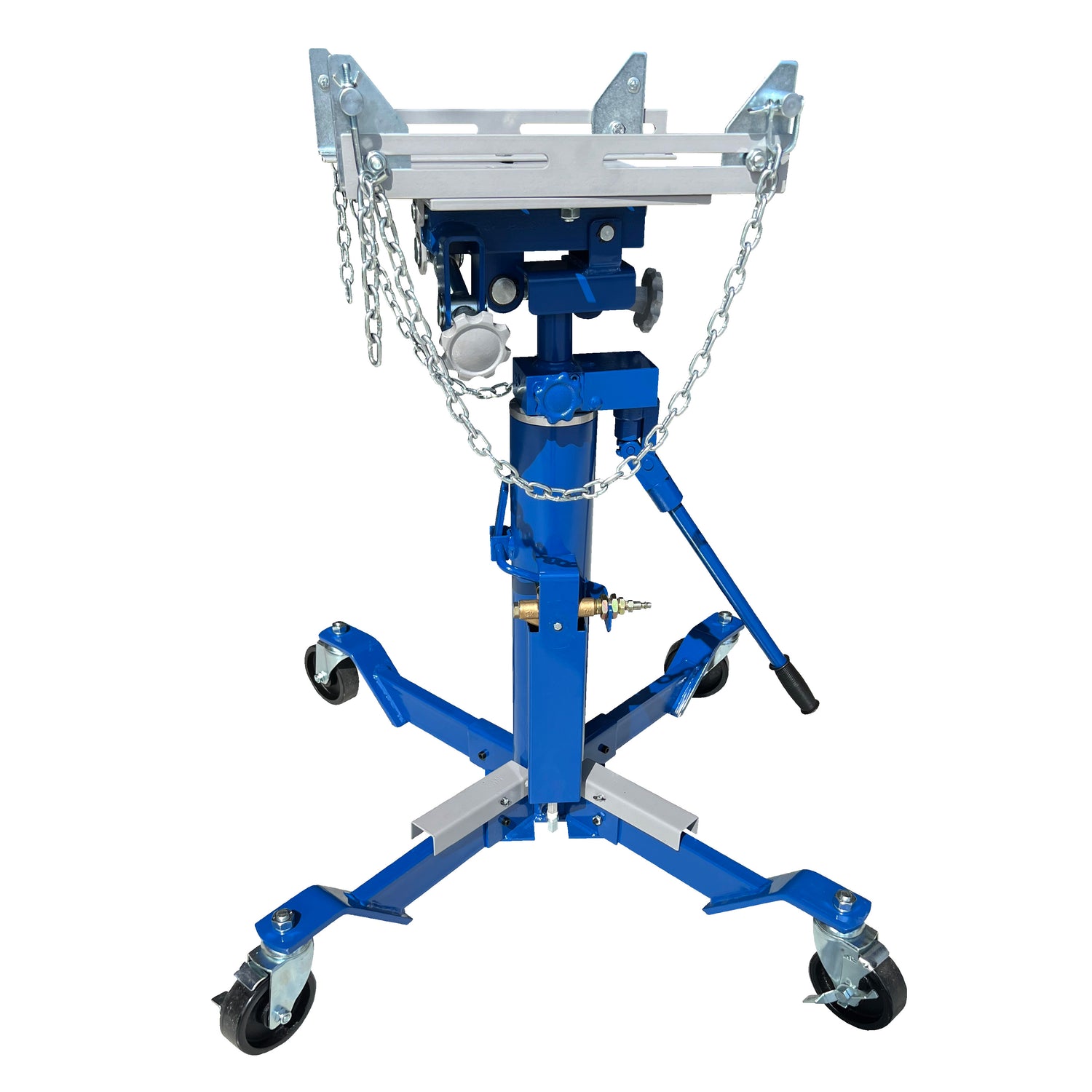

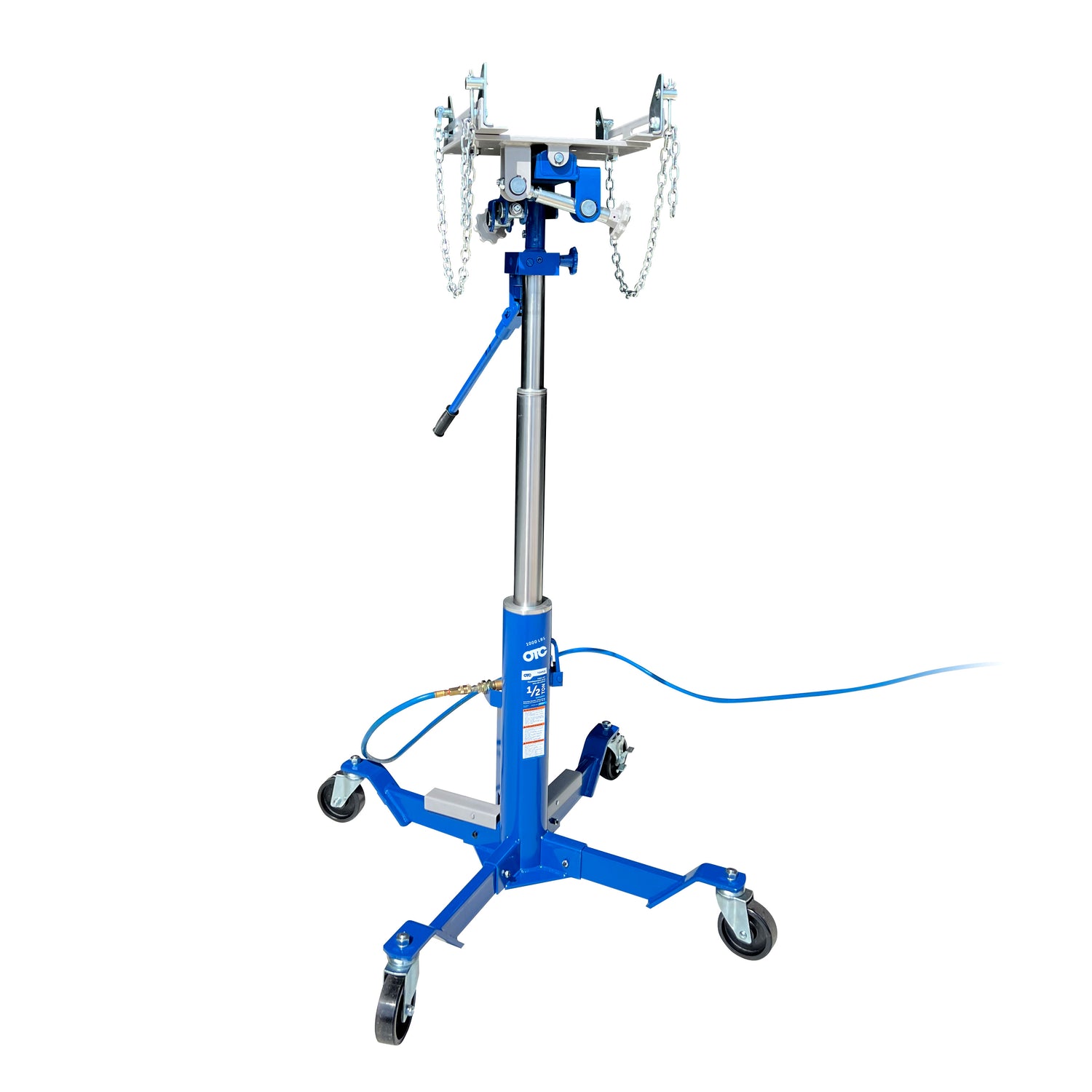

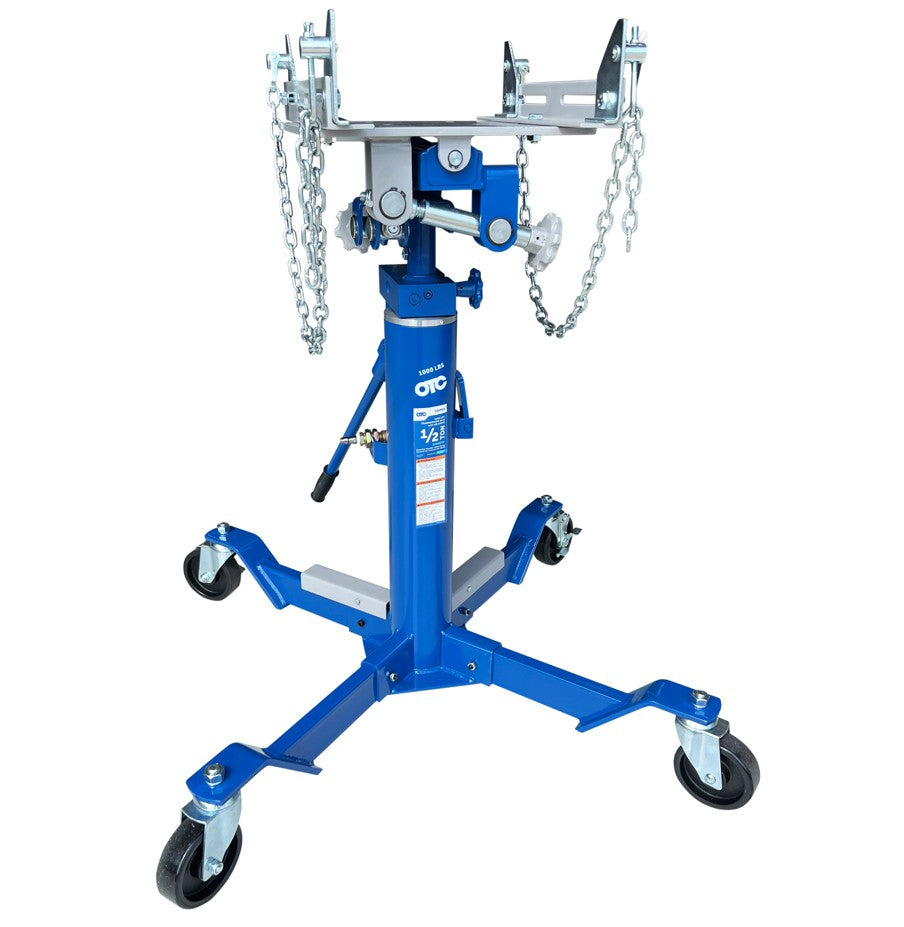

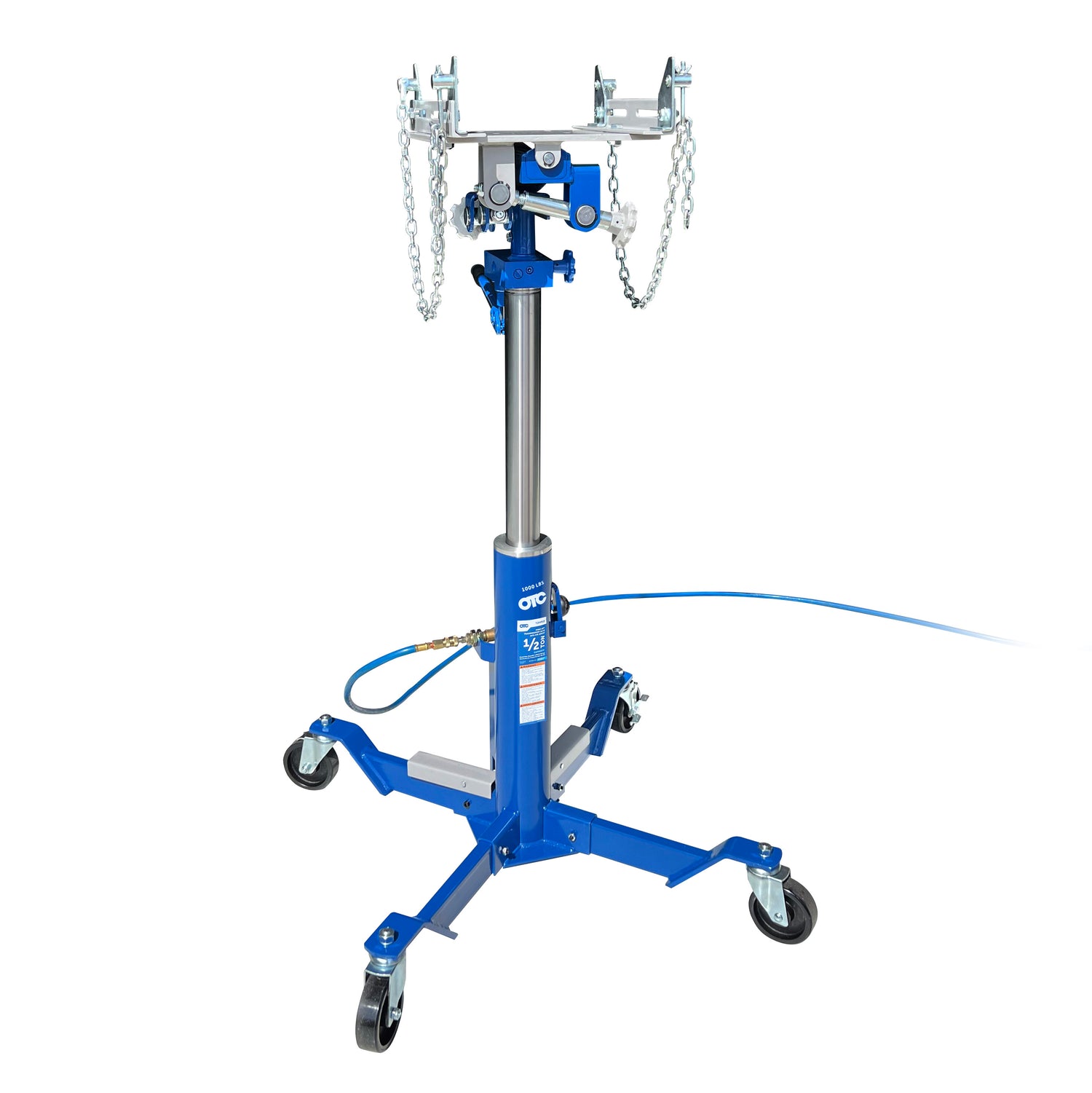

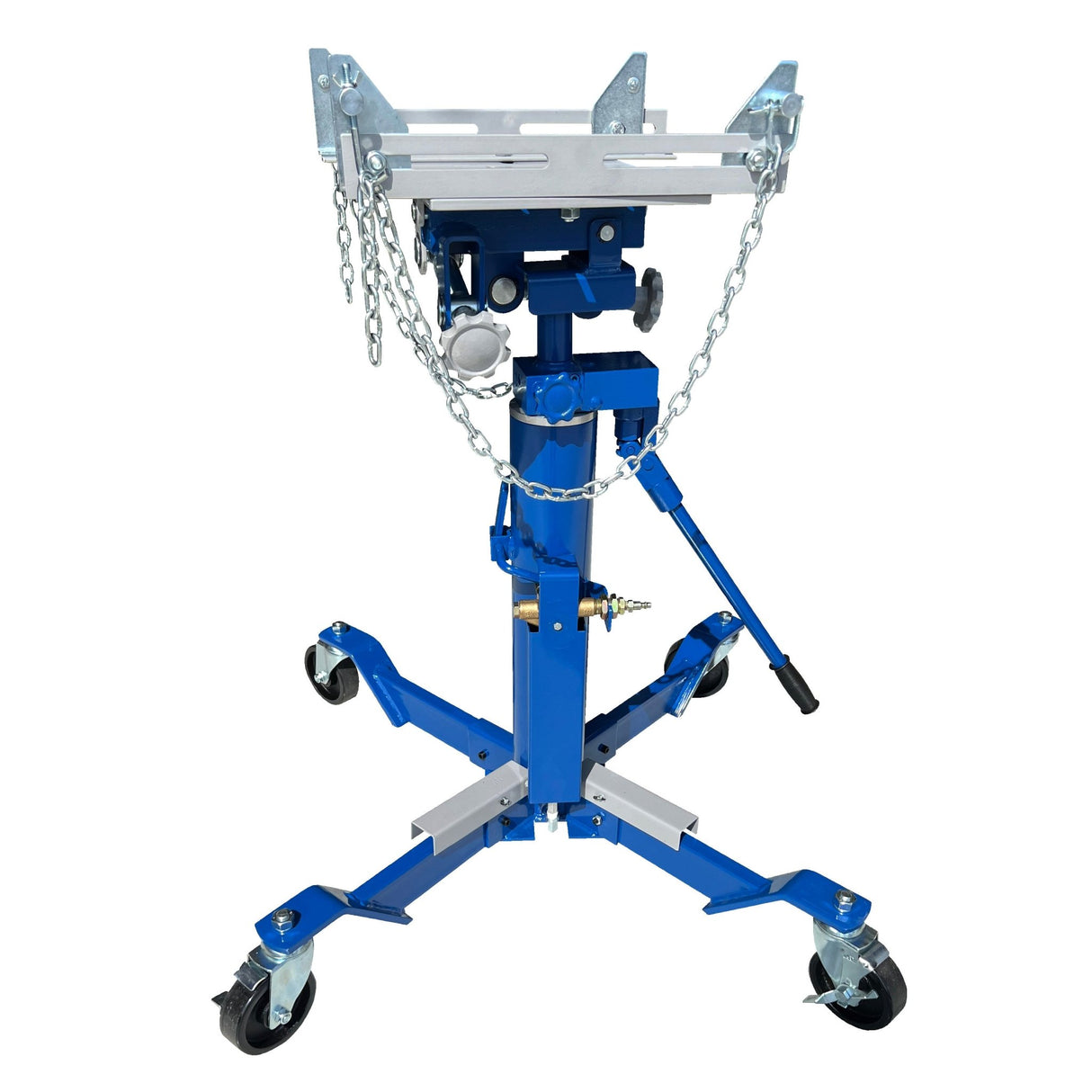

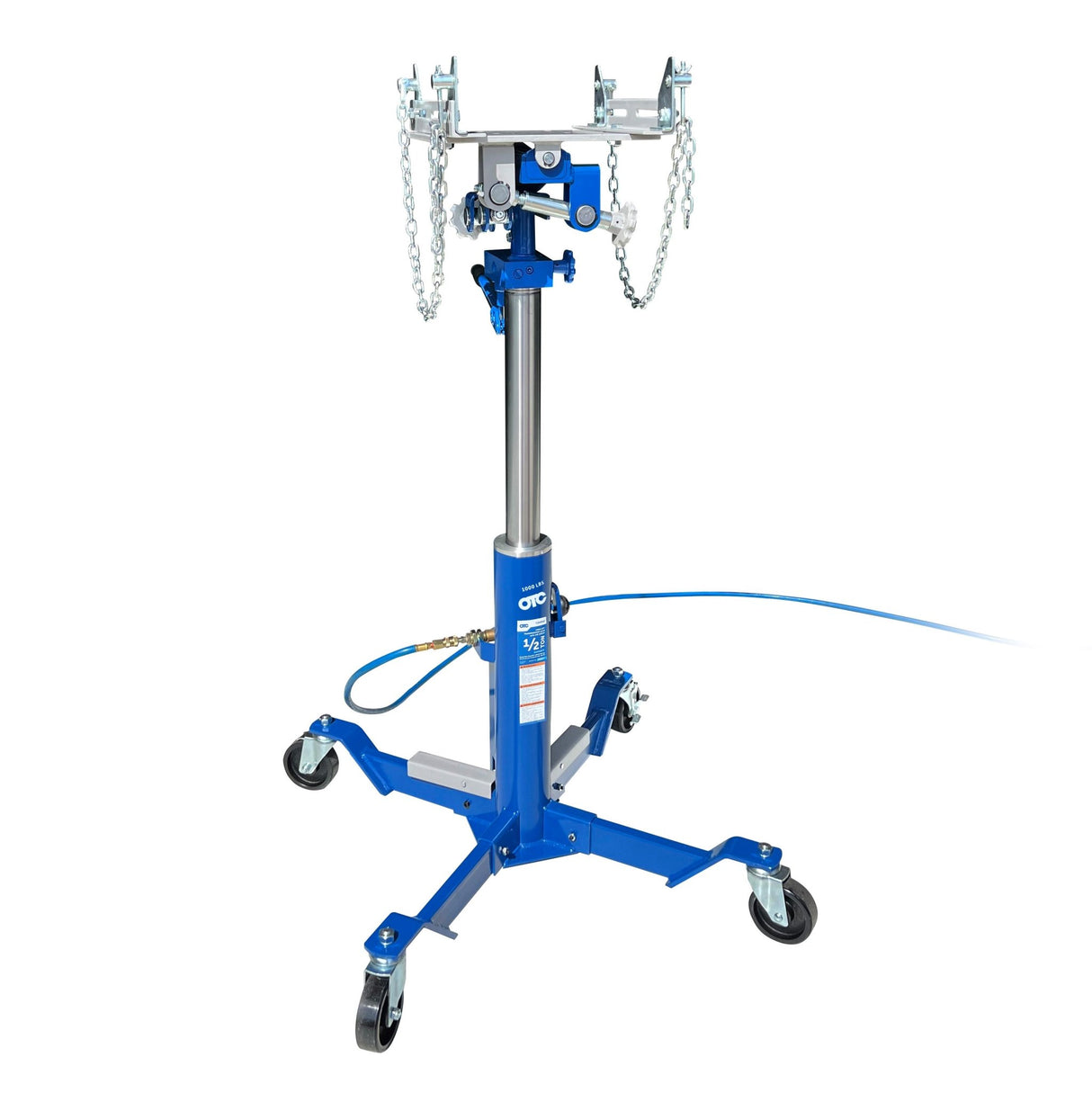

OTC TJHP10 Air and Hydraulic 1,000 lb Capacity High Lift Transmission Jack

A two-stage air/hydraulic high-lift transmission jack with universal saddle, adjustable corner brackets and safety chains for optimum positioning of the load. Foot pedals control the air operation, which lifts the head quickly. A hand pump secondary hydraulic stage allows for precise operator control. Lowering is controlled by a release knob. Ideal size and capacity for the removal and installation of automobile transmissions. Meets all ASME PASE-2019 safety standards. The head tilts front to back and side to side to make removal and installation of transmission and driveline components easier. Big, easy-to-grip knobs make mounting head adjustments simple, and the included safety chains securely hold components during removal, transport and installation. Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life. Specially designed with a wide leg base and oversize 5" polyurethane swivel wheels for smooth maneuvering over rough surfaces and small debris, while providing stability and easy placement during jobs. A built-in safety overload system prevents the jack from being used beyond its rated capacity and two locking casters help keep the jack in position during use.

Includes:

• Hydraulic assembly

• Saddle assembly

• Legs (4X)

• Casters (4X)

• Handle

• Hardware box

• Operating instructions

Features:

• Foot pedals control the air/hydraulic operation, which lifts the head quickly to the work location

• A hand pump secondary hydraulic stage allows for precise operator control

• Universal saddle and adjustable corner brackets and safety chains for optimum positioning of the load

• Head tilts front to back and side to side to make removal and installation of transmission and driveline components easier

• Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life

• Specially designed with a wide leg base and 5" polyurethane swivel wheels for stability and easy maneuvering

• Built-in safety overload system prevents the jack from being used beyond its rated capacity and two locking casters help keep the jack in position during use

• Ideal size and capacity for the removal and installation of automobile transmissions

Specifications:

• Capacity | 1,000 lbs

• Air pressure | 145 PSI

• Min height, retracted | 41.5"

• Max height | 80"

• Forward tilt (max) | 12°

• Side tilt (Max, side/side) | 7°

• Leg width | 40" x 43"

• Wheel size | 5"

• Product Dimensions | 43" × 40" × 41.5"

• Product Weight | 161 lb

• Shipping Weight | 214 lb
