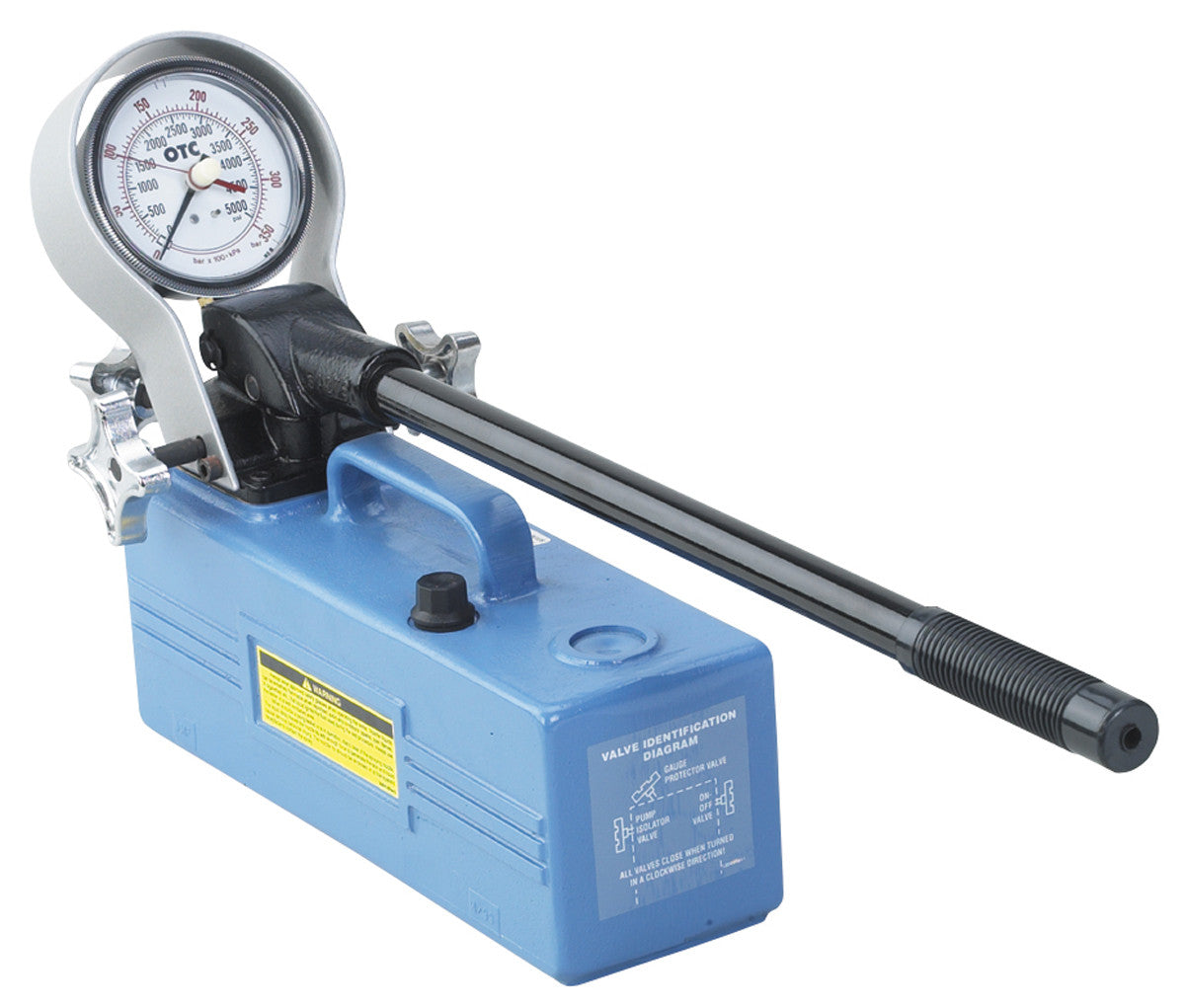

OTC 4200 Diesel Injector Nozzle Tester

Here is the ultimate tool for diagnosing a number of problems that affect diesel fuel injector nozzles. The Nozlrater tester enables you to check for leakage, pop-off pressure, spray pattern, and chatter. This tool will accommodate a wide range of injectors. We also offer adapters so you can troubleshoot nozzles used in popular automotive, agricultural, and construction engines. Nozlrater features a rugged, lightweight reservoir that holds 7/10 of a gallon of fuel. It is equipped with a replaceable 2-micron filter. The large, dual-scale, high-pressure gauge is protected by a guard and includes an indicator needle to record maximum pressure reached. The tester is light enough to be easily carried for field use. Or you can bench-mount it, using the holes in its base. Not designed for Cummins or Detroit injectors.

Specifications:

• Overall Width | 5-3/4"

• Overall Length (includes handle) | 26"

• Overall Height | 11-1/4"

• Weight (empty) | 15 lbs., 10 oz.

• Max. Pressure | 5000 p.s.i. (350 bar)

• Max. Reservoir Capacity | .692 Gallons of diesel fuel (160 cu. in.)

• Usable Reservoir Capacity | .628 Gallons of diesel fuel (145 cu. in.)

• Outlet Port | For 3/8" tube

• Gauge | Calibrated 0-5000 p.s.i. (350 bar). Has 3½" dial face with maximum
• reading indicator needle.

• Gauge Connection | 1/4" NPT female

• Stroke of 1/2" Diameter Piston | 3/4"

• Volume Per Full Stroke | .147 cu. in. (2.4 cc)

• Intake Filter | 2 Micron

• Weight |  15 lbs., 10 oz.
