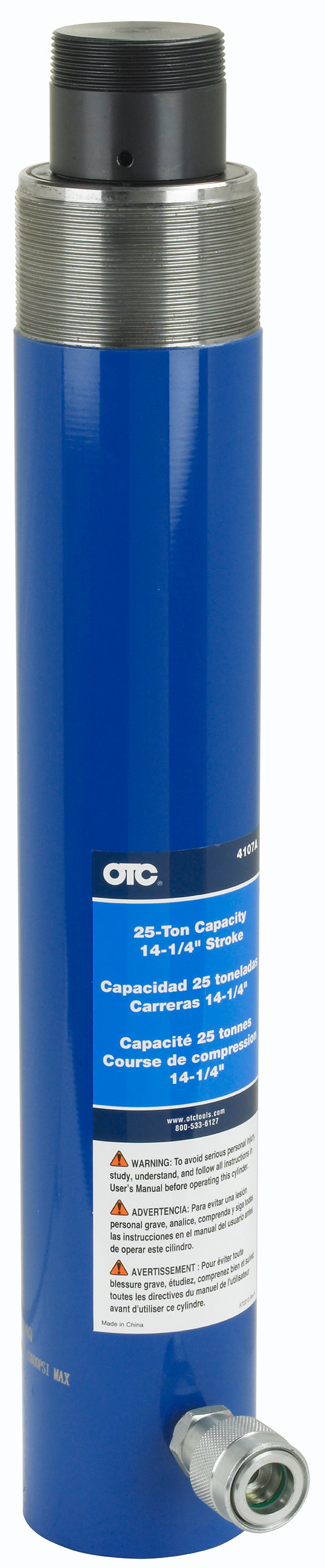

OTC 4107A 25 Ton RAM with Half Coupler, Long, 14-1/4" Stroke

This single-acting, spring-return ram has a capacity of 25 tons and a maximum working pressure up to 10,000 PSI; 2 to 1 safety factor on material yield; designed and tested to meet ANSI B30.1. Standard stroke length of 14-1/4", this compact ram requires a minimum of mounting space. The ram features a threaded ram collar and internal base thread to simplify mounting. Also, it has a threaded piston rod end. OTC's design ensures positive, leak-resistant sealing throughout all pressure ranges, yet full piston return characteristics are maintained. Additional bearing surface has been designed into this unit, to effectively resist the punishing stress exerted by off-center loads.

Features:

• Single-acting, spring-return ram

• Maximum working pressure up to 10,000 PSI

• 2:1 safety factor on material yield

• Designed and tested to meet ANSI B30.1

• Compact design requires minimum mounting space to deliver maximum force

• Threaded ram collar and internal base thread to simplify mounting

Specifications:

• Capacity | 25 tons

• Stroke | 14-1/4"

• Collapsed Height | 21-3/8"

• Extended Height | 35-5/8"

• Oil capacity (cu.in.) | 73.5

• Dimensions | 24" x 5.25" x 8.5"

• Weight | 43 lbs
