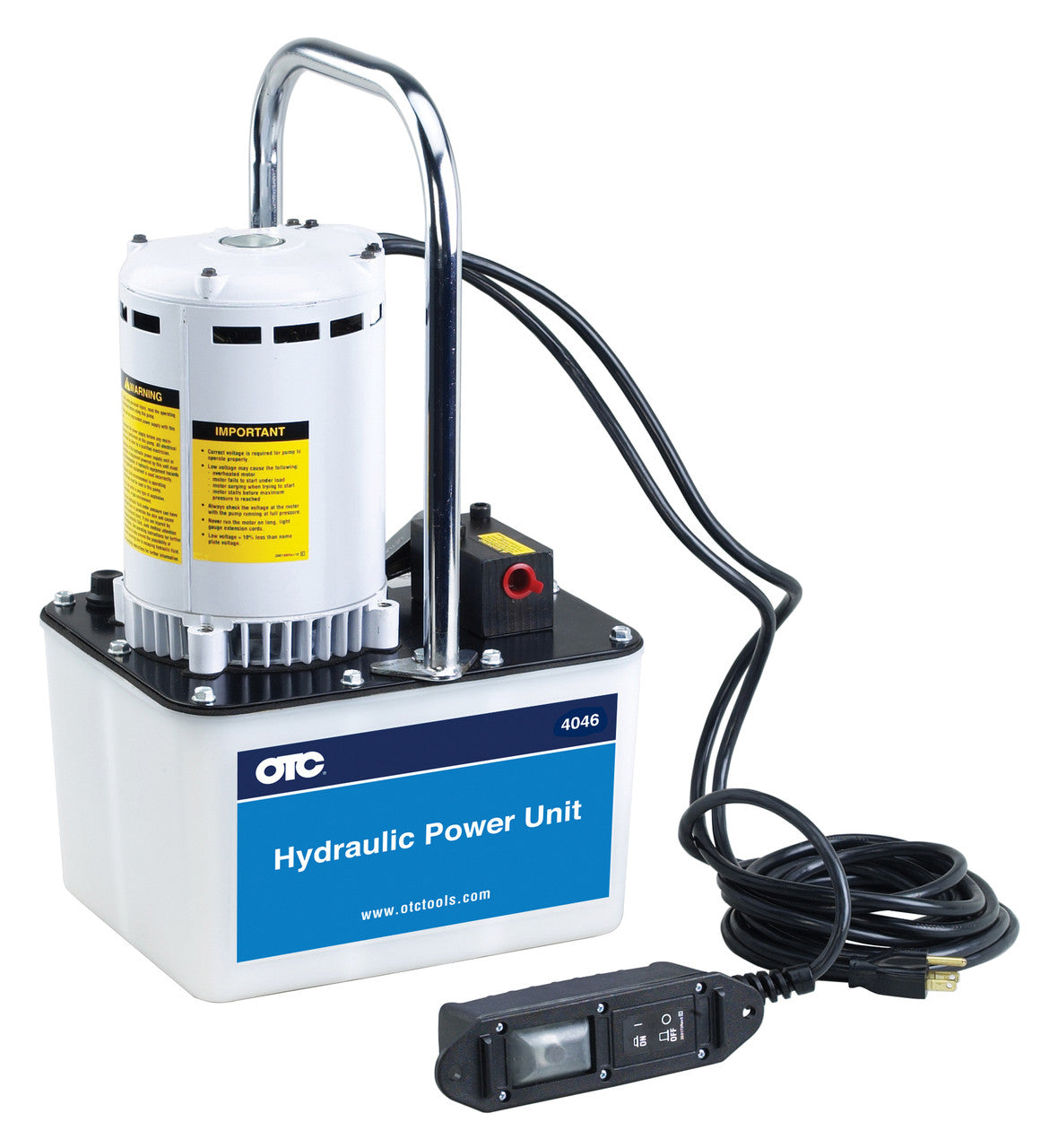

OTC 4046 Two-Stage Electric/Hydraulic Pump with 3-position/4-way Manual Valve

Equivalent to Power Team PE174

They're called “RamRunners” and that's just what they do…run large single- or double-acting rams for fast frame straightening, wheel alignment, etc. They deliver up to 45 cu. in./min. at max. operating pressure of 10,000 PSI. The 4044 has a 2-position/2-way valve with “advance” and “return” positions and is for use with single-acting rams. The 4046 and 4057 have a 3-position/4-way valve with advance,” “hold,” and “return” positions; for use with double-acting or multiple single-acting rams. Nos. 4044 and 4046 are equipped with a 1/2 h.p. single-phase, 60 Hz, 115 volt thermal protected electric motor and are designed to start under load. No. 4057 has a 1-1/2 h.p. electric motor. The RamRunners also feature a 6 ft. remote control cord for “on/off” control. One gallon and two quarts of oil are supplied.

Features:

• Max pressure 10,000 PSI

• RPM 3,450

• Voltage 1/2 HP; 115 volt, 60 Hz, single-phase

• Reservoir capacity 1.9 gallons

Specifications:

• Dimensions | 21.9 × 10.5 × 20.6

• Weight | 57 lb
