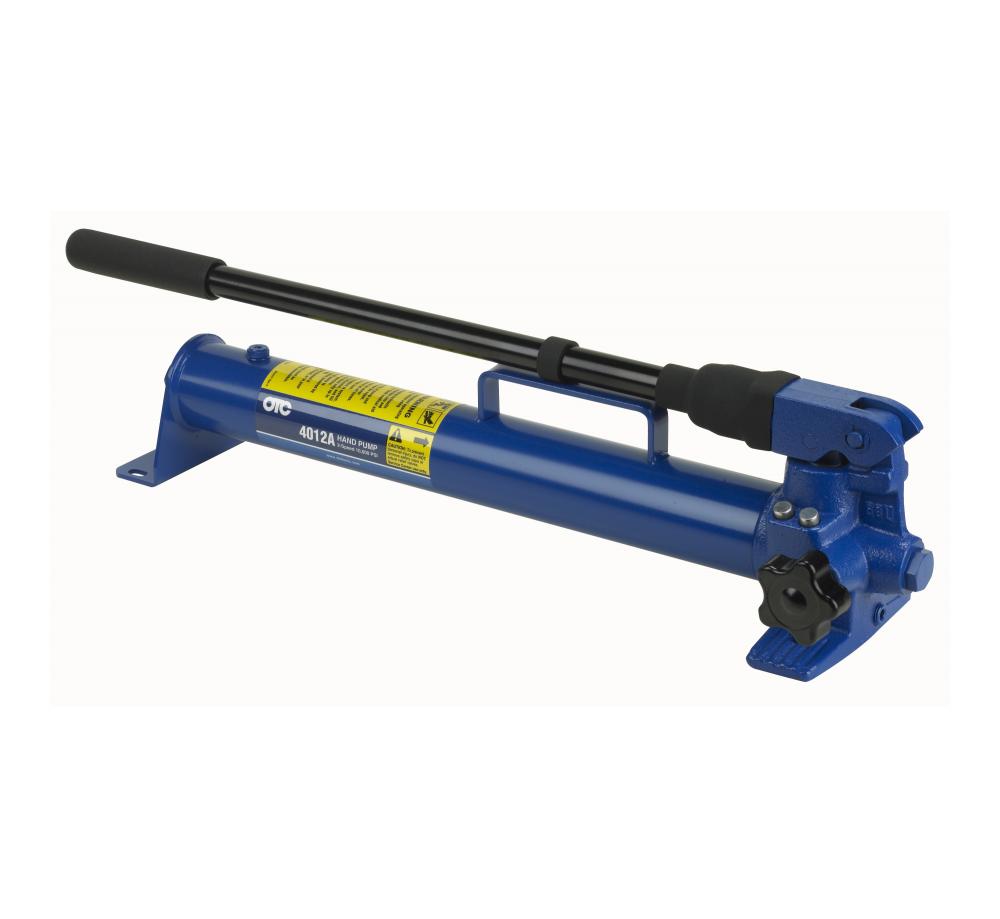

OTC 4012A Two-Speed Hand Pump

Two 4012A two-speed hand pump's all-metal construction almost eliminates the chance of leaking, or damage to the pump from regular use or accidents. It's the perfect pump for use with single-acting rams or combinations where 45 cu. in. of usable oil capacity will do the job. Has 2-way valve; welded steel carrying handle; automatic switching from low to high pressure mode; handle effort under 140 lbs. at 10,000 PSI; unique fill cap to prevent over-filling and over-pressurization; non-vented reservoir; fingertip control valve with 180 degrees throw for on/off control. In other words, this pump has it all!

Specifications:

• Maximum Pressure | 1st - 325 PSI, 2nd - 10,000 PSI

• Volume Per Stroke | 1st - .662 cu. in., 2nd - .160 cu. in.

• Piston Diameter | 3.8"

• Piston Stroke | 13/16"

• Reservoir Capacity | 55 cu. in. (45 cu. in. usable)

• Oil Port | 3/8" NPTF

• Dimensions | 7.1 × 24 × 10.1

• Weight | 18.55 lb
