OTC | SKU:
OTC4004
OTC 4004 2 Speed Hydraulic Hand Pump
$1,133.00
OTC 4004 2 Speed Hydraulic Hand Pump is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489

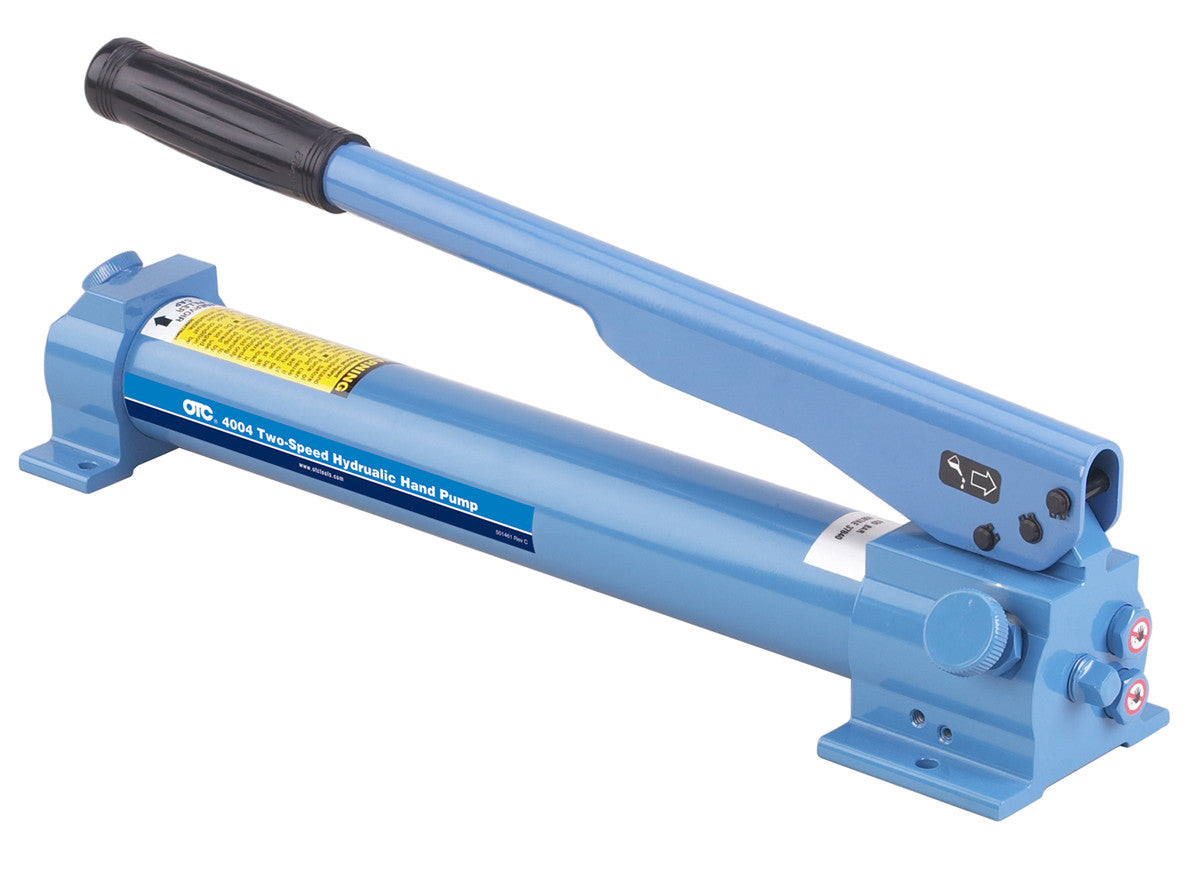

OTC 4004 2 Speed Hydraulic Hand Pump
Use with single-acting hydraulic rams. Rugged all-metal construction. Maximum handle effort is 90 lbs. Two-speed action provides rapid approach of ram piston to the work. An appropriate and economical power source for applications in which 20 cu. in. of usable oil is adequate.
Features:
- Maximum operating pressure 10,000 PSI
- Volume per stroke (first stage) .305 cu. in.
- Volume per stroke (second stage) .091 cu. in.
- Reservoir capacity 24.4 cu. in.
- Oil port 3/8" NPT
Specifications:
- Dimensions | 7.2 × 7.7 × 20
- Weight | 9.95 lb
