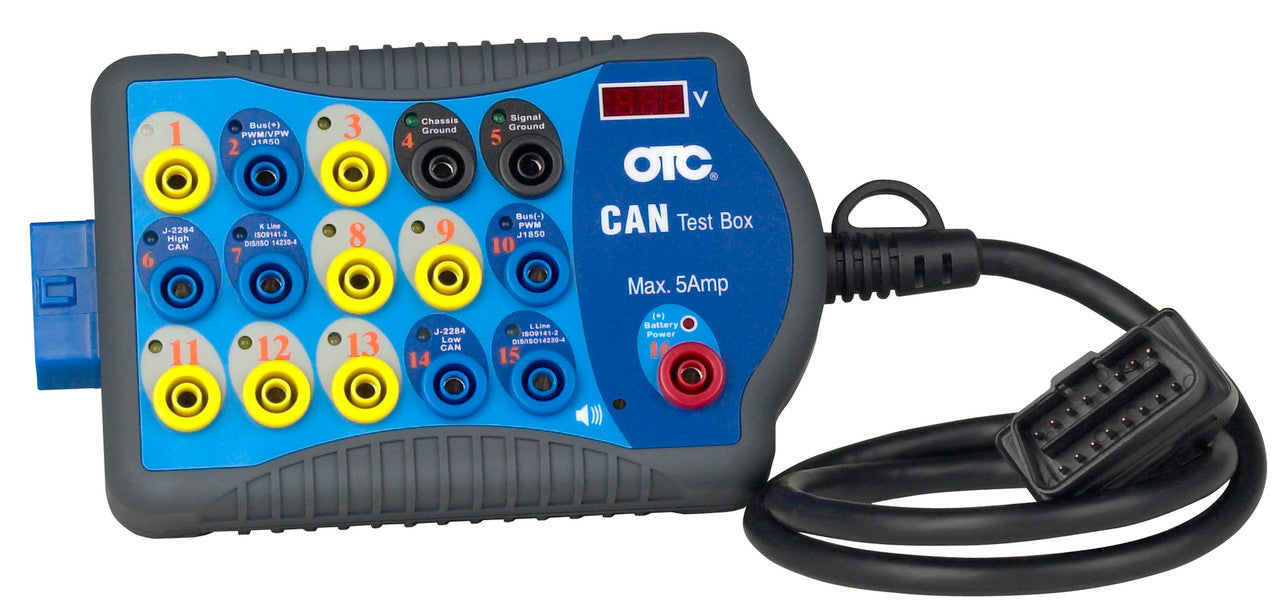

OTC 3415 CAN Test Box

BREAK OUT THE BOX - Connect, Detect, Monitor Voltage and more.

Use this tool for diagnosing electrical faults and CAN bus line activity. Check power and ground circuits, check active protocol lines, or connect a multimeter or oscilloscope for detailed signal analysis.

Features:

• Connects between Diagnostic Link Connector (DLC) and scan tool

• Detects data and protocol communication

• Monitors system voltage – Display and high/low alarm

• Connect leads for increased diagnosis, analysis, and monitoring

Functions:

• Verify ECU activity

• LEDs at pin-out display signal detection, Flashing LEDs for ECU activity

• Monitoring of OBDII data lines

• Probe lines with scope or multimeter for detailed signal information

• Check & monitor battery voltage

• Continuous numeric display or voltage

• Alarm warning when voltage drops below 11.6v or rises above 15.2v

Specifications:

• Dimensions | 9.5 × 4.75 × 2.75

• Weight | 0.75 lb
