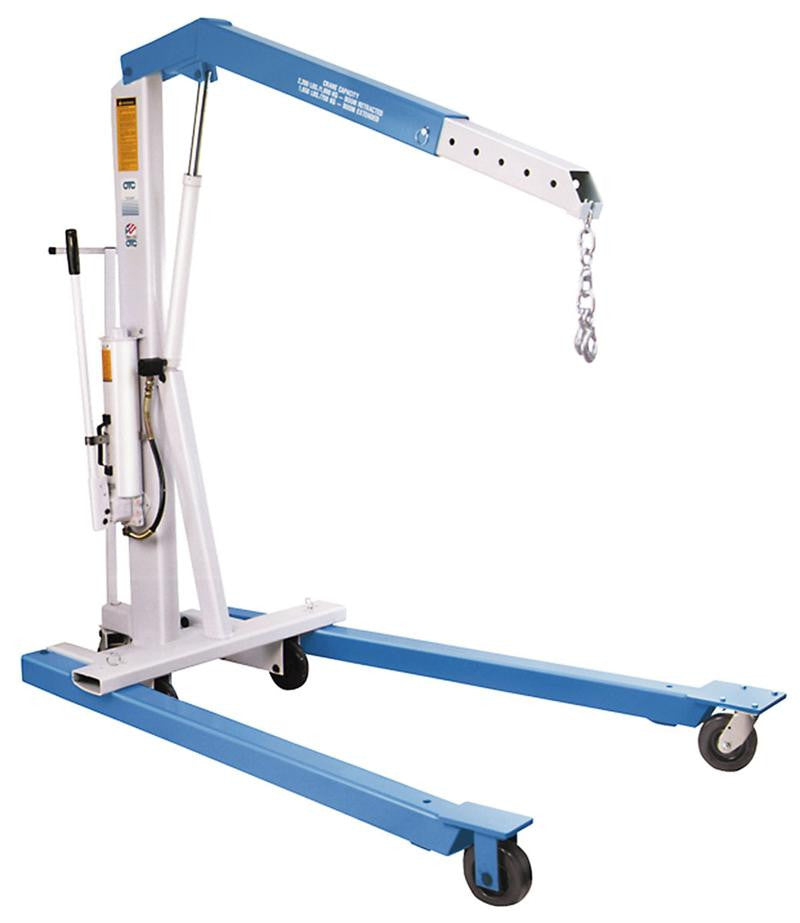

OTC 1820 4,400 lb. Floor Crane

To conserve valuable floor space, crane folds into a compact package for storage. For “close-in” work, leg spread adjusts to clear vehicles wheels, telescoping boom extension gives additional reach. Roller bearing mounted wheels and steering dolly provide ease of mobility, A two-speed hydraulic hand pump provides fast boom travel. Descent of boom is under precise control of operator.

Specifications:

• Capacity Boom Retracted | 4,400 Lb

• Capacity Boom Extended | 3,300 Lb

• Maximum Boom Height, Boom Retracted | 111"

• Maximum Boom Height, Boom Extended | 122"

• Overall Height, Boom Horizontal | 82"

• Overall Length | 89"

• Minimum Throat Width | 25"

• Inside Leg Length | 57½"

• Effective Boom Reach (Retracted) | 35½"

• Effective Boom Reach (Extended) | 50½"

• Inside Leg Width (3 Positions) | 26", 40", 52½"

• Leg Height | 9½"

• Dolly Wheel Diameter | 5"

• Wheel Diameter | 8"

• Height, Folded | 86"

• Floor Space Folded | 31" x 42"
• Lifting Chain | 18-3/8"
• Dimensions | 32 × 41.5 × 85
• Weight | 618 lbs
