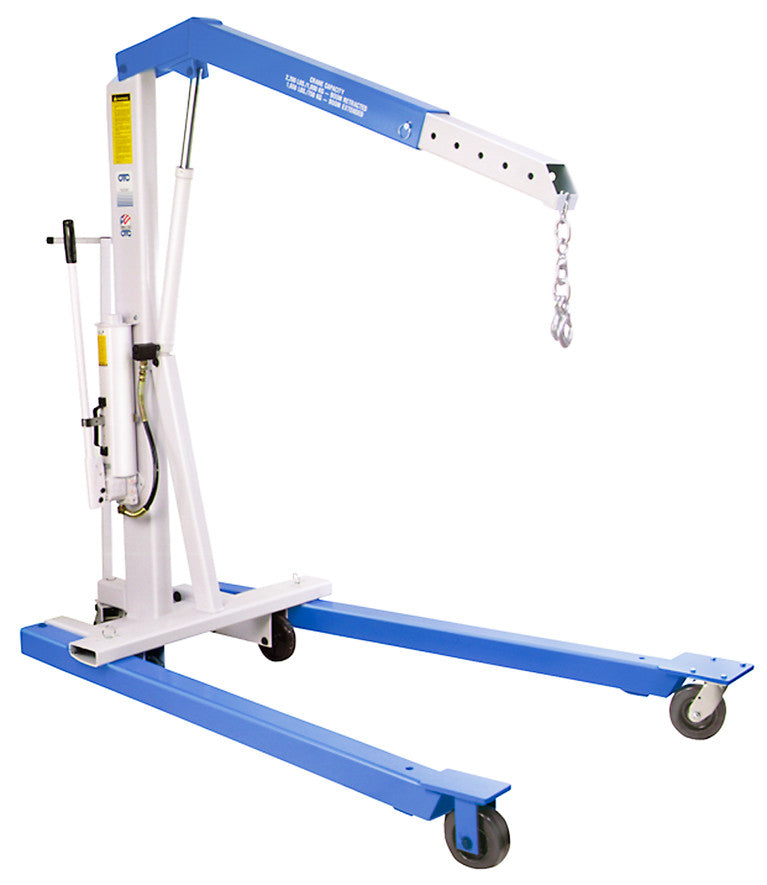

OTC 1819 2,200 lb. Floor Crane

To conserve valuable floor space, crane folds into a compact package for storage, For "close-in" work, leg spread adjusts to clear vehicle's wheels, telescoping boom extension give additional reach. Roller bearing mounted wheels and steering dolly provide ease of mobility, Two-speed hydraulic hand pump provides fast boom travel. Descent of boom is under precise control of operator.

Specifications:

• Capacity Boom Retracted | 2,200

• Capacity Boom Extended | 1,650

• Max. Boom Height, Boom Retracted | 107"

• Max. Boom Height, Boom Extended | 117"

• Overall Height, Boom Horizontal | 80"

• Overall Length | 83"

• Minimum Throat Width | 24"

• Inside Leg Length | 54"

• Effective Boom Reach (retracted) | 33"

• Effective Boom Reach (extended) | 48"

• Inside Leg Width (3-position) | 24", 36", 48"

• Leg Height | 8"

• Dolly Wheel Diameter | 5"

• Wheel Diameter | 6"

• Height, folded | 79"

• Floor Space Folded | 27" x 38"
• Lifting Chain | 16-7/8"
• Dimensions | 30 × 38 × 80

• Weight | 454 lbs
