OTC 1682 17.5, 30, and 50 Ton Master Puller Set

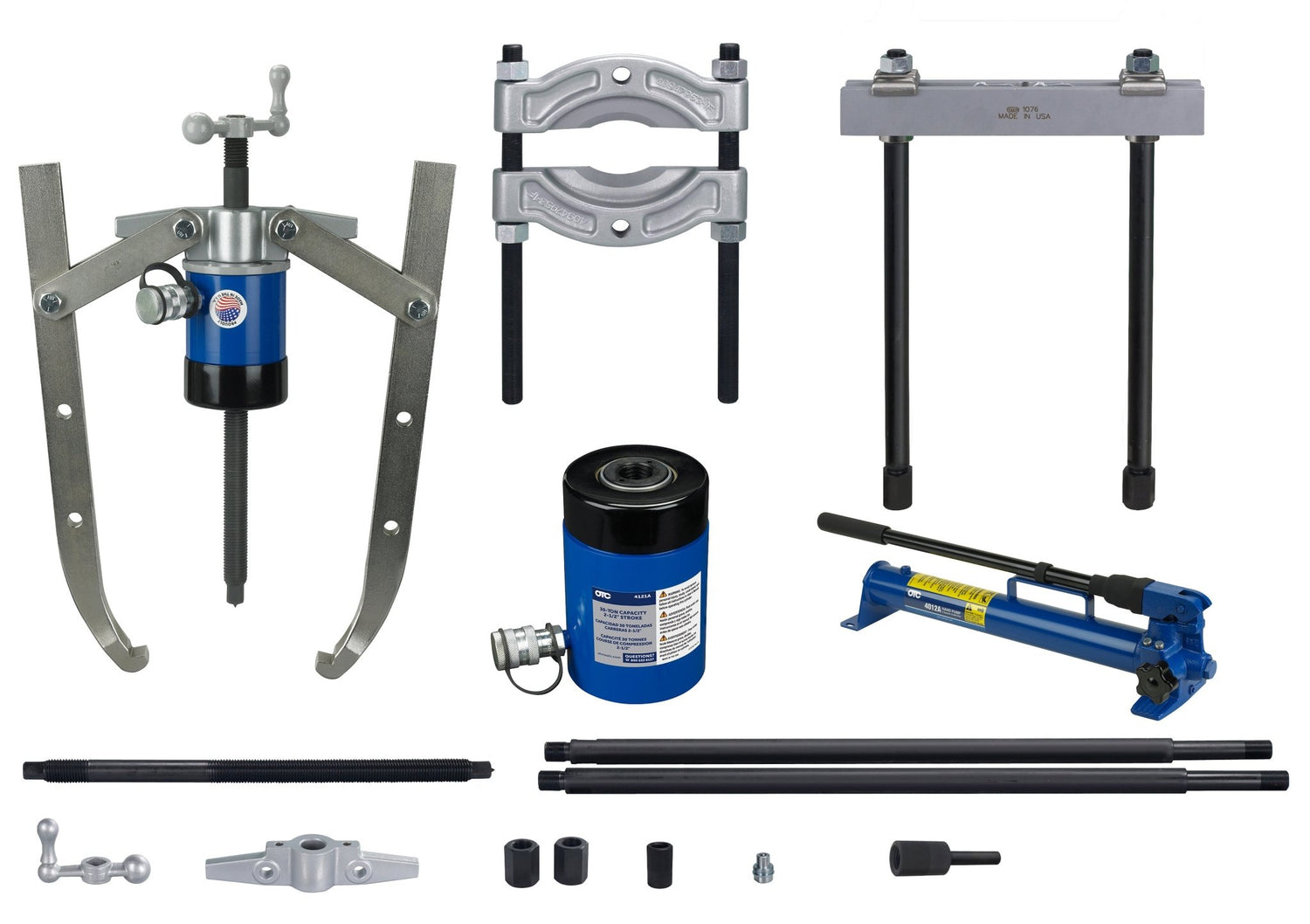

*Photo for illustrative purposes only. For complete set contents, see chart below.

Hydraulics:

• P/N 4012A - Single-stage hydraulic hand pump assembly

• P/N 4008 - 2-stage hydraulic hand pump w/ 3-way control valve

• P/N 9650 - 2-stage hydraulic hand pump w/ 3-way control valve (2)

• P/N 9798 - Hose half coupler with dust cap (2)

• P/N 9767 - 6 ft. hydraulic hose (2)

Rams:

• P/N 4120A - 17-1/2 ton ram w/ threaded insert

• P/N 4121A - 30 ton ram w/ threaded insert

• P/N 4122A - 50 ton ram w/ threaded insert

Pullers:

• P/N 1027 - 5-ton capacity 2/3-jaw puller

• P/N 1062 - 17-1/2 ton capacity hydraulic push-puller w/ 16-1/2" legs

• P/N 1105 - 22-1/2" legs for p/n 1062 (pair)

• P/N 1106 - 9-1/2" legs for p/n 1062 (pair)

• P/N 1107 - 4-1/2" legs for p/n 1062 (pair)

• P/N 1070 - 30-ton capacity hydraulic push-puller w/ 18" legs

• P/N 1109 - 8" legs for p/n 1070 (pair)

• P/N 1111 - 28" legs for p/n 1070 (pair)

• P/N 1076 - 50-ton capacity hydraulic push-puller w/ 24" legs

• P/N 1113 - 34" legs for p/n 1076 (pair)

• P/N 1066 - 17-1/2 ton 3-jaw Grip-O-Matic puller

• P/N 41224 - 17-1/2 ton 2-jaw puller head

• P/N 1074 - 30-ton 3-jaw hydraulic puller

• P/N 1080 - 50-ton 3-jaw hydraulic puller

• P/N 50449 - 50-ton 2-jaw puller head

• P/N 1037 - Combination 2/3-jaw puller

• P/N 41226 - 30-ton 2-jaw puller head

• P/N 43892 - Long jaws for p/n 1037 (3)

• P/N 1041 - Combination 2/3-jaw puller

• P/N 30902 - Long jaws for p/n 1041 (3)

Accessories:

• P/N 8005 - 5/8"-18 F x 3/8"-16 M threaded adapter (2)

• P/N 8006 - 5/8"-18 F x 1/2"-20 M threaded adapter (2)

• P/N 8007 - 5/8"-18 F x 1/2"-13 M threaded adapter (2)

• P/N 8010 - 5/8"-18 F x 5/8"-11 M threaded adapter (2)

• P/N 8013 - 5/8"-18 F x 3/4"-16 M threaded adapter (2)

• P/N 8015 - 5/8"-18 F x 3/4"-10 M threaded adapter (2)

• P/N 8017 - 5/8"-18 F x 7/8"-14 M threaded adapter (2)

• P/N 8018 - 5/8"-18 F x 7/8"-9 M threaded adapter (2)

• P/N 8019 - 5/8"-18 F x 1"-14 M threaded adapter (2)

• P/N 8020 - 1"-8 F x 5/8"-18 M threaded adapter (1)

• P/N 8021 - 1"-8 F x 1"-14 M threaded adapter (1)

• P/N 8012 - 1"-14 F x 5/8"-18 M threaded adapter (2)

• P/N 8025 - 1-1/4"-7 F x 5/8"-18 M threaded adapter (2)

• P/N 8027 - 1-1/4"-7 F x 1"-14 M threaded adapter (2)

• P/N 8023 - 1-1/4"-12 F x 1"-14 M threaded adapter (2)

• P/N 8024 - 1-1/4"-12 F x 1-3/4"-12 M threaded adapter (2)

• P/N 8028 - 1-5/8"-5-1/2 F x 1"-8 M threaded adapter (1)

• P/N 8029 - 1-5/8"-5-1/2 F x 1"-14 M threaded adapter (1)

• P/N 8036 - 1"-14 F x 1"-14 F threaded adapter (2)

• P/N 8038 - 5/8"-18 F x 3/4"-16 F threaded adapter (2)

• P/N 8056 - Shaft protector set

• P/N 8075 - Step plate adapter set

• P/N 679 - Pulley pulling attachment

• P/N 680 - Pulley pulling attachment

• P/N 8044 - Internal threaded adapter set

• P/N 1154 - Bearing cup pulling attachment

• P/N 32136 - Long jaws for p/n 1154 (2)

• P/N 1166 - Bearing cup pulling attachment

• P/N 34479 - Reducing adapter for use with p/n 1166

• P/N 1122 - Bearing Splitter

• P/N 1123 - Bearing Splitter

• P/N 1126 - Bearing Splitter

• P/N 1127 - Bearing Splitter

• P/N 1128 - Bearing Splitter

• P/N 1130 - Bearing Splitter

• P/N 24814 - Speed Crank

• P/N 24815 - Tee adapter

• P/N 24832 - Special puller forcing screw

• P/N 27198 - Speed crank

• P/N 29595 - Speed crank

• P/N 28228 - Ram cap

• P/N 28229 - Ram cap

• P/N 28230 - Ram cap

• P/N 32118 - Ram adjusting screw

• P/N 32698 - Ram adjusting screw

• P/N 34758 - Ram adjusting screw

• P/N 34510 - Pushing adapter

• P/N 34755 - Pushing adapter

• P/N 201923 - Pushing adapter

Specifications:

• Dimensions | 5 × 4 × 21

• Weight | 1260 lb
