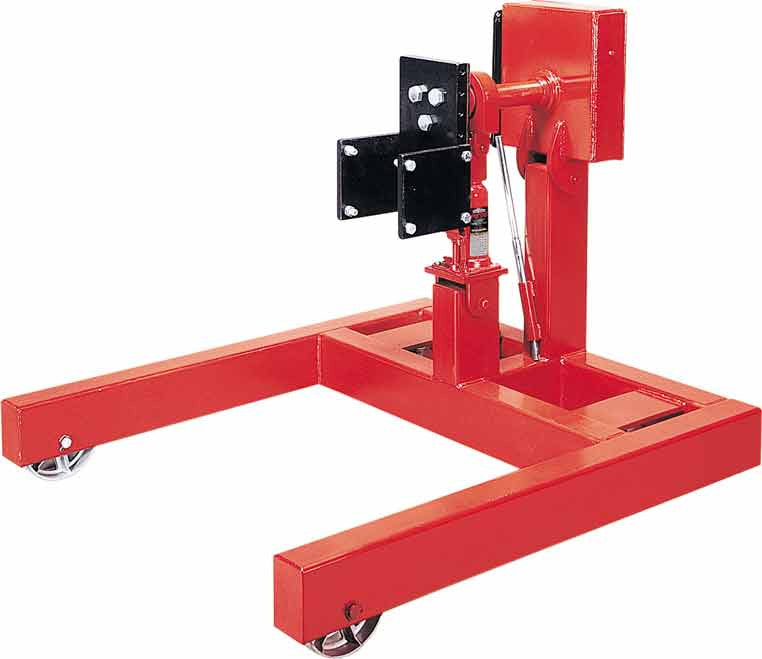

Norco 78160 3 Ton Motor Stand

For safe handling and positioning of most diesel engines.

Features:

• Mounting head tilts for engine clearance in 360 degree rotation.
• 95 to 1 worm gear drive and long handle provide easy engine rotation.
• Floor lock keeps stand from moving during repairs.
• Universal adapter included.

Dimensions:

• Length | 54.25"
• Width | 50"
• Height | 45"
• Front Wheel Dia. | 7"
• Rear Wheel Dia. | 5.75"
• Rotational Clearance |
• From Mtg. Head to Ground | 35.25" to 43.25"
• Shipping Weight | 631 lbs.

Optional engine and transmission mounting adapters:

• 78162: Detroit Diesel Engine Adapter for 53, 71, and 92 Series Engines.
• 78163: Cummins Engine Adapter for a Wide Range of Cummins Engines Including:
• NH, NTC, NTE, N14 855, V6 378; 504, 555, and V8 903; In-Line 6 KT 1150M. L10 (Now ISL).
• 78164: Caterpillar Engine Adapter for In-Line 6 models: 1673, 1674, 1693, 3306, & 3406 engines. V8 models: 1100, 3208, and 3408.
• 78165: IH and Ford Engine Adapter for International Harvester engines: DT-466 In-Line 6 DV-550, MV-404, MV-446, V304, V435, V392, 4-152, 4-194, 4-196, 9.0 liter V8. Ford 6.9L and 7.3L Engines.
• 78166: Mack Engine Adapter for the following In-Line Six Cylinder Engine Series: 672, 673, 675, 711.
• 78167: Detroit Allison Transmission Adapter for AT, MT, VS, VH, and V730.
• 78168: Detroit Diesel Engine Adapter for V6 and V8, Series 71 Engines.
• 78169: Caterpillar Engine Adapter for 3114, 3116, 3176 (Truck or Marine).
• 78170: Mack Engine Adapter for V8 1000, E6 and E7 In-Line 6 Cylinder Engines.
• 78172: Volvo Engine Adapter for TD67 (developed 1964), TD71 (developed 1984) Engines.
• 78173: Detroit Allison Transmission Adapter for HT740D, HT750, HT750CT, CLBT, CR/DR.
• 78174: Ford New Holland Adapter for 6.6L and 7.8L Engines.
• 78175: Cummins Engine Adapter for ISX15
• 78177: Cummins “B” Series Engine Adapter for 5.9L Inline 6 Cylinder Engines 16
• 78178: Cummins “C” Series Engine Adapter for 8.3L Inline 6 Cylinder Engines

This Norco diesel engine stand ships by truck and extra shipping charges will apply to ship to a non-commercial address.

Click Links Below For Additional 78160 Information:

• 78160 Operations Manual
• 78160 Exploded Drawing
• 78160 Sell Sheet
