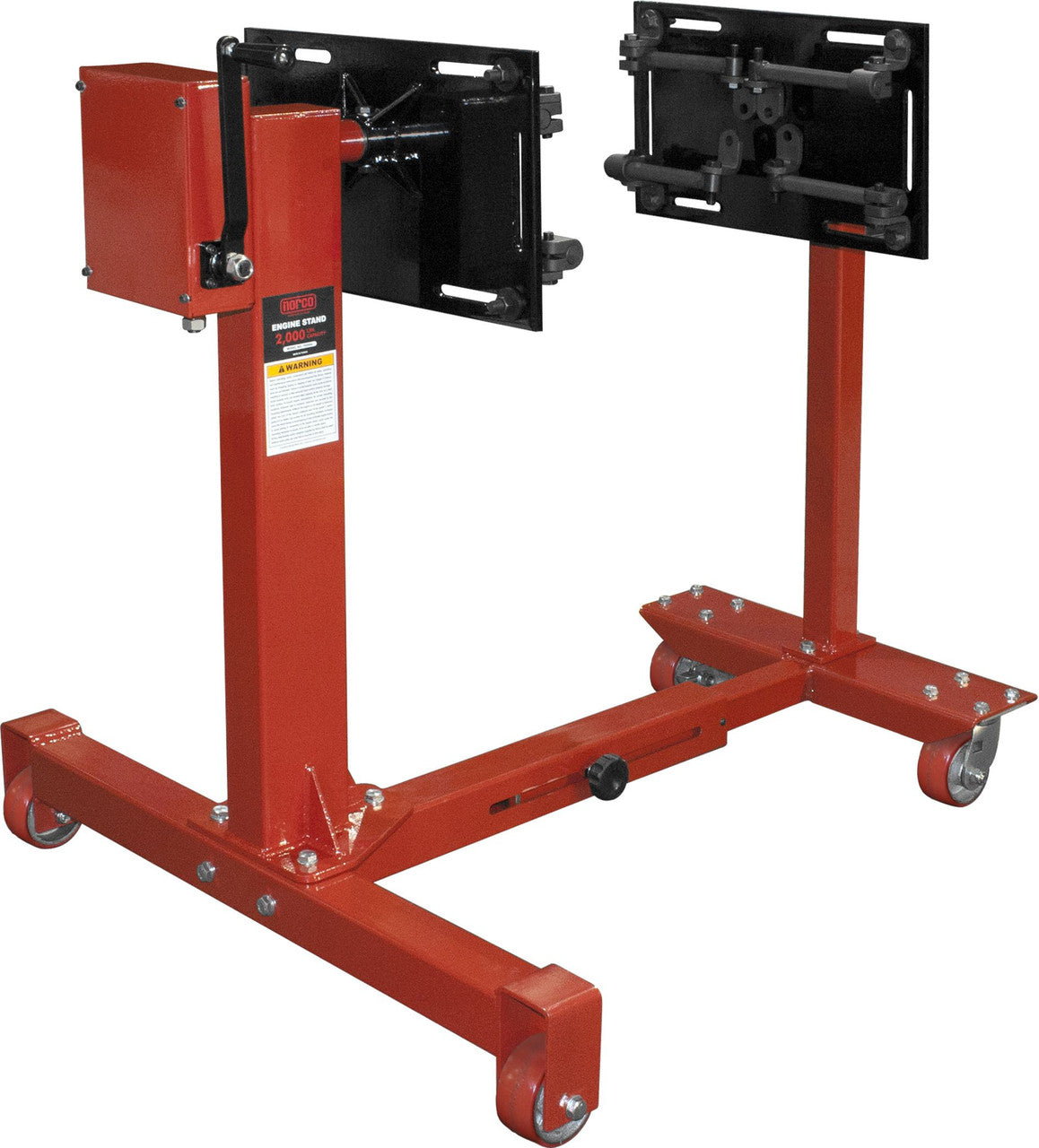

Norco 78230 2,000 Lbs. Capacity Engine Stand

The Norco 78230 A twin-post design made for use with automobile, light-duty truck, and medium-duty truck engines and transmissions.

Features:

• 75:1 ratio gearbox activated by hand crank easily turns the 360 degree rotating head to the desired work position.

• Two rigid wheels in back and two swivel caster wheels in front provide maximum stability and support. One locking caster wheel secures the stand in the desired work location.
• Polyurethane wheels provide protection for expensive tile and epoxy floors.
• Includes two universal mounting plates, rotating shaft, eight fully adjustable arms and all the related mounting hardware.
• Rotating shaft with mounting plate telescopes inside the post receiver for fine adjustment when mounting ends or sides of engines. Mounting plates can be adjusted 36-1/4” apart.

Specifications:

• Height | 42"

• Width | Front 21.25" / Rear 40"

• Length | From 38.25" To 53.25"

• Shipping Weight | 350 lbs.

Optional adapters available:

• 78201: Ford 6.0L and 6.4L Engine Mounting Adapter
• 78202: Ford 6.2L Engine Mounting Adapter
• 78203A: Ford 6.7L Engine Mounting Adapter
• 78208: Dodge Cummins Engine Mounting Adapter
