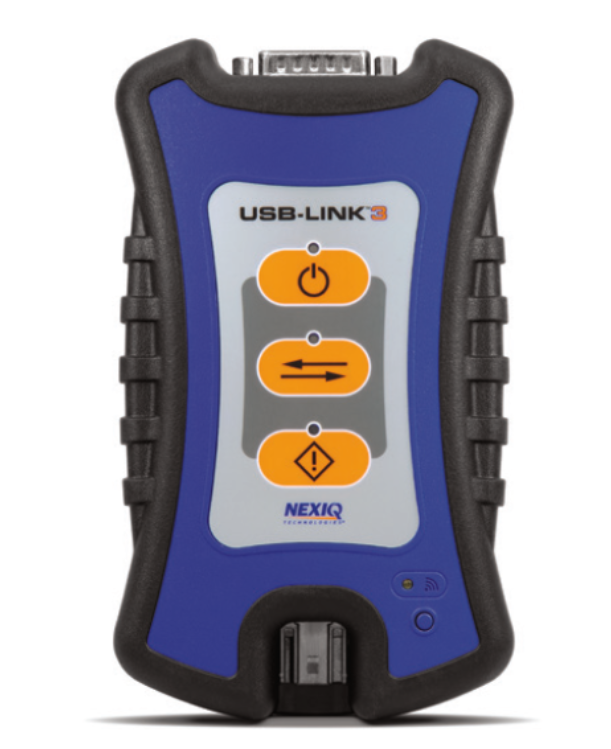

Nexiq 121054 USB-Link 3: Wired

The USB-Link 3 Wired Edition connects to your PC, tablet, or smartphone via USB, allowing direct device connections for fieldwork or signal interruptions. Compatible with the latest protocols (CAN FD, DoIP) and a wide range of OEM diagnostics software, the USB-Link 3 is our most advanced VCI yet.

Unlock the full potential of your diagnostic tools with the Wired USB-Link 3, designed for faster data transfer and seamless connectivity.

The USB-Link 3 carries the largest number of OEM approvals in the commercial vehicle market today including:

• Daimler Truck North America

• International Motors

• PACCAR Inc.

• Allison Transmission

• Cummins Engine

• Eaton Transmission

• WABCO/ZF

• JCB Excavators

• John Deere

• Kubota Engine

• Manitou


The USB-Link 3 comes with the following:

• NEXIQ USB-Link 3 (Wired)

• 9-Pin Deutsch Adapter, 1 Meter (NQ493128)

• J1962 Adapter (16-Pin OBD II) - 1 Meter (NQ491113)

• Latching USB Cable (NQ404032)


Vehicle Network Protocol Support

• CAN FD / J1939 FD / ISO15765 FD - 250K, 500K, 1M b/s with auto baud detection

• Single wire CAN (SWCAN)

• ISO 11898-3 Fault Tolerant CAN (FTCAN)

• Diagnostics Over Internet Protocol (DoIP)

• J1708

• J1850 VPW (Class 2)

• J1850 PWM (SCP)

• ISO 9141 / KWP2000 (ISO 14230) K/L line

• ALDL 9600 and 8192 baud

• ATEC 160 baud


Windows Vehicle Communication API

• RP1210 a/b/c/d

• J2534 (2004 draft)

• J2534-1 partial implementation (commercial vehicle-focused)


Operating System Compatibility

• iOS

• Android

• Windows 10, 11


Interfaces to Computing Platforms

• USB 2.0 (vehicle-to-PC connectivity)

Accessories:

405001 Bluetooth USB Adapter | Bluetooth Adapter for Wireless Connectivity
493148 6 and 9-Pin Deutsch Adapter | Standard adapter for most heavy-duty vehicles
404032 Latching USB Cable | Latching USB Cable
493013 J1962 Adapter (16-Pin OBD II) | 16-pin J1962 (OBD II) adapter for use with the USB-Link 2 and USB-Link 3
493028 9-Pin Deutsch Adapter | Standard 9-pin Deutsch for use with the USB-Link 2 and USB-Link 3
493001 9-Pin Deutsch Adapter, Locking | 9-pin Deutsch locking adapter for use with the USB-Link 2 and USB-Link 3
493101 9-Pin Deutsch Adapter, Locking (1 Meter) | Standard 1 meter, locking 9-pin Deutsch adapter
494024 6-Pin Deutsch Adapter | Standard 6-pin Deutsch adapter
493015 CAT 9-Pin Adapter | 9-pin locking adapter for use with older CAT engines
493014 9-Pin Deutsch Caterpillar T Adapter | 9-pin Deutsch Caterpillar "T" adapter for use with the USB-Link 2 and USB-Link 3
493007 DDEC Marine Adapter, Locking | Locking adapter for use with Detroit Diesel marine applications
493022 Volvo 14-Pin Adapter | 14-pin adapter for use with Volvo trucks
493020 Volvo 8-Pin Adapter | 8-pin adapter for use with Volvo trucks
493126 26-Pin 1 Meter Data Cable | 26-Pin extension data cable for use with the USB-Link 2 and USB-Link 3
493033 3-Pin Deutsch, 2-Pin Cummins Adapter | For use with Cummins engines with either a J1939 3-pin Deutsch or a 2-pin adapter
408002 6-Pin to 9-Pin Deutsch Adapter (8 inches) | 6-Pin to 9-Pin Deutsch Adapter
499021 Komatsu 12-Pin Adapter | For use with the USB-Link 2 and USB-Link 3
499012 8-Pin AMP Adapter | Replaces PN401012
493128 9-Pin Deutsch Adapter - 1 Meter | Standard 1 Meter, 9-pin Deutsch for use with the USB-Link 2 and USB-Link 3
493113 1 Meter J1962 Adapter (16-Pin OBD II) | 1 Meter J1962 Adapter (16-Pin OBD II)
