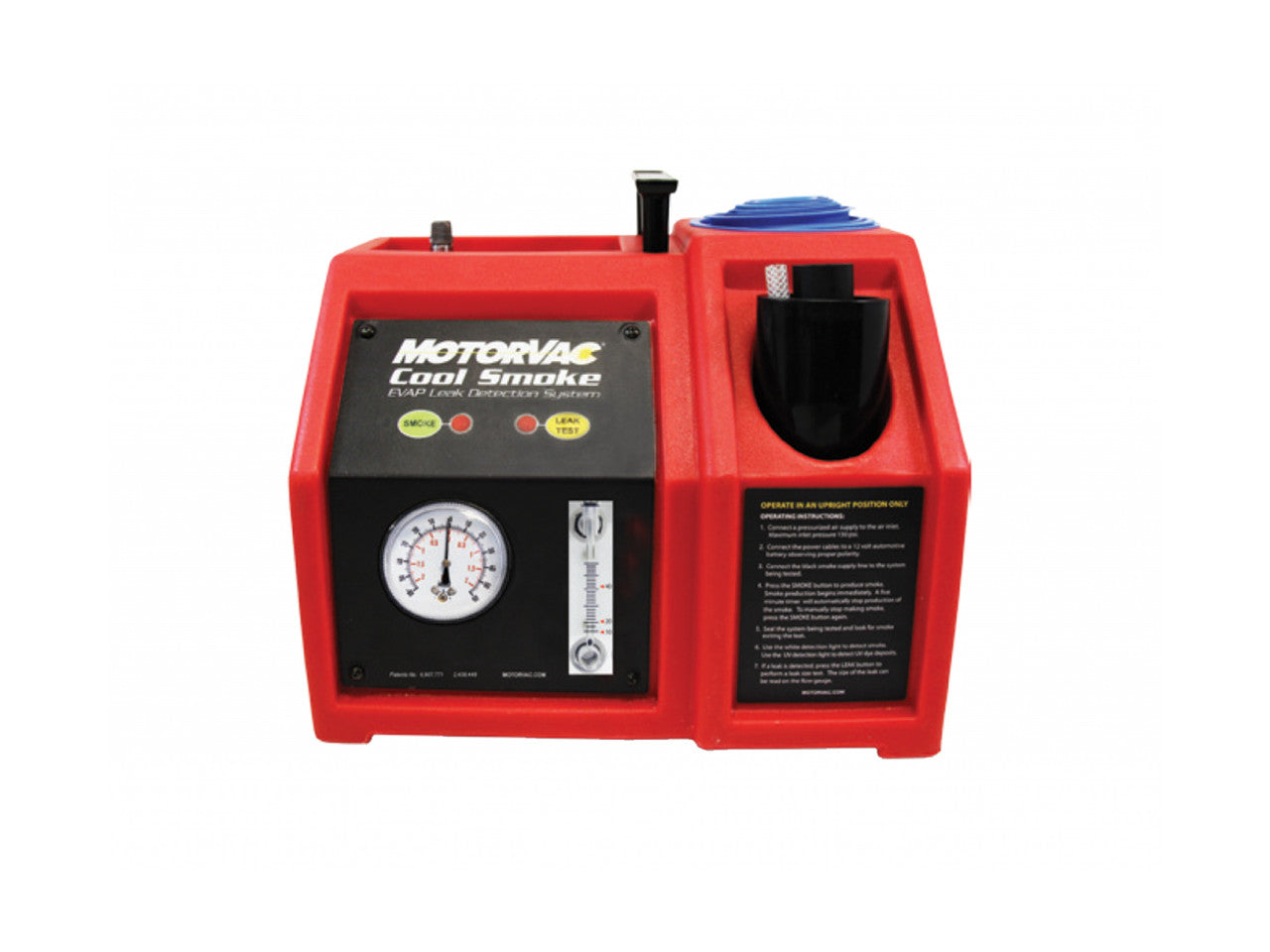

MotorVac 500-0100 CoolSmoke EVAP Smoke Machine

The next generation of EVAP Leak Detection

The patented ‘Cool Smoke’ process does not use a heat source to generate it’s UV dye enhanced smoke. No heat source means the machine produces a high-density smoke immediately. The MotorVac Cool Smoke machine features a dual-mode leak detection feature. Provides the option of testing for leaks with or without smoke at the push of a button.

Features:

• Pressure and vacuum leak diagnostics with instant smoke solution containing UV enhanced dye
• Two ways to spot the leak
• Does not use heat to create smoke
• Using 0.5psi pressure control, Cool Smoke has the highest flow rate of any smoke machine
• Instant, high performance vapor enriched with UV dye
• Ready for future EVAP Systems
• Rugged housing and built-in adapter storage
• Uses 12 volt DC with only 1 amp draw rate

Specifications:

• Model | Cool Smoke
• Input | 12 VDC 0.75A
• Machine Dimensions:
• Height | 29.2 cm (11.5”)
• Width | 34.3 cm (13.5”)
• Depth | 28 cm (11”)
• Carton Dimensions:
• Height | 35.6 cm (14”)
• Width | 35.6 cm (14”)
• Depth | 30.5 cm (12”)
• Shipping Weight | 8 kg (18.5 lbs)
• New Fluid Capacity | 120 mL (4 fl oz)
• Waste Tank Capacity | N/A
• Length of Power Cord | 3 m (10 ft)
• Length of Hose | 3 m (10 ft)
• Warranty | One Year
