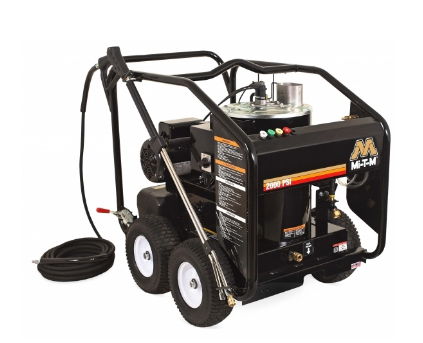

Mi-T-M HSE-2003-0MG10 HSE Series

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for the efficiency and longevity, they feature a top fired heat exchanger that is completely accessible for troubleshooting.

Features:

• Pump | Forged brass manifold · Thermal relief valve · High pressure detergent injector

• Motor | Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord

• Frame | Reinforced powder coated steel tube frame with center balanced lift · Convenient gun/wand holder and hose wrap · 13-inch flat-free tires

• Components | Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

• Miscellaneous | Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

• Unit Includes | Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance

Specifications:

• PSI | 2000
• GPM | 2.8
• Horsepower/Motor | 4.0 HP, 230V, 1Ø, 18.0A

• Pump | General

• Plug Type | NEMA 6-20P

• Burner Fuel Tank Cap. |4.0 gallon

• Burner Fuel Cons. | 1.48 gph

• BTU Per Hour | 207,200

Weights & Dimensions:

• Net Weight | 316 lbs.

• Shipping Weight | 439 lbs.

• Length | 43 in.

• Width | 29.5 in.

• Height | 36.5 in.

Options (Sold Separately):

Options - must be ordered with unit and cannot be added later.

• HX-0233 Adjustable Thermostat| Operator is able to adjust outlet water temperature between 98°-248°F
• HX-0235 Hour Meter | Displays the number of hours unit has been in operation
• HX-0240 300°F Steam | Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
• HX-0243 Auto Start/Stop | When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
• HX-0244 Time Delay Shutdown | Timer will shut unit off automatically when trigger gun is released and timer reaches setting

Limited Warranties:

• 1 year electric motor

• 3 year coil

• 7 year General and Mi-T-M pumps

Certification:

CSA Certified - US and Canada
