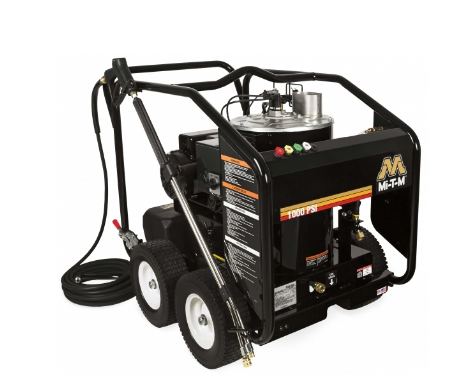

Mi-T-M HSE-1002-0MG10 HSE Series

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for the efficiency and longevity, they feature a top fired heat exchanger that is completely accessible for troubleshooting.

Features:

Pump | Forged brass manifold · Thermal relief valve · High pressure detergent injector · Direct or belt drive triplex piston General or Mi-T-M pump with ceramic plungers · Stainless-steel and brass unloader
Motor | Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord
Frame | Reinforced powder coated steel tube frame with center balanced lift · Convenient gun/wand holder and hose wrap · 13-inch flat-free tires
Components | Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous | Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes | Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance

Specifications:

PSI | 1000
GPM | 2.0
Horsepower/Motor | 1.5 HP, 120V, 1Ø, 15.0A
Pump | General
Plug Type | NEMA 5-15P
Burner Fuel Tank Cap. | 4.0 gallon
Burner Fuel Cons. | 1.33 gph
BTU Per Hour | 186,000

Weights & Dimensions:

Net Weight | 295 lbs.
Shipping Weight | 418 lbs.
Length | 43 in.
Width | 29.5 in.
Height | 36.5 in.

Miscellaneous:

Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F HSE Series | Electric Direct/Belt Drive

Unit Includes:

Quick connect nozzles – 0°, 15°, 25° and 40°
50-foot x 3⁄8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors
Adjustable pressure insulated dual lance
Insulated trigger gun with safety lock-off

Options (Sold Separately):

Options - must be ordered with unit and cannot be added later

HX-0232 300°F Steam | Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F

HX-0235 Hour Meter | Displays the number of hours unit has been in operation

HX-0308 Adjustable Thermostat | Operator is able to adjust outlet water temperature between 86°-248°F

Limited Warranties:

7 Year Pump
1 Year Electric Motor
3 Year Coil
